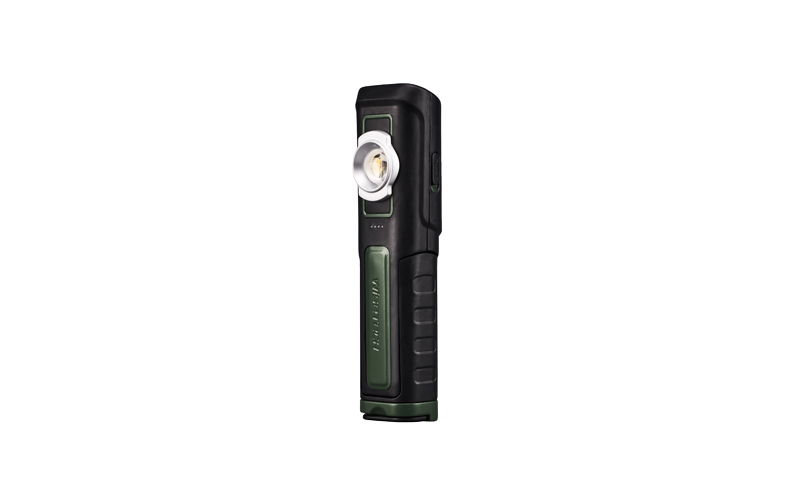

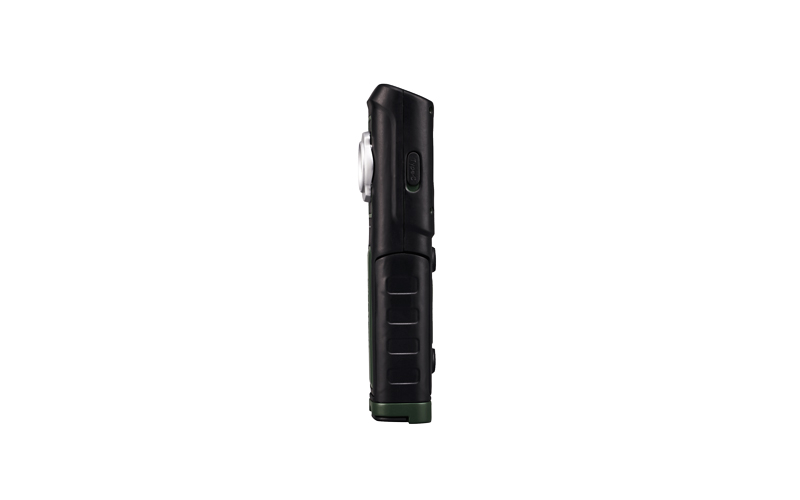

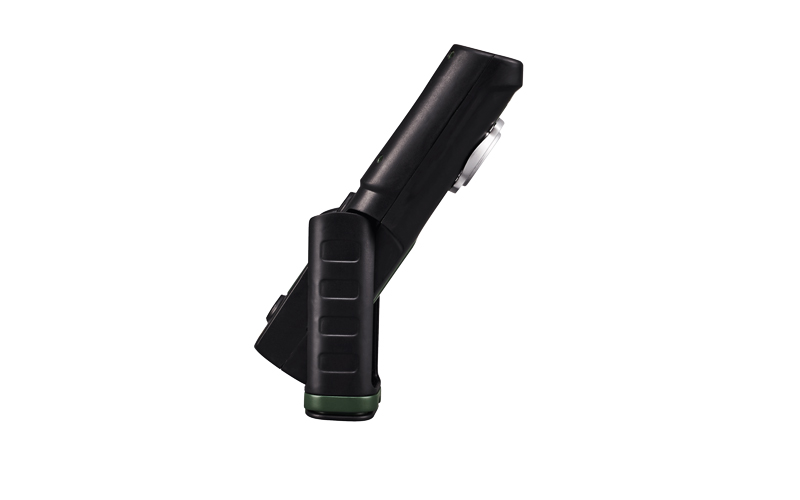

Engineering TPR coated shell makes the inspection lamp lightweight, strong and durable. 270 degrees adjustable bracket is ergonomic and supports 9 vertical angles of the lamp body.

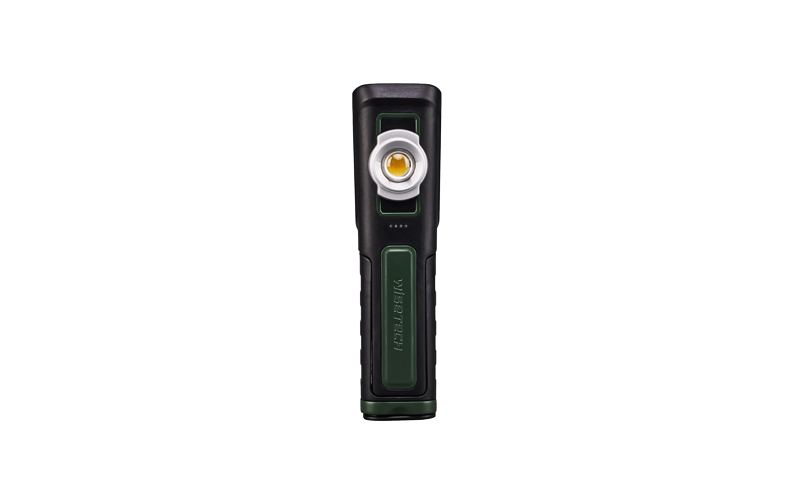

Dual light source design – Large circular COB with lens design on the front, focus and bright, luminous flux is up to 600 lumen, long pressing the switch for dimming from 100 to 600 lumen. Top SMD provides a 100 lumen, can be used as a small flashlight.

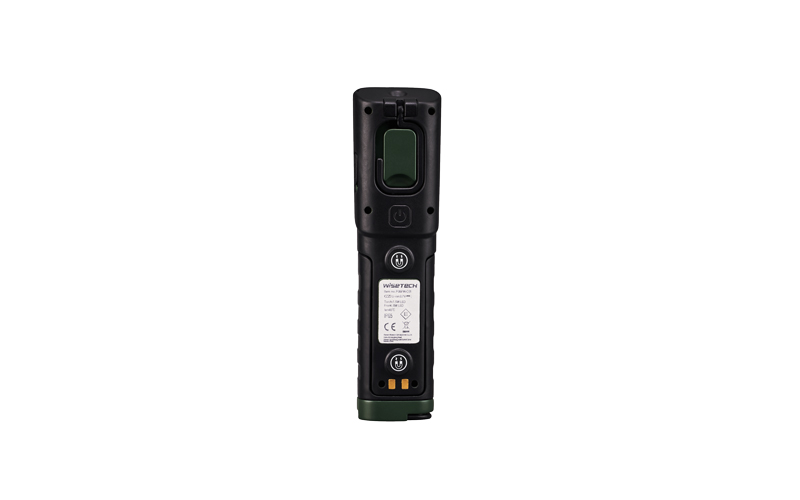

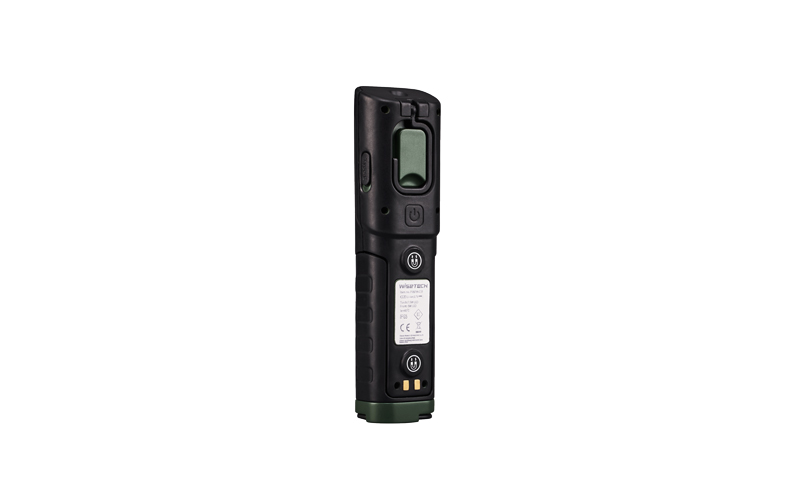

Besides the hook at rear top, there is a strong metal hook built-in the bottom, which allows the inspection lamp to be hung on in horizontal direction. The double magnets on the back and the magnets on the bottom provide the convenience of use at places where has metal plates.
4 LEDs in the front are both charging indicator and battery meter. 1 USB cable is supplied and the main charger input is 5V 2A(max.).
| Art. number | P08PM-C02 |
| Power source | COB (main) 1 x SMD(torch) |
| Rated power (W) | 6W(main) 1W(torch) |
| Luminous flux(±10%) | 100-600lm(main) 100lm(torch) |
| Color temperature | 5700K |
| Color rendering index | 80(main) 65(torch) |
| Bean angle | 84°(main) 42°(torch) |
| Battery | 18650 3.7V 2600mAh |
| Operating time(approx.) | 2.5-10H(main) 10H(torch) |
| Charging time(approx.) | 2.5H |
| Charging voltage DC (V) | 5V |
| Charging current (A) | Max.2A |
| Charging port | TYPE-C |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz |
| Charger included | No |
| Charger type | EU/GB |
| Switch function | Torch-main-off, |
| Protection index | IP65 |
| Impact resistance index | IK08 |
| Service life | 25000 h |
| Operating temperature | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C |
| Art. number | P08PM-C02 |
| Product type | handlamp |
| Body casing | ABS+TRP+PC |
| Length (mm) | 55 |
| Width (mm) | 44 |
| Height (mm) | 205 |
| N.W. per lamp (g) | 310g |
| Accessory | Lamp, manual,1m USB -C cable |
| Packaging | color box |
| Carton quantity | 25 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
N/A
Q: How to tell if the battery is fully charged?
A: The 4 LEDs indicators at the front all light on.
Q: What is kind of charging port?
A: Type-C.
Q: Is there a wireless charging version of this look?
A： Yes, we have both wireless and fast charging versions. Can refer to the hand lamp series or contact with us for details. Thank you.
