12W 1200 Lumen AC Hood Light 220~240V IP54

Short Description:

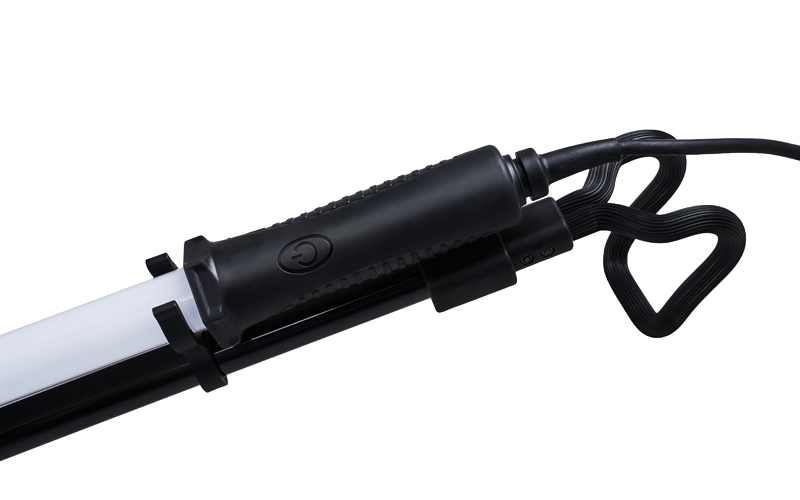

Robust design with TPR handle and cover makes the hood light is durable and resistant for falling. 26 pieces bright LEDs provides 1200 lumen output. Using H05RN-F 2×1.0mm² cable instead of PVC cable can make sure the cable quality in high and low temperature environments. Operating voltage is 220-240V~. Sealed water resistant IP54 rating for dust and water spray.

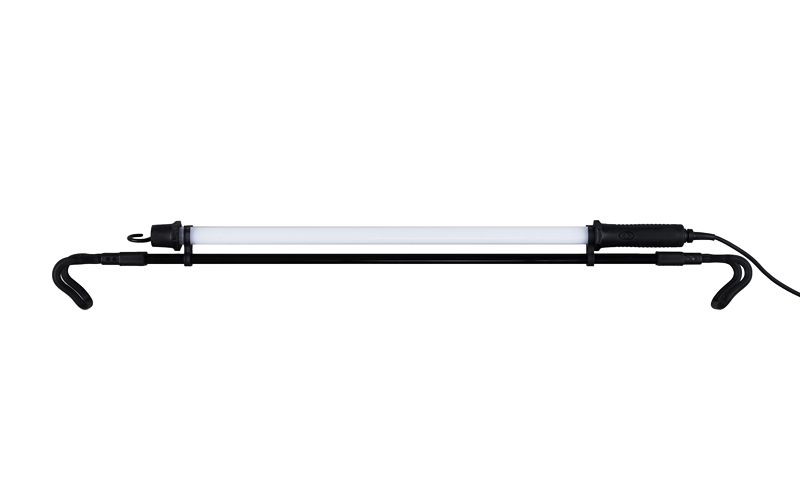

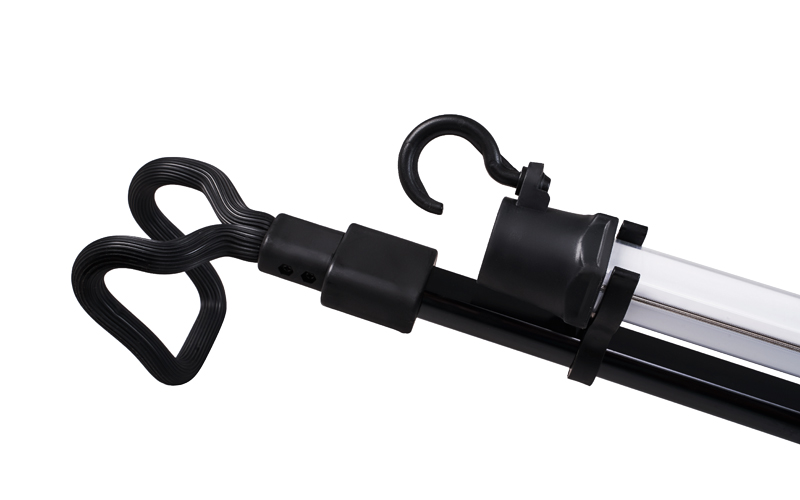

Separate magnetic holder and hang hook in top for easy positioning. 105-170cm telescopic mounting bracket is optional for the demanding of craftsman in automotive workshop while working under hood.

Product Detail

Product Tags

Product Certificate


Product Parameter

Art. number DX049
Power source 26 x SMD
Luminous flux 1200lm
Operating voltage 220- 240V AC 50/60Hz.
Rated power (W) 12W
Bean angle 110°
Color temperature 5700K
Color rendering index 70
Cable 5 meter H05RN-F2x1.0 mm²
Plug type Socket/CH/GB
Number of sockets N/A
Socket outlet type N/A
Switch function On-off
Protection index IP54
Impact resistance index IK08
Service life   25000 h
Operating temperature -20°C ~ 40°C

Store temperature:

-20°C ~ 50°C

Poduct Details

Art. number DX049
Product type Hood light
Body casing PC+TRP
Length (mm) 44
Width (mm) 50
Height (mm) 960
N.W. per lamp (kgs) 748g
Accessory Lamp, manual
Packaging color box
Carton quantity 4 in one

Product Application/Key Feature


Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port


2 meter tripod


Q: Whether it is waterproof and dust-proof?
A: Yes, it is IP54.

Q: Do you offer rechargeable hood light?
A: Yes, TG037 is rechargeable one, you can find the recommendation link.

Q: How to use the magnetic holder?
A: Clip the holder in to the diffusion tube and then absorb the hood light on the metal surface.


Other sizes in the same series: DF, other DC, AC
