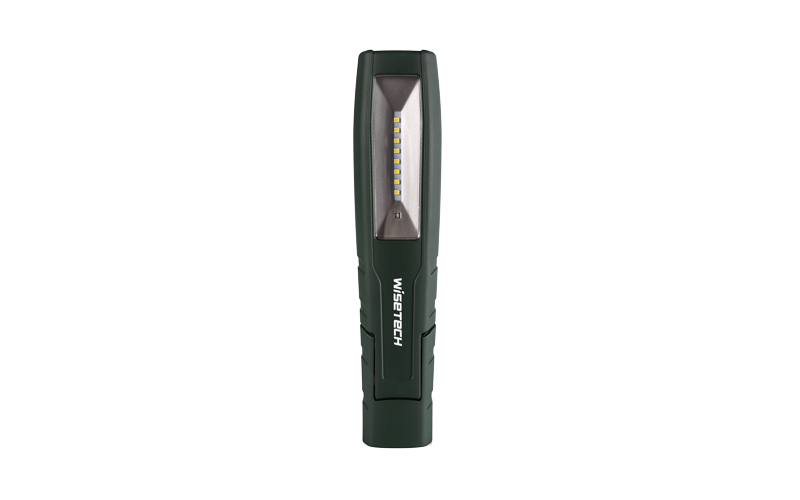

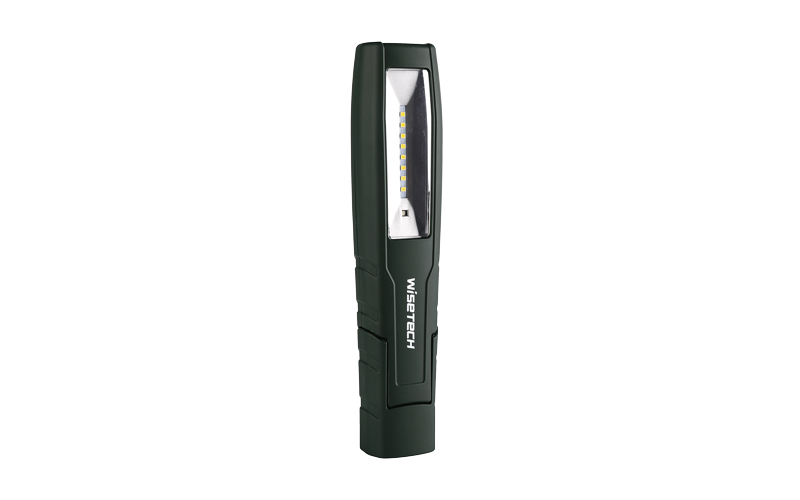

P08FO-N01 is a large-sized hand lamp with a total length of 251mm. 12 high-efficiency SMD provides a super bright light up to 1000lumen. Long press the back switch to achieve stepless dimming from 100lm to 1000lumen. Top SMD in 80 lumen as a additional flashlight.
The ABS shell and the PC light-transmitting plate makes a simple and elegant appearance. Its hand-held part is ergonomic. This hand lamp very sturdy, resistant to falling, and very suitable for professional users.

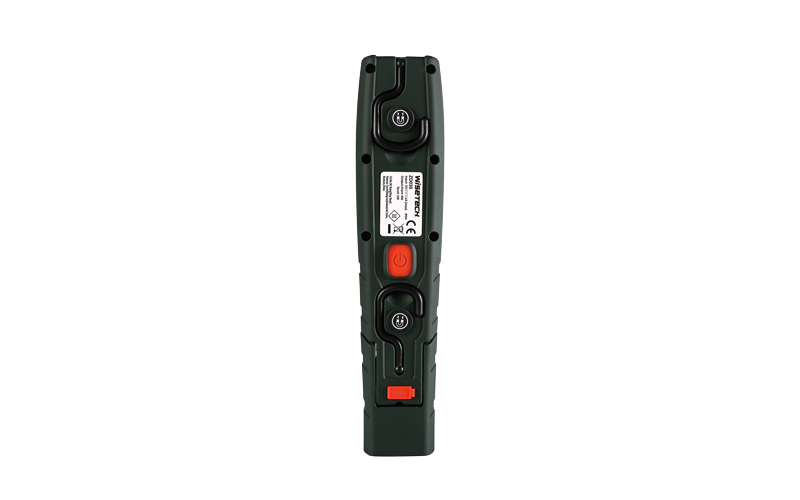

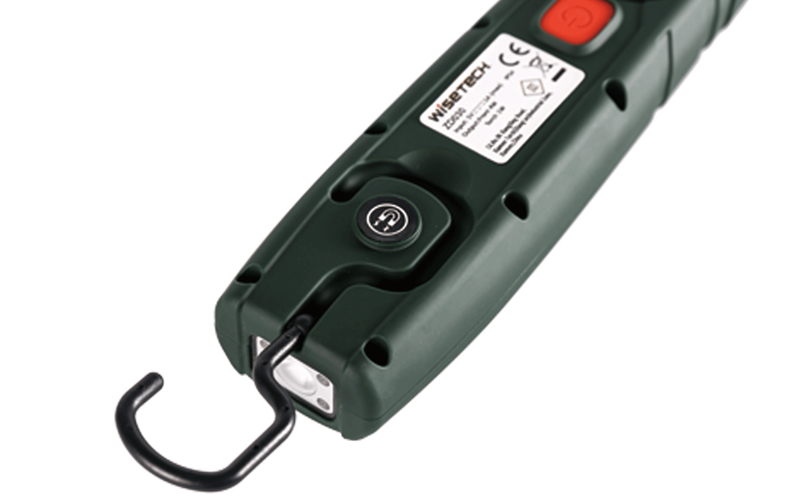

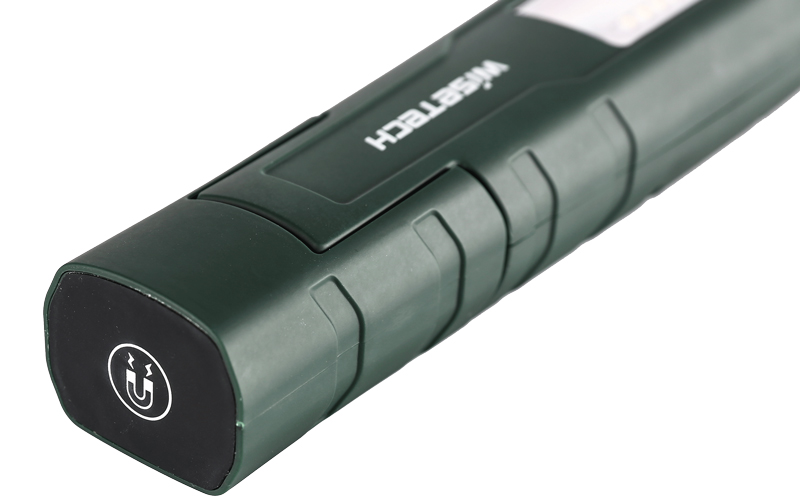

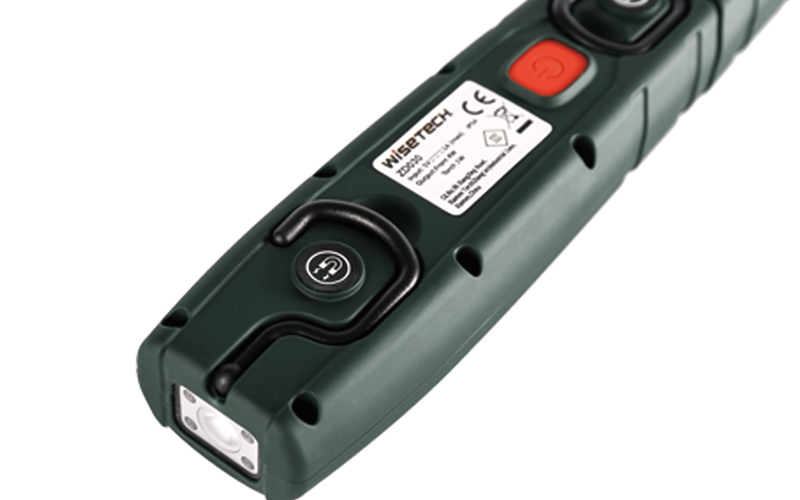

Double hooks on the back allows the lights to be hung horizontally. Meanwhile, two magnets on the rear allows the lamp to be firmly attached to a flat metal plate at any angle. The magnet base can be rotated, which meets the requirement of adjusting the use angle of the inspection lamp in the vertical direction, and also allows the lamp to be attached to a small area of metal plate for use.
1 meter USB cable is supplied and main charger is optional for need.
S90TF-CS01TH test
| Art. number | P08FO-N01 |
| Power source | 18 x SMD (main) 1 x SMD(torch) |
| Rated power (W) | 6W(main) 1.5W(torch) |
| Luminous flux(±10%) | 100-1000lm(main) 80lm(torch) |
| Color temperature | 5700K |
| Color rendering index | 80 |
| Bean angle | 110°(main) 20°(torch) |
| Battery | 18650 3.7V 2600mAh |
| Operating time(approx.) | 1.5-8H(main) 9H(torch) |
| Charging time(approx.) | 3.5H |
| Charging voltage DC (V) | 5V |
| Charging current (A) | 1A |
| Charging port | Micro USB |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz |
| Charger included | No |
| Charger type | EU/GB |
| Switch function | Torch-main-off, |
| Protection index | IP54 |
| Impact resistance index | IK08 |
| Service life | 25000 h |
| Operating temperature | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C |
| Art. number | P08FO-N01 |
| Product type | handlamp |
| Body casing | ABS+PMMA+PC |
| Length (mm) | 57 |
| Width (mm) | 40 |
| Height (mm) | 251 |
| N.W. per lamp (g) | 310g |
| Accessory | Lamp, manual,1m USB-Micro USB cable |
| Packaging | color box |
| Carton quantity | 25 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
N/A
Q: What is type of charging port?
A: Micro-USB.
Q: What angle can the stand be rotated?
A: 180 degrees at 7 positions.
