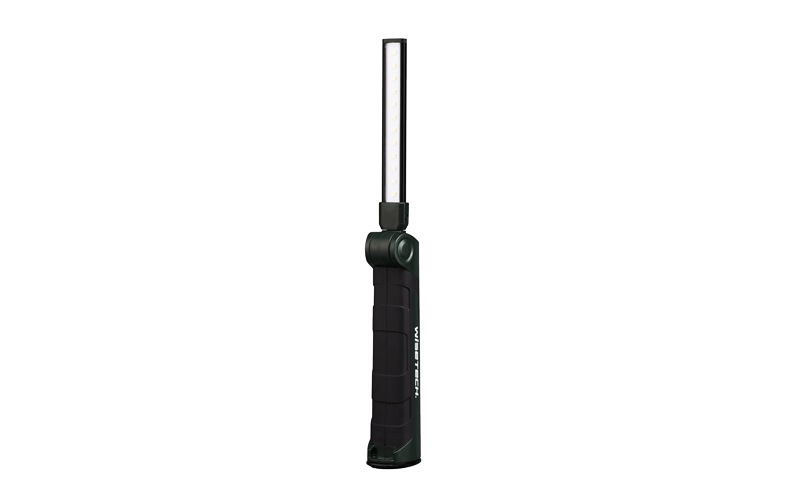

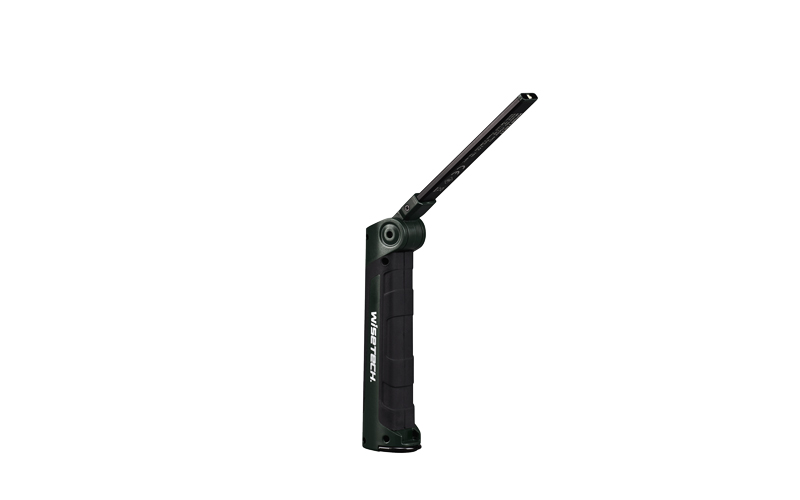

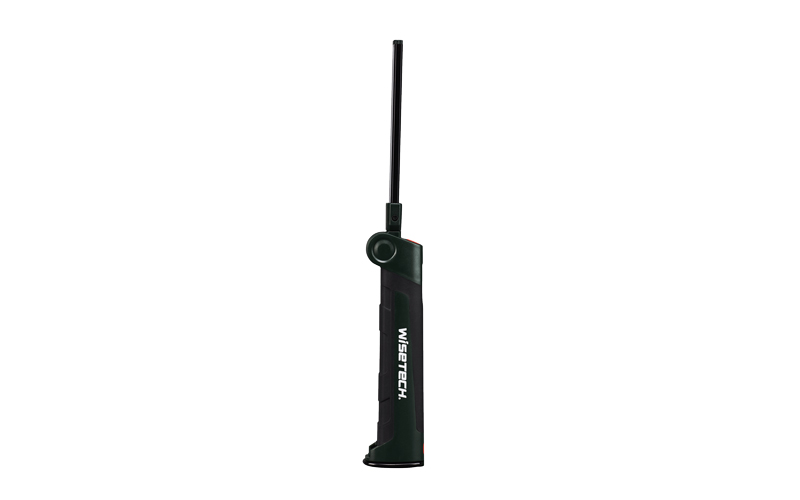

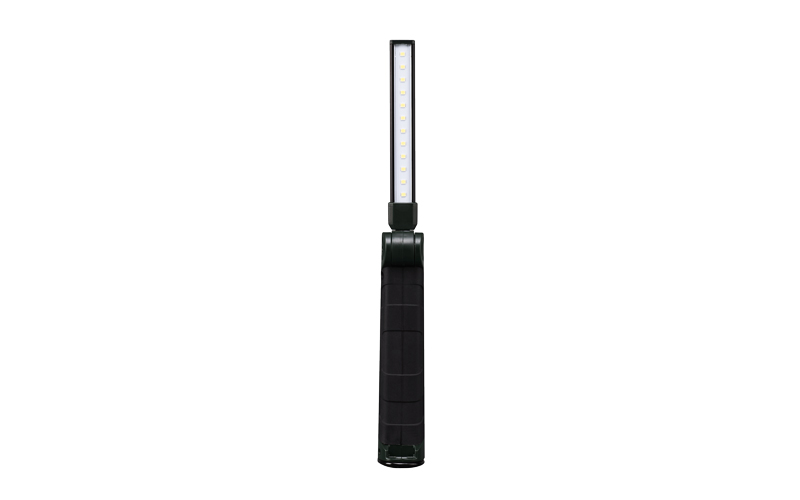

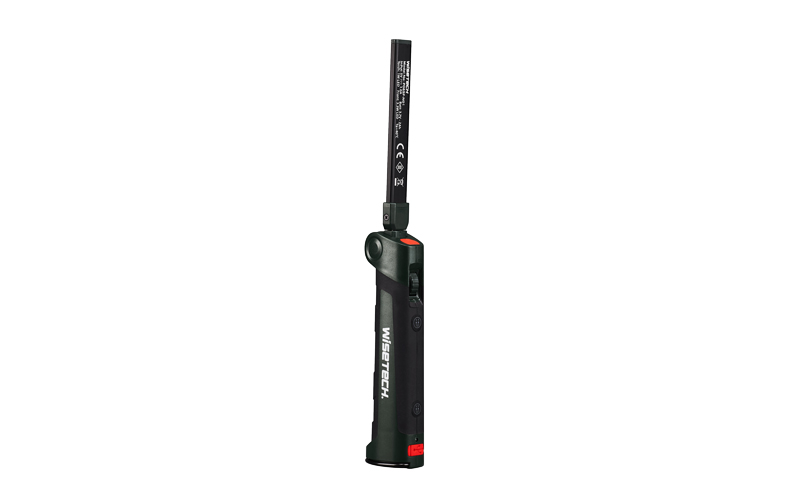

P06SF is the generation I of our slim light, which is awarded as the most popular inspection hand lamp in the UK Auto express. The metal spindle is introduced into this lamp to make sure the 20000 times life time. We have applied the invention patent for this spindle, also the OHIM patent.
The work light includes 2 light sources, 12-LED main light and 1-LED top light. The front light is dimming from 10% – 100%, max. 400 lumen. It is easily to operate by the roller switch. Separate button switch makes you can light on and off the flashing at the same time when you need.
Built-in 2000mAh lithium battery supports the main light duration for 2.5 hours at 100% and top light for 8 hours. It can be used as a night light at home. The aluminum tip is only 8mm, perfect to be used in narrow places which the normal light can’t reach.
| Art. number | P06SF-N01 |
| Power source | 12 x SMD (main) 1 x SMD(torch) |
| Rated power (W) | 3.3W(main) 1W(torch) |
| Luminous flux(±10%) | 40-400lm(main) 70lm(torch) |
| Color temperature | 5700K |
| Color rendering index | 80 |
| Bean angle | 117°(main) 113°(torch) |
| Battery | 18650 3.7V 2000mAh |
| Operating time(approx.) | 2.5-10H(main), 8H(torch) |
| Charging time(approx.) | 3H |
| Charging voltage DC (V) | 5V |
| Charging current (A) | 1A |
| Charging port | Micro USB |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz |
| Charger included | No |
| Charger type | EU/GB |
| Switch function | Torch-off, |
| Protection index | IP20 |
| Impact resistance index | IK07 |
| Service life | 25000 h |
| Operating temperature | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C |
| Art. number | P06SF-N01 |
| Product type | handlamp |
| Body casing | ABS+Aluminum+TRP+PMMA |
| Length (mm) | 34 |
| Width (mm) | 42 |
| Height (mm) | 300 |
| N.W. per lamp (g) | 220g |
| Accessory | Lamp, manual,1m USB-Micro USB cable |
| Packaging | color box |
| Carton quantity | 25 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
N/A
Q: Does this lamp come along with a charging cable?
A: Yes, 1m type-C cable is the standard shipping package.
Q: What is OHIM patent?
A: It is a kind of appearance patent for EU market.
Q: Will there be a problem with the roller switch after the lamp has been used for a period of time?
A: Till now, we did’t get the claim about this point.
