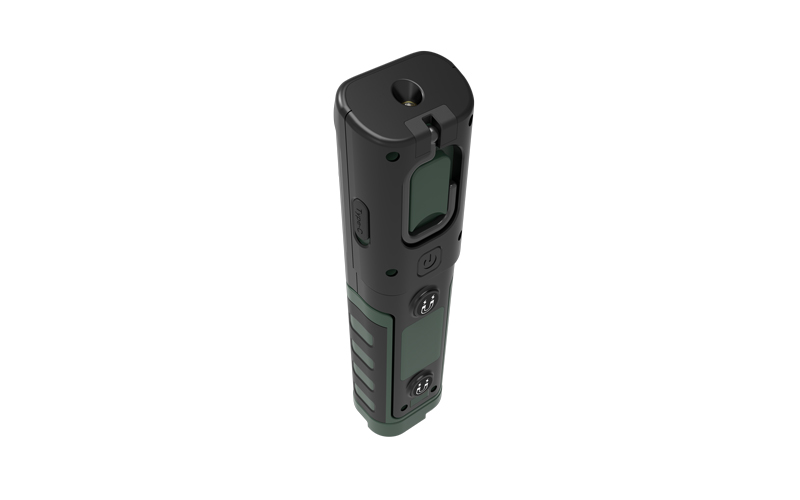

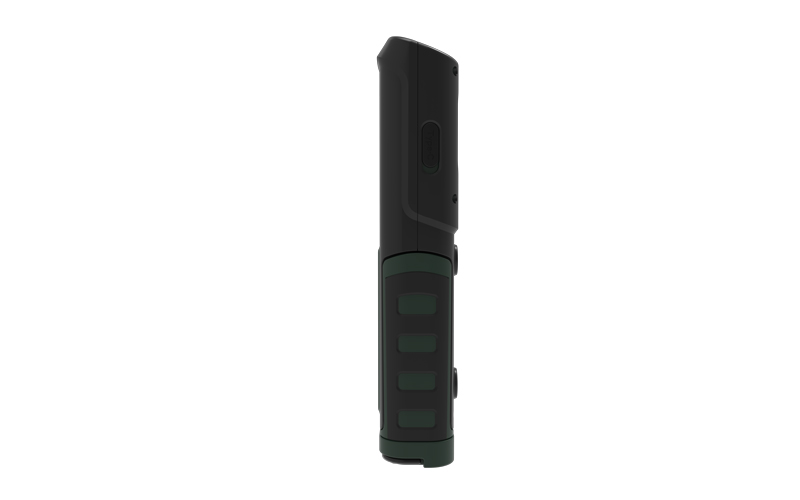

This hand lamp is designed to provide a suitable lighting tool for workers in different fields.T he whole lamp is made of high-strength plastic and covered with TPR, which is waterproof and dustproof, firm and anti-drop. A square plane is reserved on the front for printing the brand logo. Different color schemes are available to support customization.

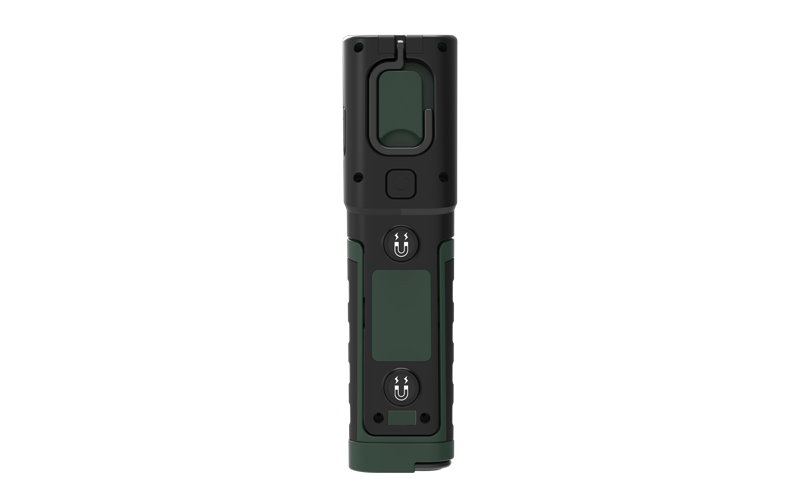

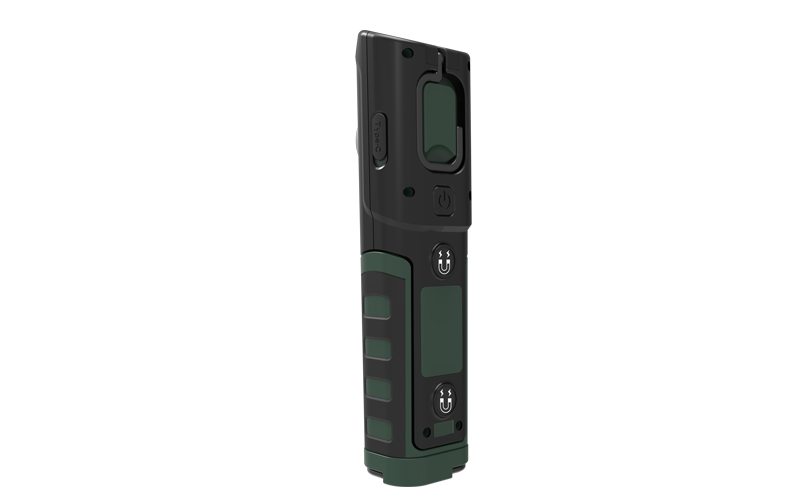

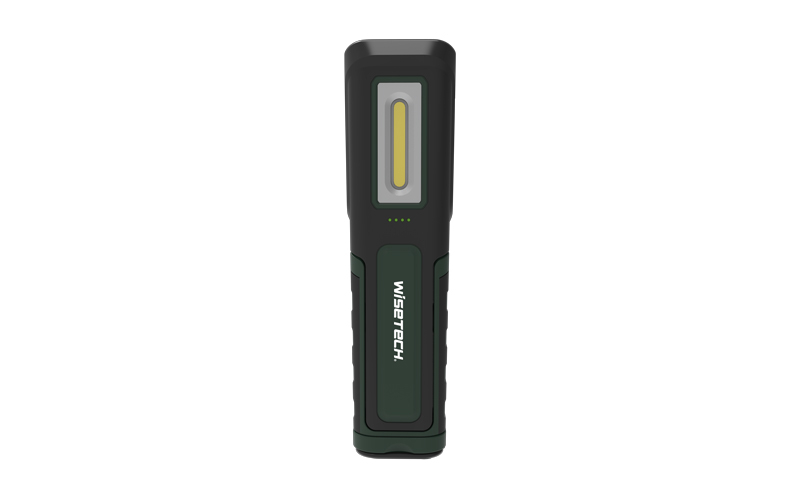

The dual light source design of strip COB and SMD provides convenience for lighting in different usage scenarios. The base integrates the three functions of 270° light body rotation at 9 positions, magnetic attachment and hang. The double magnets on the back provides the convenience of use at places where has a big metal plates.
Three green LEDs plus 1 red LED are used as charging indicator and battery meter. If there is only the red LED is on, it means the battery volume is getting low, pay attention to charge the lamp in time. While charging, the corresponding LED will flash. When fully charged, all 4 LEDs will be on.
Wireless charging version and magnetic fast charging series are optional. You can refer to our hand lamp series for more details.
| Art. number | P08PM-C03 |
| Power source | COB (main) 1 x SMD(torch) |
| Rated power (W) | 6W(main) 1W(torch) |
| Luminous flux(±10%) | 100-600lm(main) 100lm(torch) |
| Color temperature | 5700K |
| Color rendering index | 80(main) 65(torch) |
| Bean angle | 84°(main) 42°(torch) |
| Battery | 18650 3.7V 2600mAh |
| Operating time(approx.) | 2.5-10H(main) 10H(torch) |
| Charging time(approx.) | 2.5H |
| Charging voltage DC (V) | 5V |
| Charging current (A) | Max.2A |
| Charging port | TYPE-C |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz |
| Charger included | No |
| Charger type | EU/GB |
| Switch function | Torch-main-off, |
| Protection index | IP65 |
| Impact resistance index | IK08 |
| Service life | 25000 h |
| Operating temperature | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C |
| Art. number | P08PM-C03 |
| Product type | handlamp |
| Body casing | ABS+TRP+PC |
| Length (mm) | 55 |
| Width (mm) | 40 |
| Height (mm) | 205 |
| N.W. per lamp (g) | 300g |
| Accessory | Lamp, manual,1m USB -C cable |
| Packaging | color box |
| Carton quantity | 25 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
N/A
Q: Whether the lamp will get hot when it light on for a few minutes?
A: Don’t worry, the temperature of accessible parts is suitable.
Q: If we don’t need the dimming function of front light, is it OK to do?
A: Yes, it is OK to make the chance.
Q: Does the battery have been protected from overcharge?
A: Yes, the battery has built-in protection board, it is safe.
