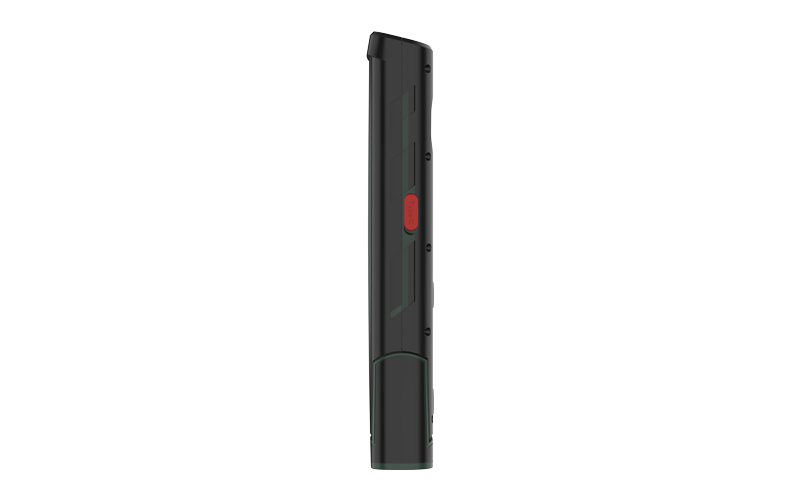

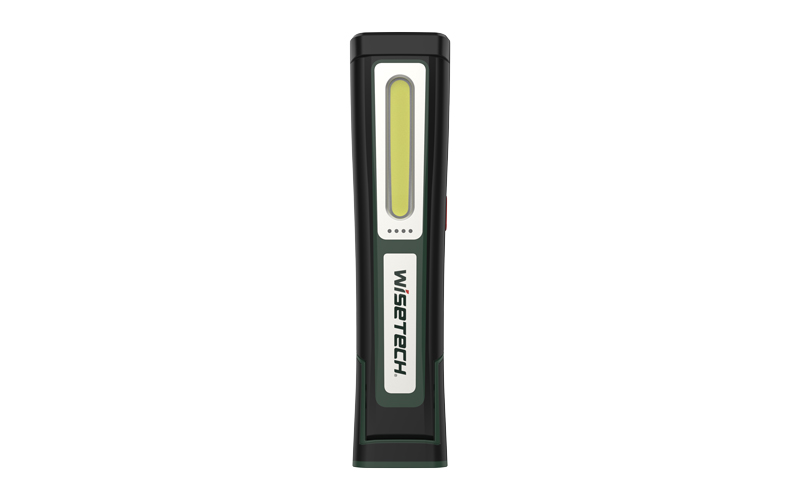

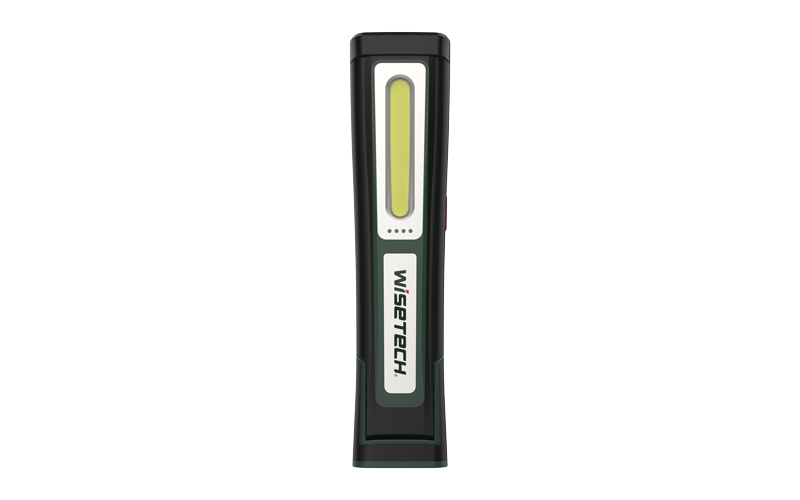

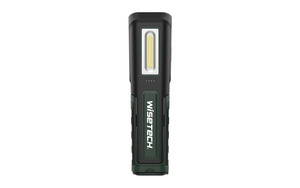

The total length of the maxiflex hand lamp is 251mm. The whole lamp adopts the structure of ABS rubberized with TPR, whih can well guarantee the strength of the lamp body, making the lamp durable, anti-drop. Silver decorative pieces and a two-tone cross color scheme bring a better visual impact.

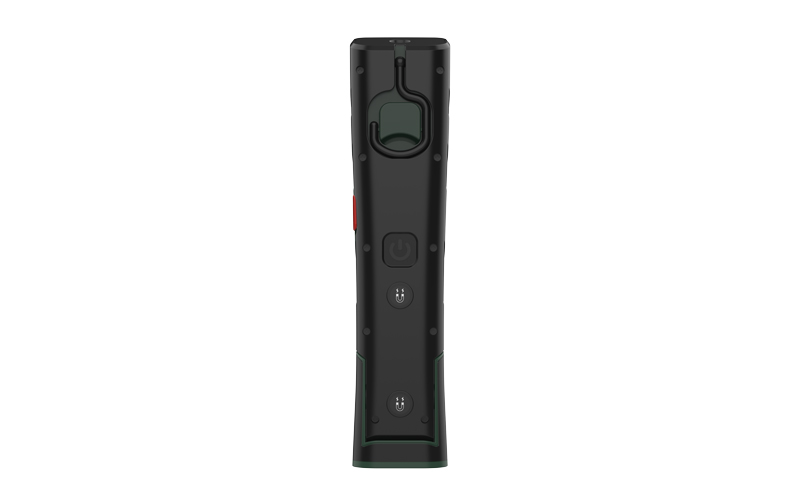

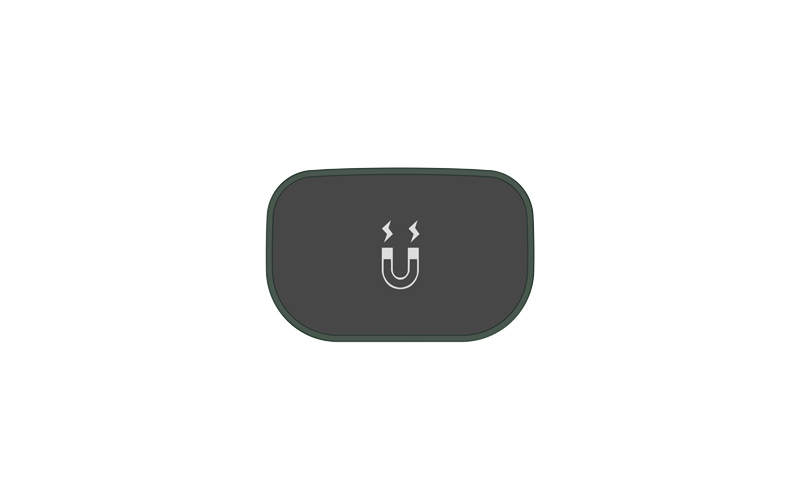

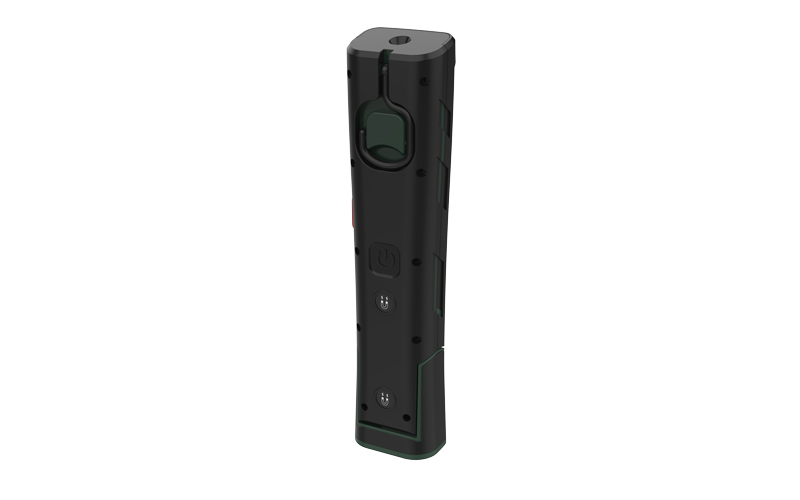

The base has a magnet function and can be rotated 180° to support the adjustment of the use angle of the lamp in the vertical direction. The back hook can be rotated 360°, and the double magnet structure enables the lamp to meet the needs of different occasions. The charging indicator continues the design of the 4 LEDs of the PRO series, and it also serves as a power indicator when the light is on.
This design is available in economical 500+100 lumen and professional 1000+200 lumen versions, designed to meet the needs of different luminous flux, usage time and price. Both the main light is dimming by long-press switch button. And 1 meter USB was offered.
| Art. number | P05PM-NC01 | P10PM-CC01 |
| Power source | COB (main) 1 x SMD(torch) | COB (main) 1 x SMD(torch) |
| Rated power (W) | 5W(main) 1W(torch) | 10W(main) 2W(torch) |
| Luminous flux(±10%) | 100-500lm(main) 100(torch) | 100-1000lm(main) 200(torch) |
| Color temperature | 5700K | 5700K |
| Color rendering index | 80 | 80(main) 65(torch) |
| Bean angle | 103°(main) 42°(torch) | 103°(main) 42°(torch) |
| Battery | 18650 3.7V 2000mAh | 21700 3.7V 4500mAh |
| Operating time(approx.) | 3H(main) 8H(torch) | 3H(main) 9H(torch) |
| Charging time(approx.) | 3H | 3H |
| Charging voltage DC (V) | 5V | 5V |
| Charging current (A) | 1A | Max. 2A |
| Charging port | TYPE-C | TYPE-C |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz | 100 ~ 240V AC 50/60Hz |
| Charger included | No | No |
| Charger type | EU/GB | EU/GB |
| Switch function | Torch-main-off, | Torch-main-off, |
| Protection index | IP65 | IP65 |
| Impact resistance index | IK08 | IK08 |
| Service life | 25000 h | 25000 h |
| Operating temperature | -10°C ~ 40°C | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C | -10°C ~ 50°C |
| Art. number | P05PM-NC01 | P10PM-CC01 |
| Product type | handlamp | handlamp |
| Body casing | ABS+PMMA+PC | ABS+PMMA+PC |
| Length (mm) | 59 | 59 |
| Width (mm) | 40 | 40 |
| Height (mm) | 251 | 251 |
| N.W. per lamp (g) | 331g | 395g |
| Accessory | Lamp, manual,1m USB -C cable | Lamp, manual,1m USB -C cable |
| Packaging | color box | color box |
| Carton quantity | 25 in one | 25 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
N/A
Q: Could the inspection lamp used as a power bank?
A: No.
Q: Whether the lamp color scheme can be specified?
A: Of course. You can offer the pantone number for us to prepare the color scheme for approval.
Q: Why is the size so big?
A: As per our experiences, such size hand lamp is popular for the craftsmen in workshop. Also it can leave enough space for 21700 battery to extend the duration time.
