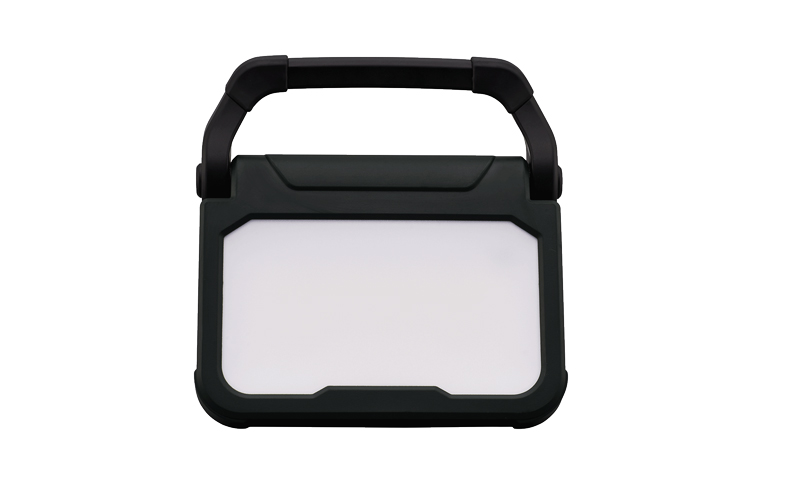

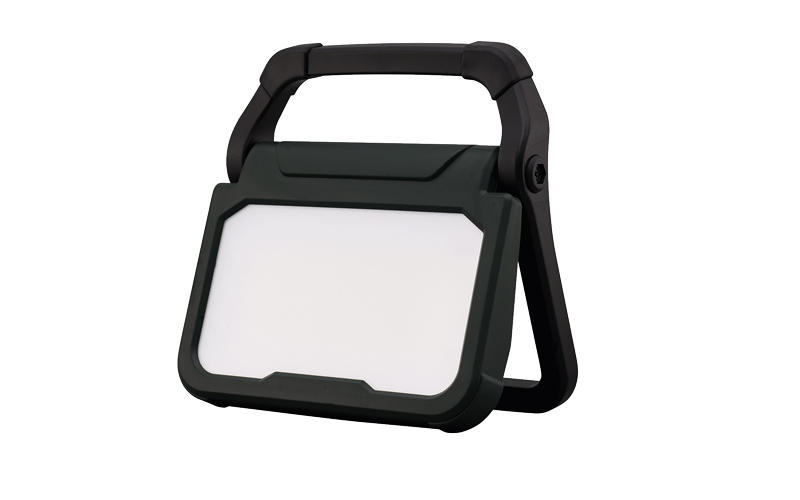

Rubberized PC housing integrated with PC plate provides the mobile rechargeable flood light ECO a pleasant and diffused high quality illumination. 2000 lumen portable LED flood light with 2 switching levels (50%-100%) and 3000 lumen mobile LED flood light with 4 switching levels (100%-75%-50%-25%) and protection system for batteries against overcharge or deep discharge, overheating (caused by high load currents) and battery faults.

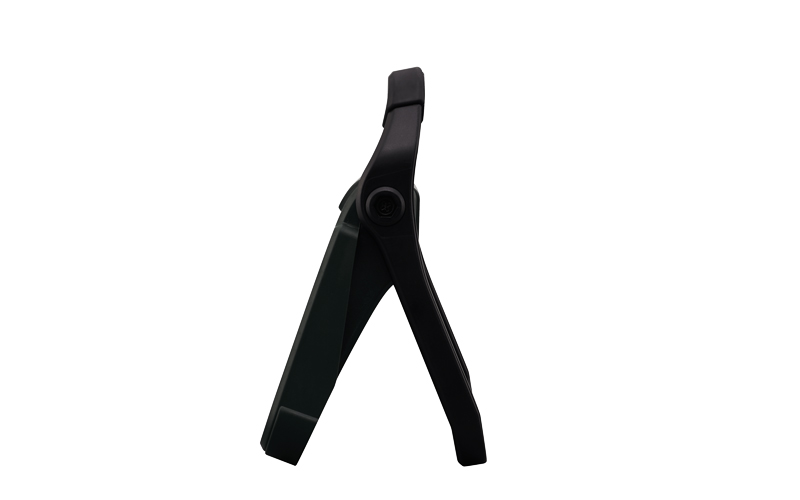

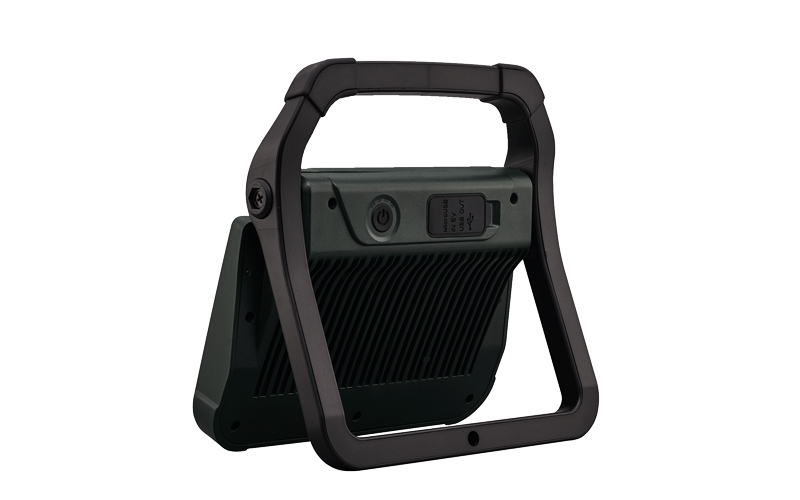

The 280 degrees rotatable bracket combined with the hook function enable the flood light to be used in occasions with a hanging structure, freeing hands for craftsman.
Short press the circular switch to activate the 5V 1A power bank function. The charging port is upgraded to Type-C instead of Micro-USB to avoid the damage to the charging port caused by misoperation.
| Art. number | S20DF-N02A | S30DF-CS02 |
| Power source | 55 x SMD 2835 | 66 x SMD 2835 |
| Rated power (W) | 20 | 27 |
| Luminous flux(±10%) | 1000lm/2000lm | 750lm/1500lm/2250lm/3000lm |
| Color temperature | 5700K | |
| Color rendering index | 80 | |
| Bean angle | 117° | 117° |
| Battery | 18650 3.7V 8000mAh | Li-ion 3.7V 7800mAh |
| Operating time(approx.) | 2.5H@100%, 5H@50% | 2.5H@100%, 3.5H@75% 4.5H@50%, 6H@25% |
| Charging time(approx.) | 4H | 3H |
| Charging voltage DC (V) | 5V | 5V |
| Charging current (A) | 3A | 3A |
| Charging port | TYPE-C | TYPE-C |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz | |
| Charger included | No | No |
| Charger type | EU/GB | |
| Switch function | 50%-100%-off | 100%-75%-50%-25%-off |
| Protection index | IP65 | |
| Impact resistance index | IK08 | |
| Service life | 25000 h | |
| Operating temperature | -10°C ~ 40°C | |
Store temperature: | -10°C ~ 50°C | |
| Art. number | S20DF-N02A | S30DF-CS02 |
| Product type | Frosted flood light ECO | |
| Body casing | ABS+PC+TRP | |
| Length (mm) | 204 | |
| Width (mm) | 51 | |
| Height (mm) | 156 | |
| N.W. per lamp (g) | 690 | 625 |
| Accessory | Lamp, manual,1m USB -C cable | |
| Packaging | color box | |
| Carton quantity | 4 in one | |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
2 meter tripod
Q: Where can we put the brand name?
A: An engraved logo in the middle of top casing or a silk printing logo on the PC plate.
Q: Whether main charger can be supplied?
A: Yes, 5V 3A is available upon requirement.
Q: Whether we can use 5V 1A or 5V 2A to charge this work light？
A: Yes, charging time will be longer.
Other sizes in the same series: DF other products
