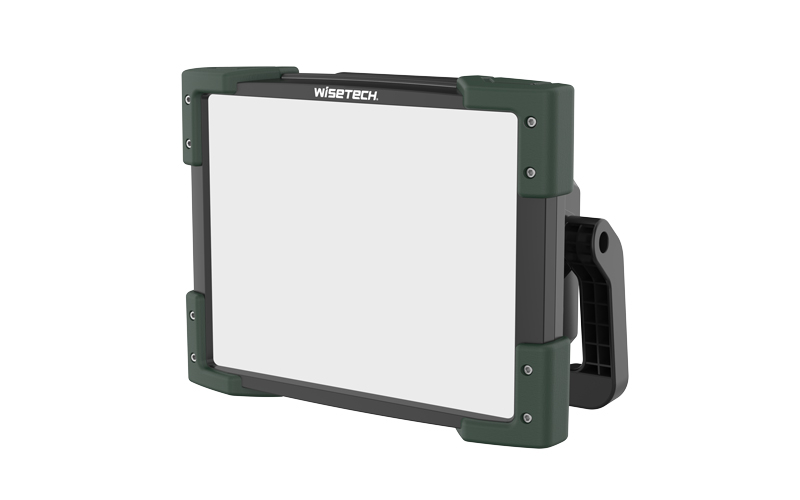

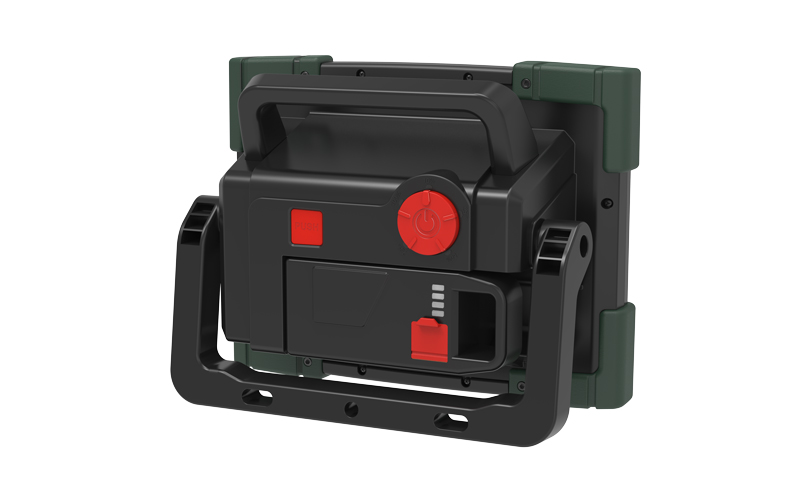

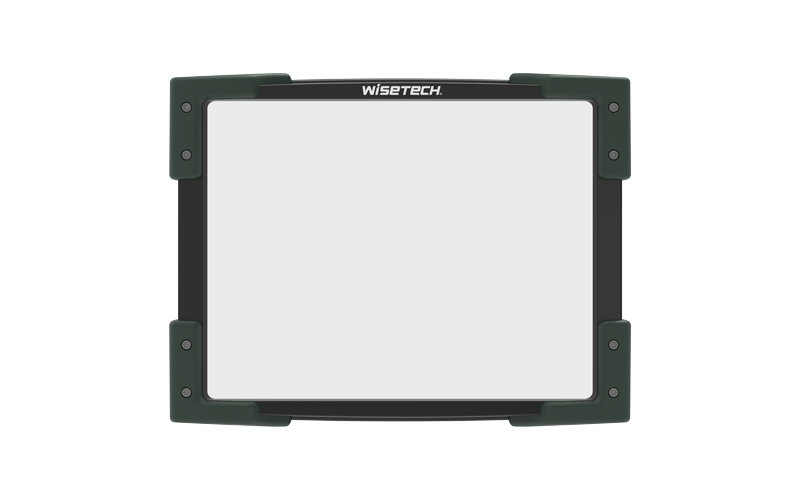

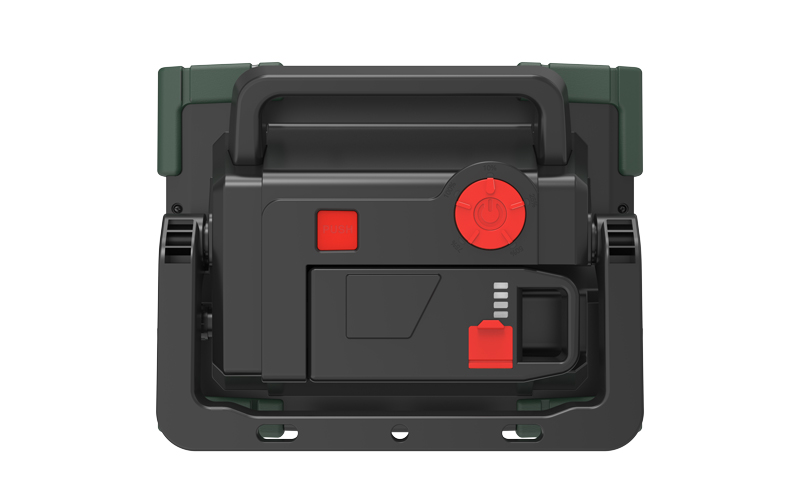

Comparing with the traditional rechargeable, we introduce the battery pack design for the 10000 lumen rechargeable frosted flood light PRO, tso that the craftsman can easily extend using time to meet the demands of whole day work by a separate battery pack. It follows the PC plate of SOLID series, the aim is to supply a diffusion and comfortable illumination.The charging port is built in the battery pack, it is OK to remove the battery pack to charge anywhere.

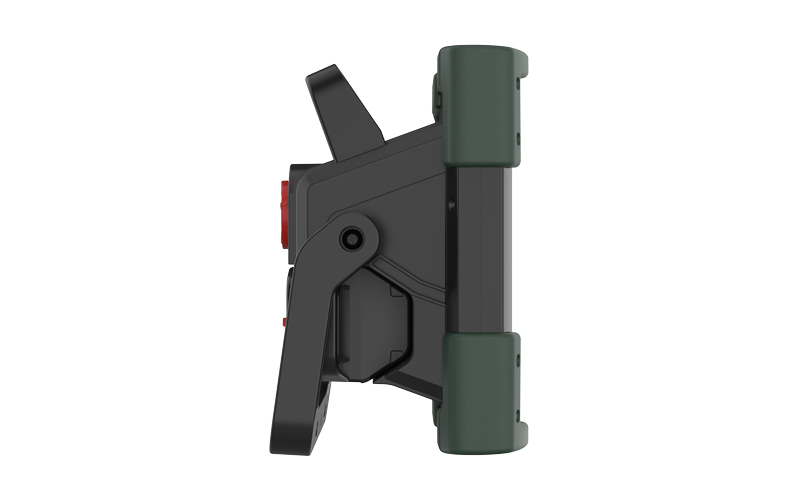

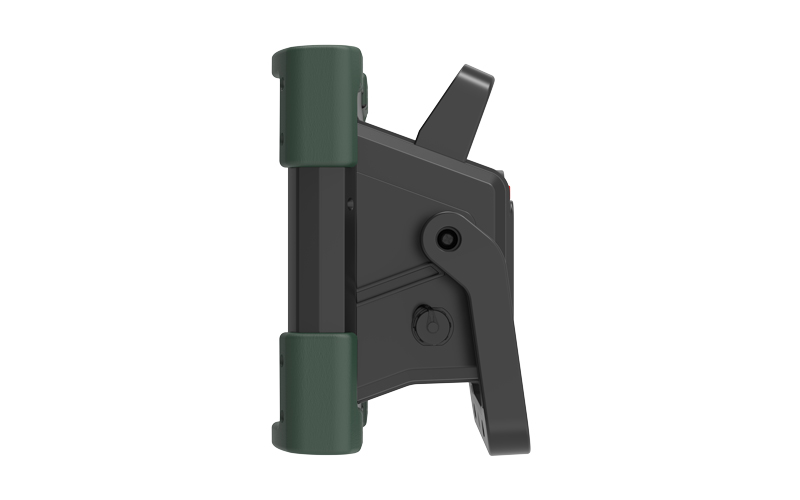

The housing is made of a highly shock-proof plastic material, duration and lightweight. Handle for easy carry and bracket for adjusting different use angles. The 3 holes in the bracket makes the mobile working light can be fixed to the tripod by screws.
Different levels lumens output is optional by turn the switch.
| Art. number | S100PF-CS01 |
| Power source | 176 x SMD 2835 |
| Rated power (W) | 100 |
| Luminous flux(±10%) | 10000lm |
| Color temperature | 5700K |
| Color rendering index | 80 |
| Bean angle | 117° |
| Battery | 18650 22.2V 2600mAh |
| Operating time(approx.) | 2H@10000lm |
| Charging time(approx.) | 3.5H |
| Charging voltage DC (V) | 25.2V |
| Charging current (A) | 1.4A |
| Charging port | DC |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz |
| Charger included | Yes |
| Charger type | EU/GB |
| Switch function | on-off, turn switch button for 10%-100% |
| Protection index | IP65 |
| Impact resistance index | IK08 |
| Service life | 25000 h |
| Operating temperature | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C |
| Art. number | S100PF-CS01 |
| Product type | Frosted flood light PRO |
| Body casing | ABS+PC+TRP |
| Length (mm) | 340 |
| Width (mm) | 155 |
| Height (mm) | 264 |
| N.W. per lamp (g) | 2412 |
| Accessory | Lamp, manual |
| Packaging | color box |
| Carton quantity | 4 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
2 meter tripod, one and two ends
Q: How to assemble the battery pack?
A: Put the battery pack on the card slot and push in until it clicks.
Q: How to remove the battery pack?
A: Press the bayonet switch (Button cover with “PULL” texts), meanwhile pull the battery pack out.
Q: Why the light is still off when we turn around the button switch?
A: Short press the middle of switch button to turn on the working light first.
