Product Certificate
Product Parameter
| Art. number |
S20BS-CC01 |
S20BS-CC02 |
S30BSN-NC01 |
| Power source |
COB |
COB |
COB |
| Rated power (W) |
20 |
20 |
30 |
| Luminous flux(±10%) |
1000lm/2000lm |
1000lm/2000lm |
1500lm/3000lm |
| Color temperature |
5700K |
||
| Color rendering index |
80 |
80 |
70 |
| Bean angle |
100° |
100° |
110° |
| Battery |
18650 11.1V 4000mAh |
18650 11.1V 2600mAh |
18650 11.1V 2600mAh |
| Operating time(approx.) |
3.5H/2000lm |
2.5H/2000lm |
2.5H/3000lm |
| Charging time(approx.) |
5H |
3H |
3H |
| Charging voltage DC (V) |
5V |
5V |
5V |
| Charging current (A) |
Max. 3A |
Max. 3A |
Max. 3A |
| Charging port |
TYPE-C |
TYPE-C |
TYPE-C |
| Charging input voltage (V) |
100 ~ 240V AC 50/60Hz |
||
| Charger included |
No |
No |
No |
| Charger type |
EU/GB |
||
| Switch function |
50%-100%-off |
||
| Protection index |
IP65 |
||
| Impact resistance index |
IK08 |
||
| Service life |
25000 h |
||
| Operating temperature |
-10°C ~ 40°C |
||
|
Store temperature: |
-10°C ~ 50°C |
||
Poduct Details
| Art. number |
S20BS-CC01 |
S20BS-CC02 |
S30BSN-NC01 |
| Product type |

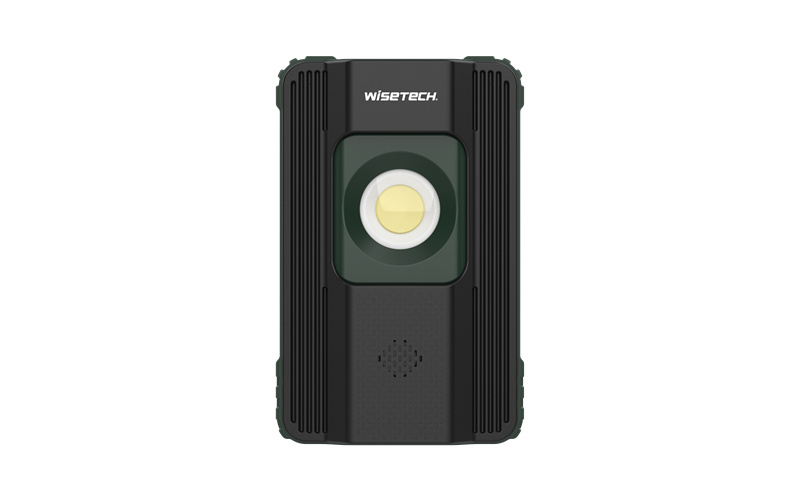

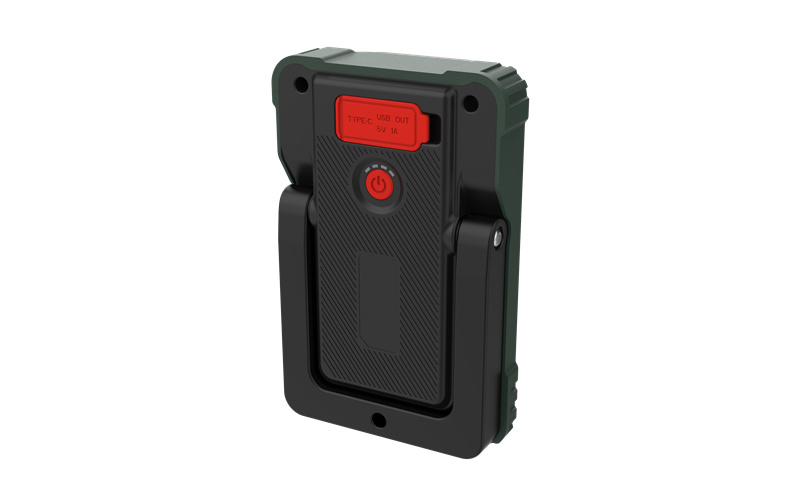

Aluminum flood light |
||
| Body casing |
ABS+Aluminum+TRP+PC |
||
| Length (mm) |
124 |
||
| Width (mm) |
52 |
||
| Height (mm) |
194 |
||
| N.W. per lamp (g) |
803 |
803 |
803 |
| Accessory |
Lamp, manual,1m USB -C cable |
||
| Packaging |
color box |
||
| Carton quantity |
10 in one |
||
Product Application/Key Feature
Conditions
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
Accesorry
2 meter tripod
FAQ
Q: The car accidentally rolled over, will it be damaged?
A: No worry, we have customer did the test, it is 100% perfect OK.
Q: Have you test the spindle lifetime?
A: Yes, our test standard is 20000 times.
Q: Whether it is OK to use 5V 1A or 5V 2A to charge this work light？
A: Yes, but charging time will be extended
Recommendation

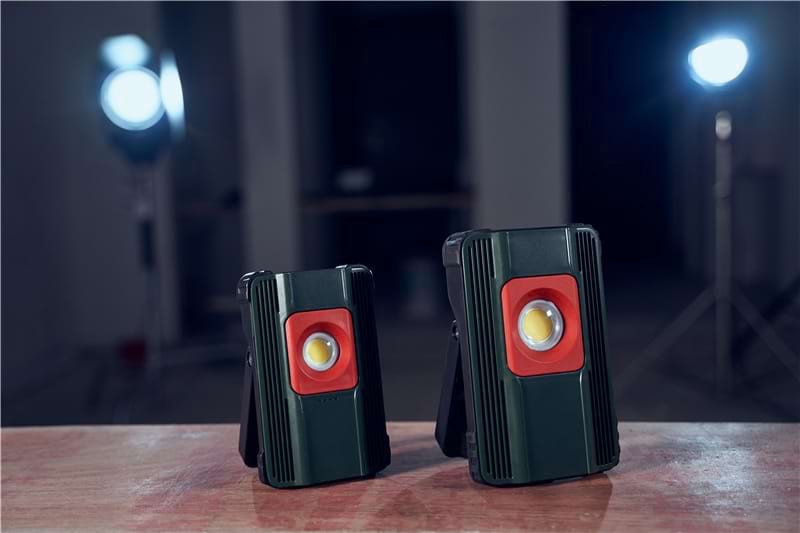

Aluminum flood light series
