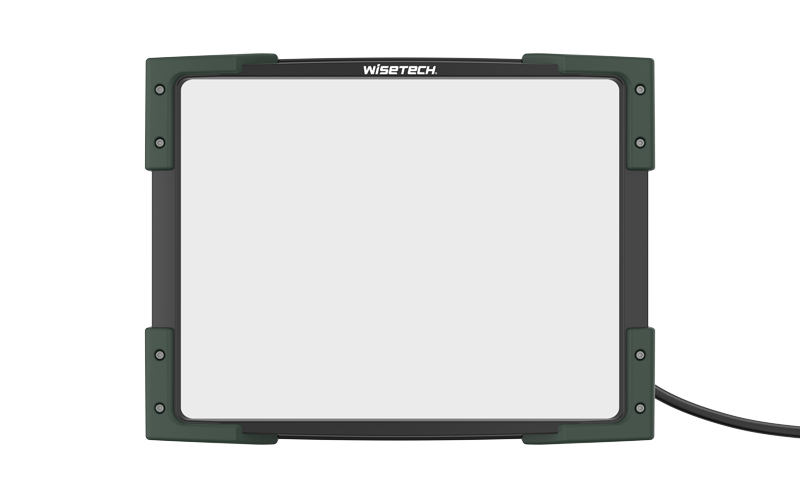

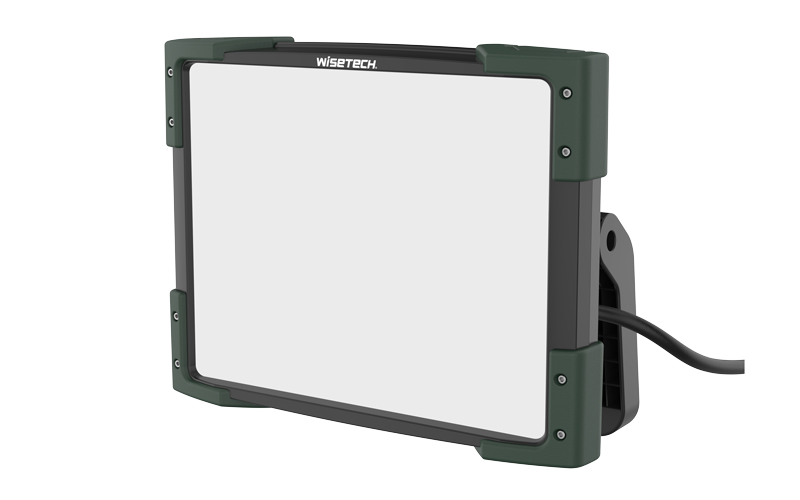

Comparing with SOLID and ECO version, Frosted flood light PRO is a high-end series of working light developed for the demanding craftsman mainly in workshop, warehouse, construction, building site. With the lightweight design mobile LED flood light for the demanding craftsman. High-efficiency LED provides powerful illumination. PC flood light softens light output, better protects eyes from strong light.

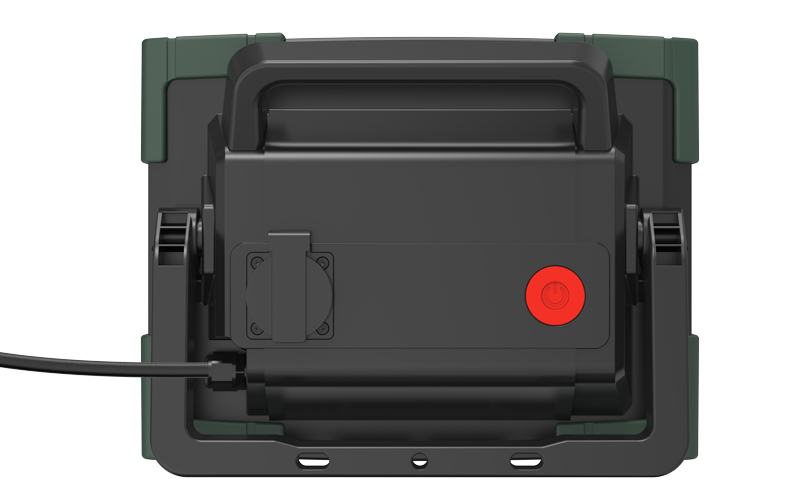

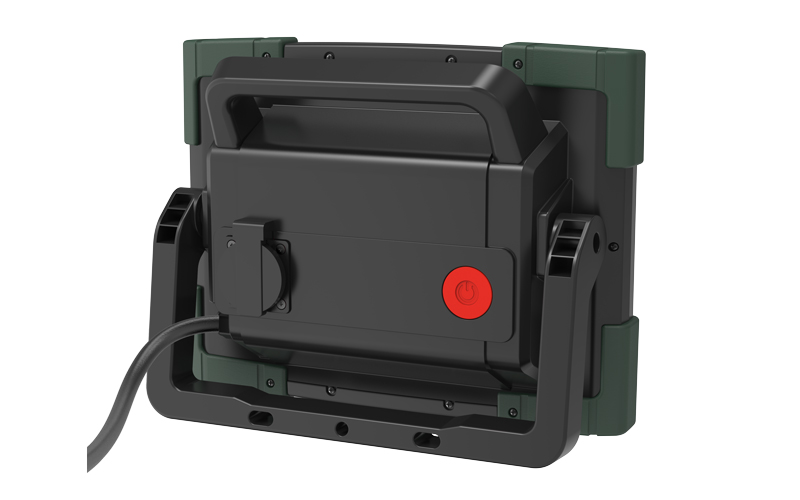

Impact-resistant and highly shock-proof plastic material with 4 TPR corners enhance protection of the light. Waterproof and dust-proof design can avoid potential safety hazards in outdoor use. H01 & H01A have socket outlet, They can supply power for other devices when needed.
2 meter high quality tripod is available for this series, ideal for house building, painting etc.. The luminous lux is adjustable from 15%-100% by long-press the switch button.
| Art. number | S100PF-H01 | S100PF-H01A | S100PF-H02 | S150PF-H01 | S150PF-H01A | S150PF-H02 |
| Power source | 192 x SMD 2835 | 192 x SMD 2835 | 192 x SMD 2835 | SMD | SMD | SMD |
| Luminous flux | 10000lm | 10000lm | 10000lm | 15000lm | 15000lm | 15000lm |
| Operating voltage | 220- 240V AC 50/60Hz. | 220- 240V AC 50/60Hz. | 220- 240V AC 50/60Hz. | 220- 240V AC 50/60Hz. | 220- 240V AC 50/60Hz. | 220- 240V AC 50/60Hz. |
| Rated power (W) | 95W | 95W | 95W | 140W | 140W | 140W |
| Bean angle | 100° | 100° | 100° | 100° | 100° | 100° |
| Color temperature | 5700K | 5700K | 5700K | 5700K | 5700K | 5700K |
| Cable | 5 meter H07RN-F 3G1.5mm² | 5 meter H07RN-F 3G1.5mm² | 5 meter H07RN-F 2G1.0mm² | 5 meter H07RN-F 3G1.5mm² | 5 meter H07RN-F 3G1.5mm² | 5 meter H07RN-F 2G1.0mm² |
| Plug type | Socket/CH/GB | Socket/CH/GB | Socket/CH/GB | Socket/CH/GB | Socket/CH/GB | Socket/CH/GB |
| Number of sockets | 2 pieces | 1 piece | N/A | 2 pieces | 1 piece | N/A |
| Socket outlet type | Socket/FR/CH/GB | Socket/FR/CH | N/A | Socket/FR/CH/GB | Socket/FR/CH | N/A |
| Switch function | On-off | |||||
| Protection index | IP54 | IP54 | IP65 | IP54 | IP54 | IP65 |
| Impact resistance index | IK08 | |||||
| Color rendering index | 80 | |||||
| Energy efficiency class | E | E | E | E | E | E |
| Service life | 25000 h | |||||
| Operating temperature | -20°C ~ 40°C | |||||
Store temperature: | -20°C ~ 50°C | |||||
| Art. number | S100PF-H01 | S100PF-H01A | S100PF-H02 | S150PF-H01 | S150PF-H01A | S150PF-H02 |
| Product type | Frosted flood light PRO | |||||
| Body casing | ABS+PC+TRP | |||||
| Length (mm) | 340 | |||||
| Width (mm) | 130 | |||||
| Height (mm) | 264 | |||||
| N.W. per lamp (kgs) | 2520 | 2440 | 2360 | 2940 | 2745 | 2665 |
| Accessory | M6 screw, lamp, manual | |||||
| Packaging | color box | |||||
| Carton quantity | 4 in one | |||||
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
2 meter tripod, one and two ends
Q: Is there problem for heat dissipation of the bigger one?
A: Although the size is same, we have solved the problem of heat dissipation by using different housing material.
Q: Whether the body color can be changes?
A: Yes, but we suggest dark color series and TPR corners could be bright color.
Q: Is it OK to place a small trial order at the beginning?
A: We can support, please freely contact with us.
