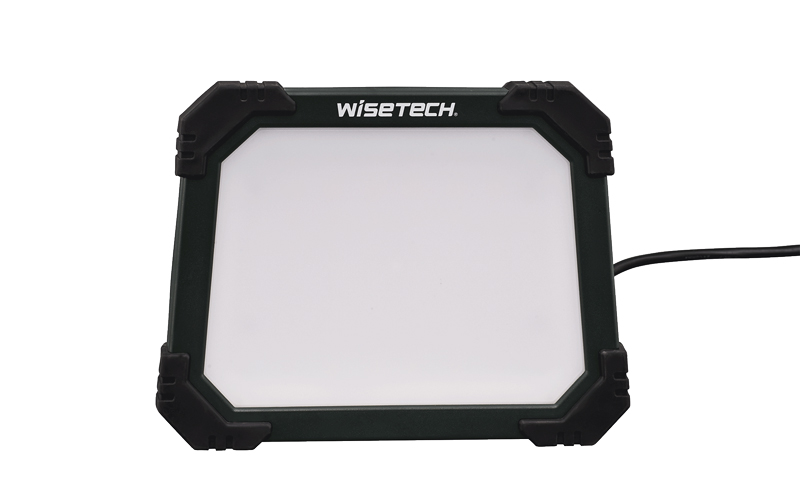

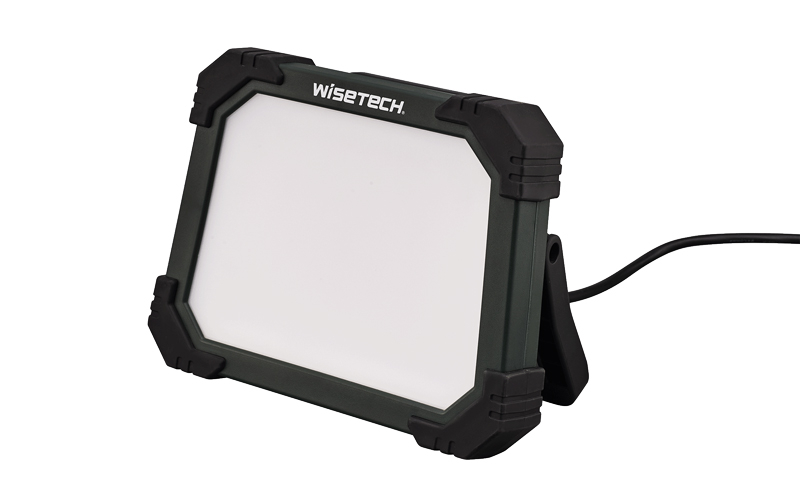

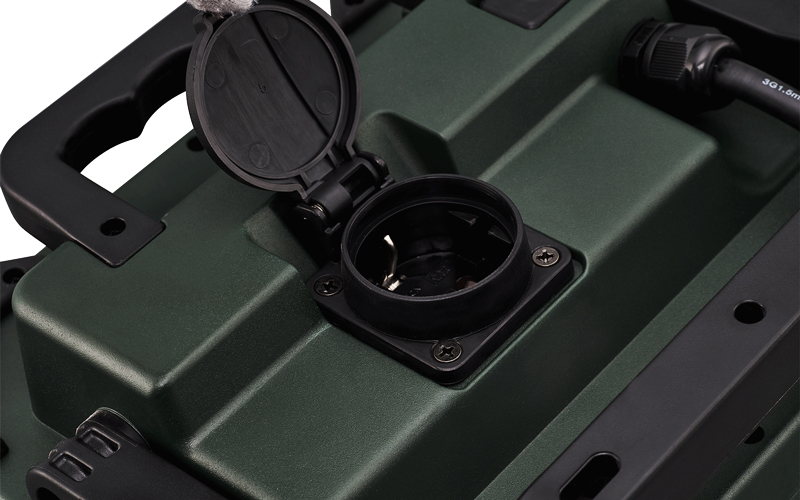

The small size of frosted flood light SOLID is consist of 24W and 45W AC items, which include socket and non-socket versions for selection. When the portable work light is light on, the other devices can be powered through the rear socket. The ABS body protected by the 4 TRP corners is resistant to hit and drop, adding the waterproof and dust-proof advantages, the series is ideal for workers in many kinds of occasions, including construction, building, roadside sites, etc.

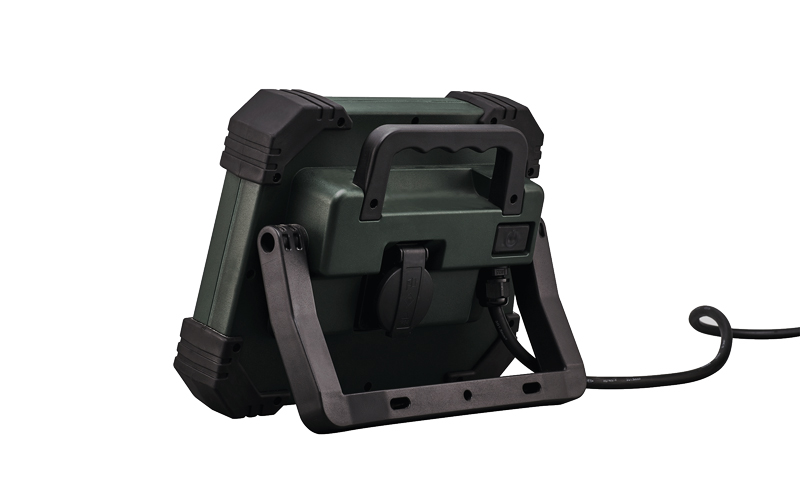

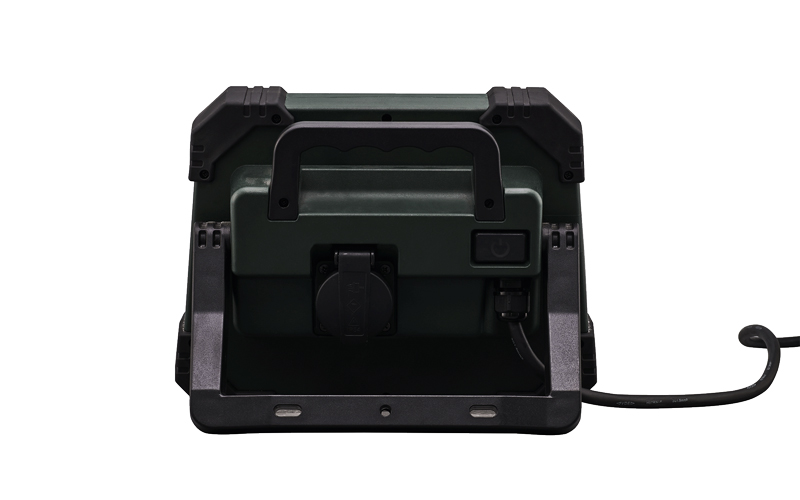

PC cover makes the light softer, which can better protect the eyes from strong light. Ergonomic handle design combines cable rolling function, which makes the portable flood light can be well stored after daily work. The suitable size is no doubt perfect for take-out operation.
| Art. number | S20WF-H01 | S20WF-H02 | S50WFN-H01 | S50WFN-H02 |
| Power source | 64 x SMD 2835 | 64 x SMD 2835 | 132 x SMD 2835 | 132 x SMD 2835 |
| Luminous flux | 2500lm | 2500lm | 5000lm | 5000lm |
| Operating voltage | 100- 240V AC 50/60Hz. | 100- 240V AC 50/60Hz. | 100- 240V AC 50/60Hz. | 100- 240V AC 50/60Hz. |
| Rated power (W) | 24W | 24W | 45W | 45W |
| Bean angle | 110° | 110° | 110° | 110° |
| Color temperature | 5700K | 5700K | 5700K | 5700K |
| Cable | 5 meter H07RN-F 2G1.0mm² | 5 meter H07RN-F 3G1.5mm² | 5 meter H07RN-F 3G1.5mm² | 5 meter H07RN-F 2G1.0mm² |
| Plug type | Socket/CH/GB | Socket/CH/GB | Socket/CH/GB | Socket/CH/GB |
| Number of sockets | N/A | 1 piece | 1 piece | N/A |
| Socket outlet type | N/A | Socket/FR/CH/GB | Socket/FR/CH/GB | N/A |

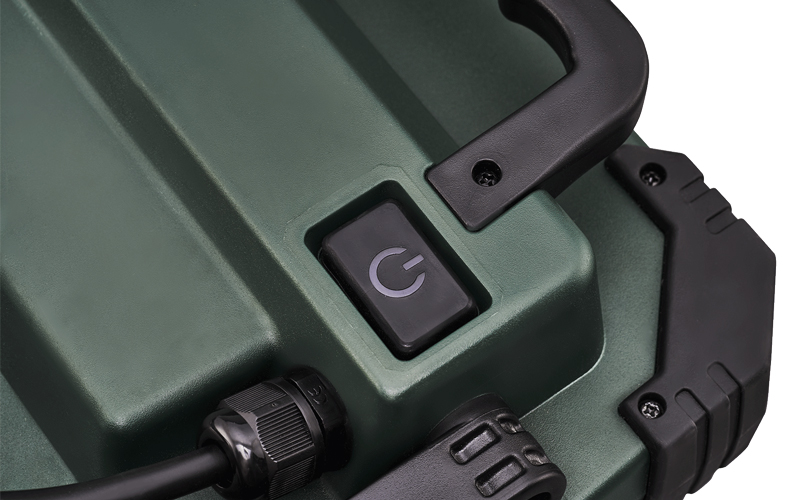

| Switch function | On-off | |||
| Protection index | IP65 | IP54 | IP54 | IP65 |
| Impact resistance index | IK08 | |||
| Color rendering index | 80 | |||
| Energy efficiency class | E | E | E | E |
| Service life | 25000 h | |||
| Operating temperature | -20°C ~ 40°C | |||
Store temperature: | -20°C ~ 50°C | |||
| Art. number | S20WF-H01 | S20WF-H02 | S50WFN-H01 | S50WFN-H02 |
| Product type | Frosted flood light SOLID | |||
| Body casing | ABS+PC+TRP | |||
| Length (mm) | 278 | |||
| Width (mm) | 86 | |||
| Height (mm) | 213 | |||
| N.W. per lamp (g) | 1445 | 1925 | 1650 | 1670 |
| Accessory | M6 screw, lamp, manual | |||
| Packaging | color box | |||
| Carton quantity | 4 in one | |||
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
2 meter tripod
Q: Which item is more popular?
A: The best seller is S50WFN-H01, it also depends on the areas you need to light on, we have higher power items, you can please just refer to the recommendation.
Q: How to use the light on the tripod?
A: You can fix the light on the tripod by the M6 screw accessory through the hole of bracket, and it is OK to adjust the angle of the light by the rotatable bracket.
Other sizes in the same series: WF large size
Different series of the same function PF series
