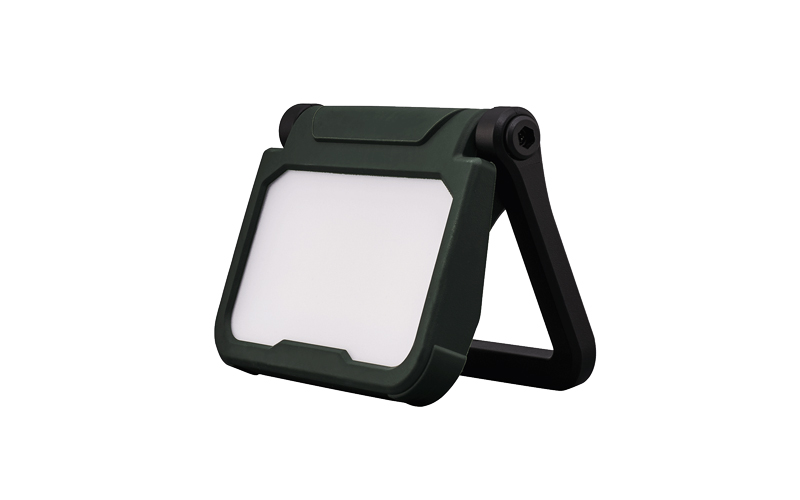

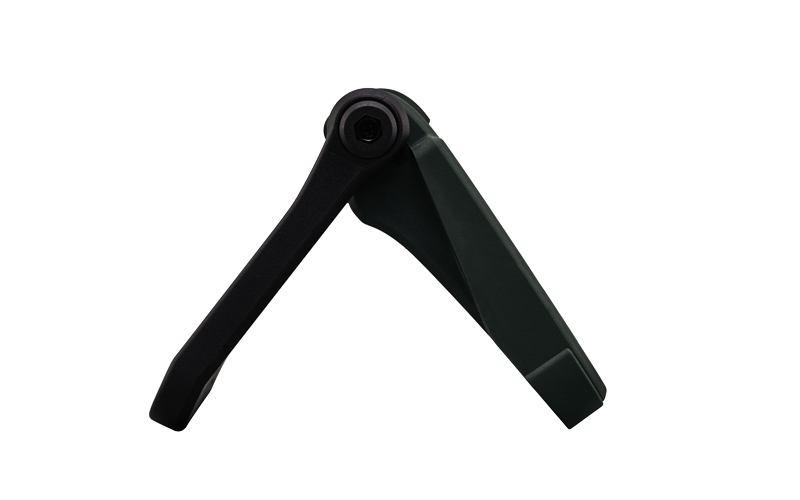

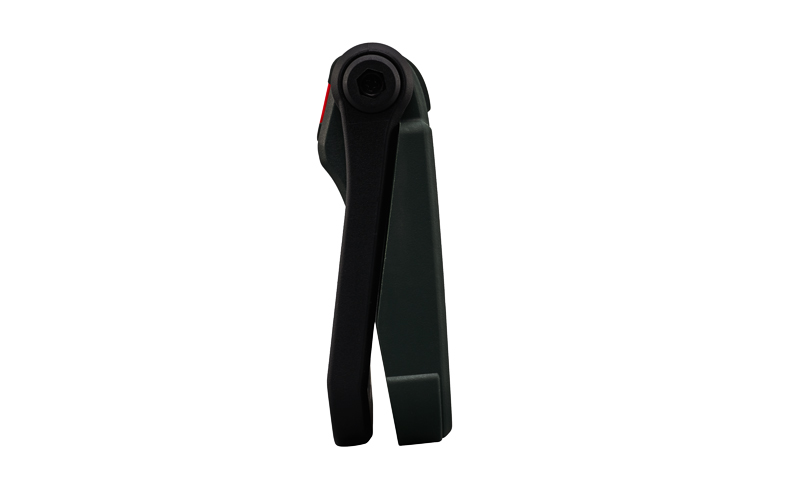

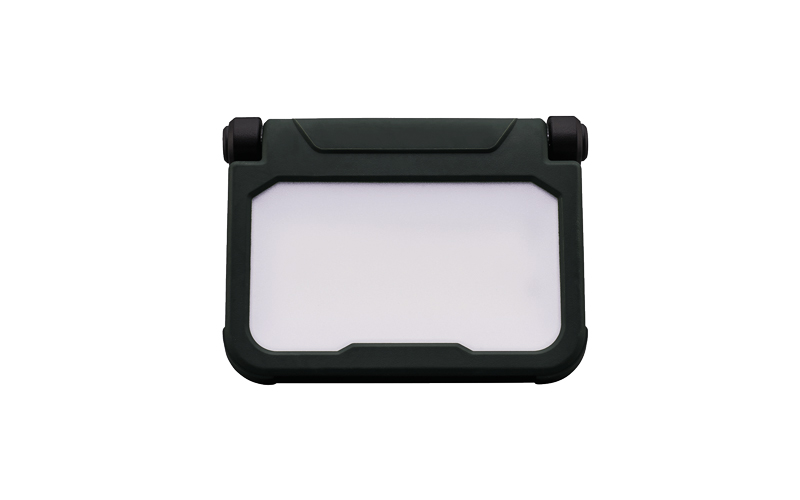

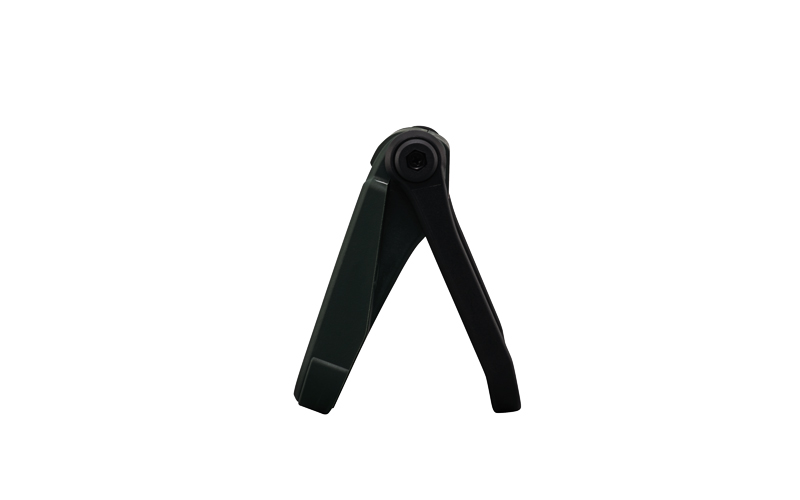

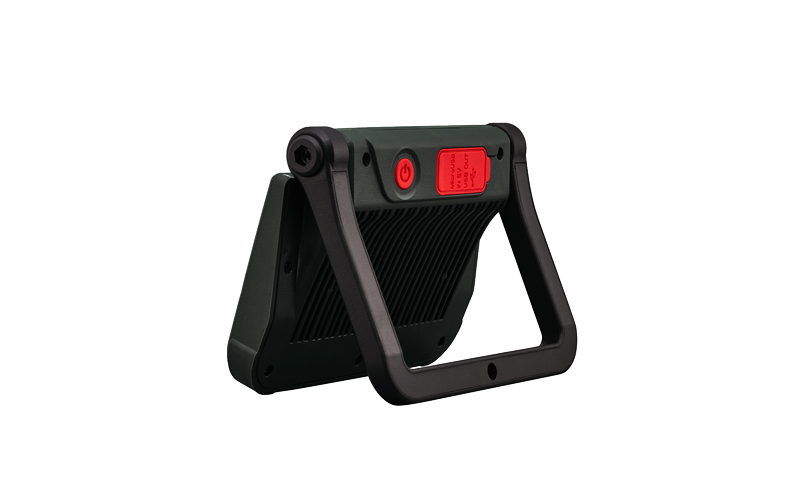

LED panel frosted flood light ECO provides very homogeneous light distribution. Luminaire panel can be swiveled 30 degrees, 60 degrees, 90 degrees and 116 degrees. The integrated bracket and handle saves the packaging size and delivery cost. This mobile working light can be used in areas of application, like renovation. workshop, etc.
The mobile cordless work light use the latest SMD chip technology. S20DF-N01A has 2 levels to choose from and S30DF-CS01 has 4 levels to choose from, enable 2.5 to 6 hours of light duration. Combined with the power bank function for other devices as emergency function.
| Art. number | S20DF-N01A | S30DF-CS01 |
| Power source | 55 x SMD 2835 | 66 x SMD 2835 |
| Rated power (W) | 20 | 27 |
| Luminous flux(±10%) | 1000lm/2000lm | 750lm/1500lm/2250lm/3000lm |
| Color temperature | 5700K | |
| Color rendering index | 80 | |
| Bean angle | 117° | 117° |
| Battery | 18650 3.7V 8000mAh | Li-ion 3.7V 7800mAh |
| Operating time(approx.) | 2.5H@100%, 5H@50% | 2.5H@100%, 3.5H@75% 4.5H@50%, 6H@25% |
| Charging time(approx.) | 4H | 3H |
| Charging voltage DC (V) | 5V | 5V |
| Charging current (A) | 3A | 3A |
| Charging port | TYPE-C | TYPE-C |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz | |
| Charger included | No | No |
| Charger type | EU/GB | |
| Switch function | 50%-100%-off | 100%-75%-50%-25%-off |
| Protection index | IP65 | |
| Impact resistance index | IK08 | |
| Service life | 25000 h | |
| Operating temperature | -10°C ~ 40°C | |
Store temperature: | -10°C ~ 50°C | |
| Art. number | S20DF-N01A | S30DF-CS01 |
| Product type | Frosted flood light ECO | |
| Body casing | ABS+PC+TRP | |
| Length (mm) | 204 | |
| Width (mm) | 52 | |
| Height (mm) | 208 | |
| N.W. per lamp (g) | 675 | 625 |
| Accessory | Lamp, manual,1m USB -C cable | |
| Packaging | color box | |
| Carton quantity | 4 in one | |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
2 meter tripod
Q: Logo position?
A: An engraved logo in the middle of top casing or a silk printing logo on the PC plate.
Q: Quantity less than MOQ is OK?
A: We can do special support, you can contact our sales for further details.
Q: Can the mass production leading time be shorter?
A: It depends on the order quantity, our order production schedule, but we will do our utmost.
Other sizes in the same series: DF other products
