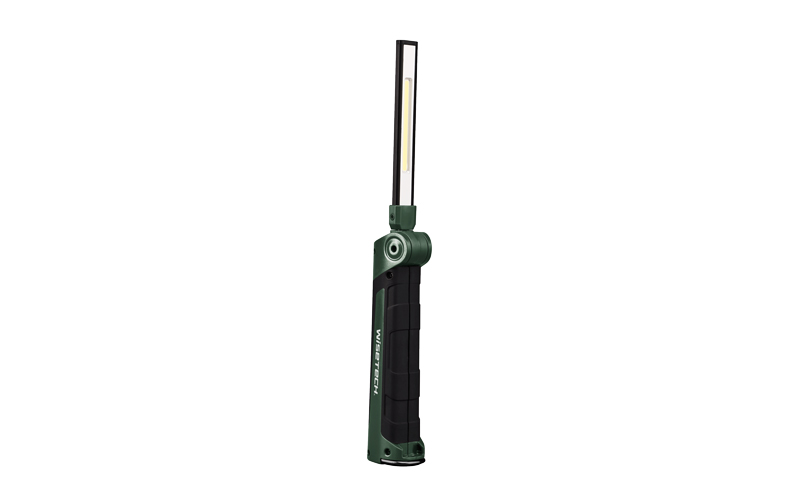

P06SF-N02 is a multifunctional hand-held lamp, which is suitable for everyone to use, special for the vehicle repair, hunting, indoor and outdoor activities. It is not only a inspection lamp but also a emergency lighting products.

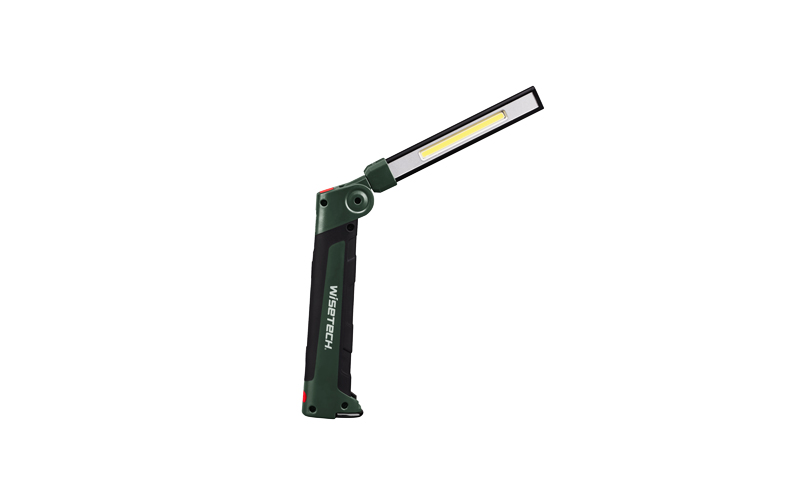

We have both OHIM patent for the design also the invention patent for the inner metal spindle. Thanks for the spindle structure, the aluminum light part can be rotated at 180 degree in vertical direction and full foldable horizontally.

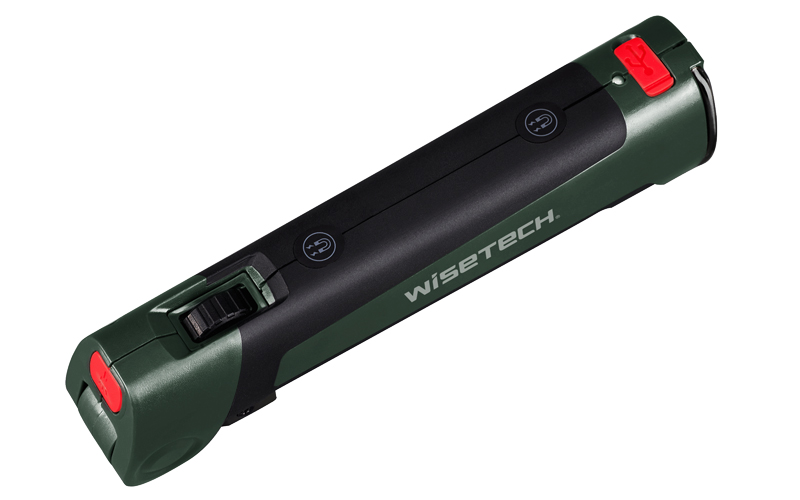

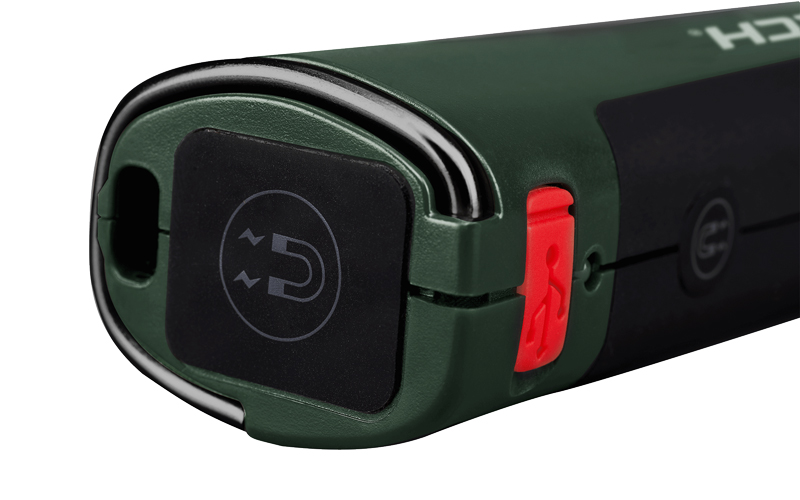

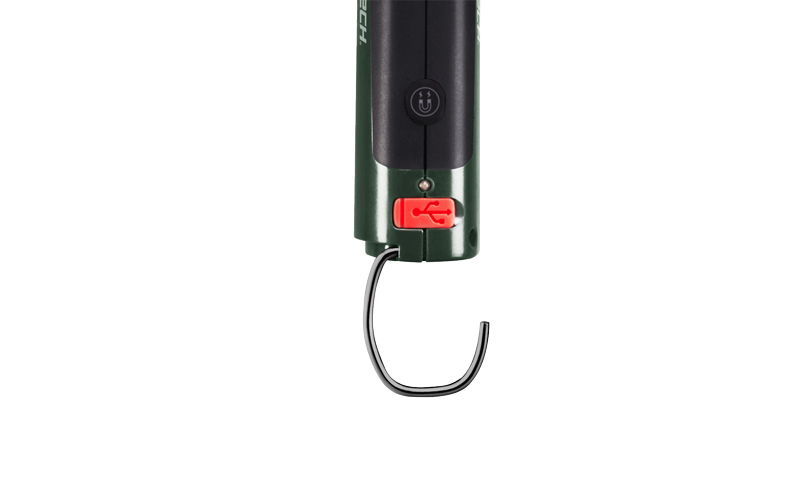

Separate button switch for the top flashlight and main light. Roller switch button for main light realize the 40 lumen – 400 lumen dimming. Handle with TPR rubberized reach a nice touch feeling. Magnetic on the bottom and rear allows the lamp to be attached on metal plates when it is needed. Bottom metal hook is strong enough to support the lamp to be hung on pole, branch, rope and so on, easy to use.
| Art. number | P06SF-N02 |
| Power source | COB (main) 1 x SMD(torch) |
| Rated power (W) | 3.3W(main) 1W(torch) |
| Luminous flux(±10%) | 40-400lm(main) 70lm(torch) |
| Color temperature | 5700K |
| Color rendering index | 70(main) 80(torch） |
| Bean angle | 117°(main) 113°(torch) |
| Battery | 18650 3.7V 2000mAh |
| Operating time(approx.) | 2.5-10H(main), 8H(torch) |
| Charging time(approx.) | 3H |
| Charging voltage DC (V) | 5V |
| Charging current (A) | 1A |

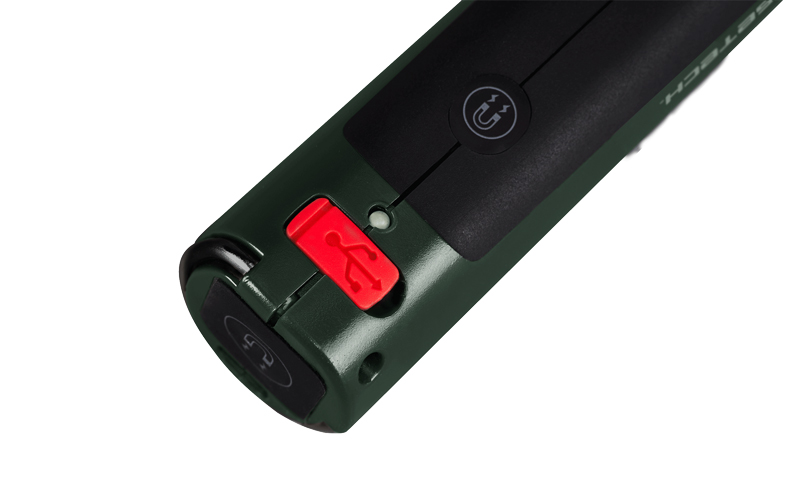

| Charging port | Micro USB |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz |
| Charger included | No |
| Charger type | EU/GB |
| Switch function | Torch-off, |
| Protection index | IP20 |
| Impact resistance index | IK07 |
| Service life | 25000 h |
| Operating temperature | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C |
| Art. number | P06SF-N02 |
| Product type | handlamp |
| Body casing | ABS+Aluminum+TRP+PMMA |
| Length (mm) | 34 |
| Width (mm) | 42 |
| Height (mm) | 300 |
| N.W. per lamp (g) | 220g |
| Accessory | Lamp, manual,1m USB-Micro USB cable |
| Packaging | color box |
| Carton quantity | 25 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
N/A
Q: What is the benefit of COB LED?
A: COB LED can better ensure uniform light emission and avoid ghosting
Q: What is type of charging port?
A: Micro USB.
Q: How long is the spindle lifetime?
A: Our test standard is 20000 times.
