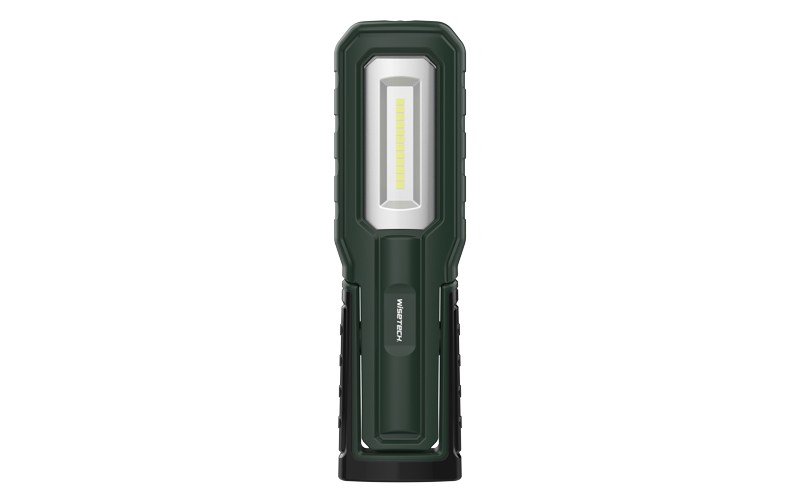

12 SMD LEDs with optical design provides a nice and super bright light for the compact inspection hand lamp. Top SMD LED with lens design makes the light more concentrated for lighting narrow places. It was powered by a high-quality lithium battery, which has overcharge protect, safe and stable.
Robust ABS housing is impact resistant. Rubber coating handle with sides stripes design is ergonomic, offering a good handle feeling.

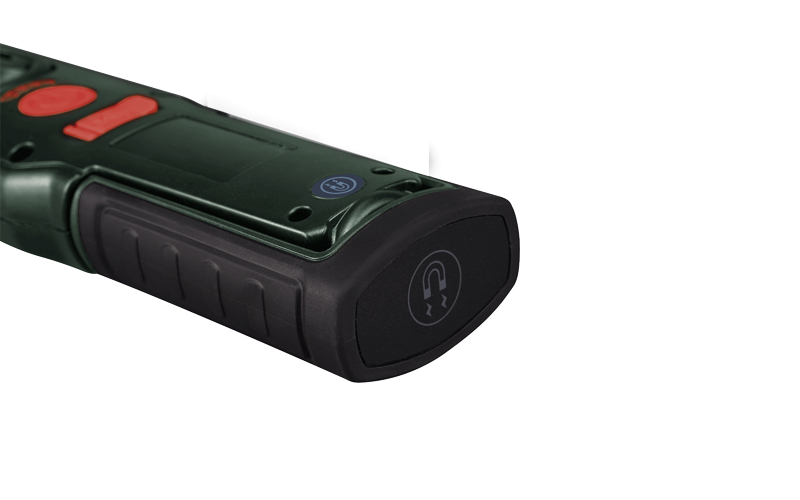

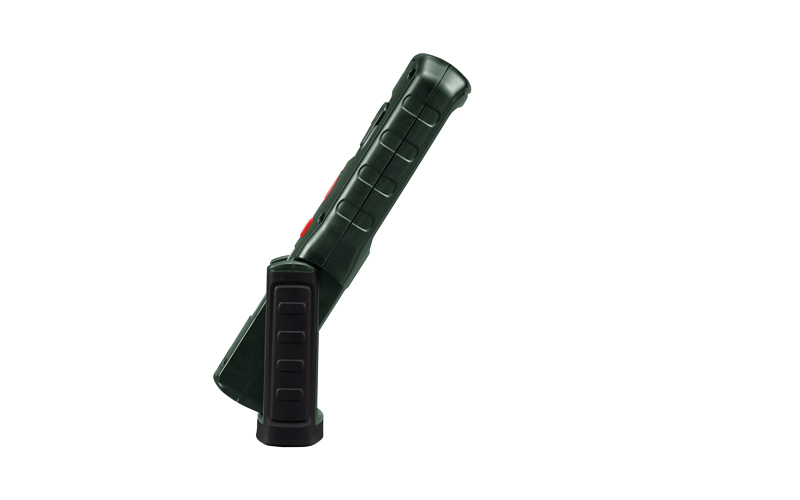

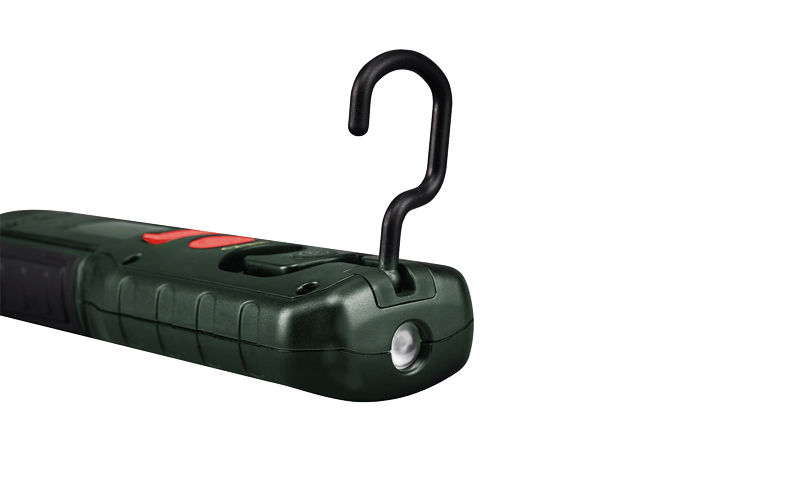

Top hook rotates 360 degrees. Bottom magnet and rear magnets are strong enough to make the lamp attached on the metal surfaces. Bracket provides the lamps can be used in 9 positions. Charging indicator and battery meter 2 in 1, helps you to evaluate the batter status and recharge the inspection lamp in time. 1 meter USB cable is supplied together with the lamp.
| Art. number | P08DM-N01 |
| Power source | 12 x SMD (main) 1 x SMD(torch) |
| Rated power (W) | 6W(main) 1.5W(torch) |
| Luminous flux(±10%) | 100-700lm(main) 100lm(torch) |
| Color temperature | 5700K |
| Color rendering index | 80(main) 70(torch) |
| Bean angle | 112°(main) 18°(torch) |
| Battery | 18650 3.7V 2000mAh |
| Operating time(approx.) | 2.5-5.5H(main) 6H(torch) |
| Charging time(approx.) | 3H |
| Charging voltage DC (V) | 5V |
| Charging current (A) | 1A |
| Charging port | Micro USB |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz |
| Charger included | No |
| Charger type | EU/GB |
| Switch function | Torch-main-off, |
| Protection index | IP54 |
| Impact resistance index | IK07 |
| Service life | 25000 h |
| Operating temperature | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C |
| Art. number | P08DM-N01 |
| Product type | handlamp |
| Body casing | ABS+PMMA |
| Length (mm) | 58 |
| Width (mm) | 31 |
| Height (mm) | 201 |
| N.W. per lamp (g) | 230g |
| Accessory | Lamp, manual,1m USB-Micro USB cable |
| Packaging | color box |
| Carton quantity | 25 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
N/A
Q: Where we can print brand logo?
A: On the position under the front LED window.
Q: How to realize the rating label?
A: 3 methods, silk print, laser print or sticker. Suggestion is laser print.
