What's The Difference between A Spotlight And A Flood Light?

Selecting the wrong commercial lighting fixture creates immediate problems for facility managers and project planners. You waste valuable energy, suffer from poor visibility, and risk severe compliance issues like light pollution or blinding glare. High lumen output alone never guarantees functional illumination on a job site. The real difference relies entirely on how a specific fixture distributes its light across a given area.

We will break down exactly how to evaluate beam spreads for your commercial site. You will learn the technical differences between focused beams and wide-angle washes. This guide provides an application-based framework to align your hardware directly with daily operational requirements. By understanding these optics, you can prevent costly specification errors and ensure optimal visibility for your team. You will discover exactly how to balance intensity and coverage to meet strict safety standards.

Key Takeaways

• Beam Angle is the Differentiator: Spotlights produce a narrow, concentrated beam (typically under 45 degrees); flood lights project a wide beam (up to 120 degrees) to illuminate broad areas.

• Intensity vs. Coverage: Spotlights prioritize high intensity (candela/lux) over a long distance. A flood light prioritizes broad, uniform coverage.

• Application Rules: Use spotlights for architectural highlighting, targeted task visibility, and long-distance throws. Use flood lights for parking lots, broad security perimeters, and large industrial workspaces.

• Specification Overlap: In temporary or operational setups, an LED work light often utilizes hybrid or adjustable beam spreads to combine task-level focus with area illumination.

The Core Distinction: Beam Angle and Optics

To choose the right fixture, we must first define beam spread. Optics, including internal lenses and reflectors, dictate the exact angle light exits a fixture. These components shape the raw output from the diode into a usable pattern. Engineers carefully design these optical systems to either compress or expand the light path.

The lighting industry uses a standard 45-degree threshold to separate these two primary categories. Spotlights feature a tight beam angle measuring under 45 degrees. Conversely, a Flood Light features an angle greater than 45 degrees. Manufacturers often design these wide-angle fixtures to reach spreads between 90 and 120 degrees.

You must understand the critical difference between Lumens and Center Beam Candlepower (CBCP). A spotlight and a wide-beam fixture might share the exact same lumen rating and wattage. However, they will look entirely different in practice. The spotlight concentrates all its lumens into a highly intense center point. This creates a blindingly bright spot over a small area. The wide-angle fixture disperses those same lumens evenly across a massive footprint. As a result, the peak intensity drops, but the coverage area expands significantly.

Professionals use the National Electrical Manufacturers Association (NEMA) beam spread system to evaluate light distribution objectively. This system categorizes fixtures based on their horizontal and vertical beam spreads. We classify these spreads into seven distinct types.

NEMA Beam Spread Classifications

Spotlight Specifications and Best Use Cases

A spotlight carries a very specific technical profile. It produces exceptionally high candela at its center point. Manufacturers engineer these fixtures to produce minimal spill light outside the primary beam. This design achieves a long "throw" distance. You can mount these fixtures far away from the target object while still maintaining high lux levels at the destination.

Commercial facilities deploy these focused fixtures for highly specific applications. They excel when you need to draw attention to a single focal point or penetrate darkness over a long range. We typically see them utilized in the following primary commercial applications:

• Architectural accent lighting: Designers use narrow beams for grazing textured facades, illuminating structural columns, and highlighting commercial signage.

• Targeted security: Facilities point narrow beams at specific entry points, distant gates, or high-risk blind spots.

• Directional high-mast lighting: Planners use tight beams on extremely tall poles to push light down to the ground without scattering it into the sky.

• Flagpole illumination: Specialized narrow optics ensure light hits the flag directly without washing out the surrounding night sky.

You must watch out for specific implementation risks when deploying these fixtures. Using a spotlight at a low mounting height creates severe glare. It produces harsh, high-contrast shadows. These deep shadows can obscure visibility rather than enhance it. Pedestrians and drivers moving through a highly focused beam will experience temporary blindness. Always mount these fixtures high above eye level or aim them strictly at inanimate targets.

Flood Light Capabilities and Broad-Area Applications

Wide-beam fixtures feature a vastly different technical profile. They maximize the illumination footprint. Because they stretch the light over a large area, they produce lower peak intensity at any single point. Their primary goal is to provide uniform lux distribution across horizontal or vertical planes. They eliminate dark spots and create safe, evenly lit environments.

These fixtures serve as the workhorses for exterior commercial illumination. When you need to light up a massive space, you rely on wide-angle dispersion. They ensure workers, vehicles, and security cameras can operate safely at night. We typically specify them for the following broad-area applications:

• Perimeter security and CCTV integration: Wide-angle illumination provides the necessary ambient light for camera sensors. This eliminates shadows where trespassers might hide.

• Parking lots and loading docks: Uniform light distribution helps drivers navigate safely and allows workers to load freight without tripping hazards.

• Warehouse exteriors: Illuminating large walls and walkways deters vandalism and ensures safe pedestrian transit around the building.

• Sports courts and facade washing: High-output wide beams evenly wash tennis courts, basketball courts, and massive building exteriors.

Despite their utility, these fixtures carry significant implementation risks. Wide-angle dispersion inherently increases the risk of light trespass. If you mount them incorrectly, the light will easily spill onto neighboring properties. This creates nuisance issues and violates local ordinances. It also contributes heavily to light pollution. You must pay careful attention to shielding. Use visors or baffles to direct the light downward. Always follow Dark Sky compliance criteria to protect the nighttime environment and maintain community goodwill.

Decision Framework: How to Evaluate and Specify Your Fixture

Selecting the right fixture requires a systematic approach. You cannot simply guess the beam angle or wattage. If you specify the wrong optics, your lighting project will fail visually and functionally. We recommend following a strict decision framework to guarantee success.

1. Mounting Height to Target Distance: You must calculate the exact distance between the fixture and the target area. We use a standard rule of thumb. The further the light source sits from the target, the narrower the beam needs to be. A wide beam mounted 50 feet away will dissipate before it reaches the ground. A narrow beam mounted 10 feet away will create a tiny, blinding hotspot. Match the NEMA type directly to your mounting height.

2. Safety and Glare Mitigation: Assess the viewing angles of everyone interacting with the space. Consider pedestrians, drivers, and workers. Wide-beam fixtures mounted too low cause severe blinding glare. You must aim fixtures away from direct lines of sight. When illuminating pathways, angle the fixtures downward to prevent light from hitting people directly in the eyes.

3. Energy Efficiency and Wattage Assumptions: Many facility managers make a critical mistake here. They over-spec the wattage on a wide fixture hoping to achieve a longer throw distance. This simply wastes electricity and creates massive light pollution. If you need light to travel further, do not increase the wattage. Instead, switch to a narrower NEMA classification. A tighter beam pushes the light further using a fraction of the energy.

4. Regulatory Compliance: Always check local municipal ordinances before selecting wide-dispersion fixtures. Many cities strictly enforce BUG ratings. BUG stands for Backlight, Uplight, and Glare. High uplight ratings violate Dark Sky ordinances. High backlight ratings cause property line disputes. Review the photometric data sheet for every fixture to ensure its BUG rating complies with your local zoning laws.

Task-Specific Overlap: When to Deploy an LED Work Light

Real-world operational environments rarely fit perfectly into one category. Construction sites, mechanical bays, and emergency response zones often require elements of both beam types simultaneously. Workers need broad ambient light to navigate the site safely. However, they also need intense, focused light to perform intricate tasks inside deep cavities or engine bays. Bridging this gap requires specialized equipment.

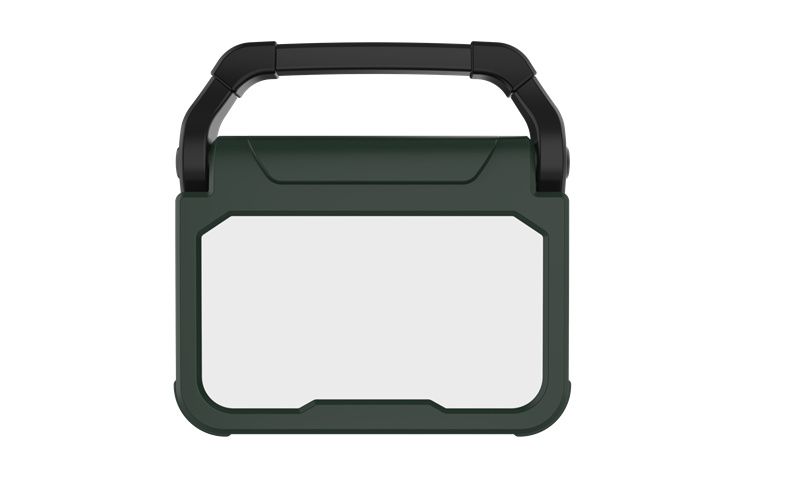

This is precisely where a commercial LED Work Light proves invaluable. These fixtures bridge the gap between permanent wide-area illumination and highly targeted spotting. Manufacturers design them specifically for dynamic, unpredictable environments. They provide exceptional versatility when permanent installations fail to meet immediate operational needs.

Many premium portable fixtures utilize hybrid optics. They feature a combination of distinct diode arrays. They use wide-angle LEDs to create immediate ambient visibility around the workspace. Simultaneously, they incorporate a localized spot optic. You can activate this spot optic for deep-cavity task work. This hybrid approach allows a single worker to light up a dark room while also inspecting a specific electrical panel.

You must weigh portability against fixed installation. Permanent exterior fixtures cost significant time and capital to install. Sometimes, mounting a permanent fixture is structurally unfeasible or economically unjustifiable. Portable fixtures serve as the perfect flexible, temporary solution. You can move them exactly where you need them, adjust the beam spread on the fly, and pack them away when the job concludes. They keep your crew safe without requiring permanent electrical conduit runs.

Conclusion

The choice between a spotlight and a wide-area fixture always comes down to the required beam angle for your specific environment. High lumen output matters very little if the optics distribute that light poorly. Focused beams provide necessary intensity over long distances, while wide beams deliver crucial uniformity across broad spaces.

Before reviewing fixture data sheets or making a purchase, you must define your exact parameters. Measure your required coverage area and confirm your mounting heights. Determine the target lux levels required for safety and task visibility. By aligning these physical dimensions with the correct NEMA beam classification, you will ensure optimal performance, maintain regulatory compliance, and eliminate hazardous glare on your site.

FAQ

Q: Can a flood light be used for security cameras?

A: Yes, they are generally preferred for wide-angle camera lenses. They eliminate dark spots and provide the necessary ambient illumination for the camera sensor to capture clear footage. However, you must position them carefully. Provided they don't wash out the camera sensor with direct glare, they offer superior perimeter security coverage.

Q: Is a spotlight brighter than a flood light?

A: Not necessarily. A spotlight appears much brighter at its center point because it produces higher candela. It focuses all its energy into a tight space. However, both fixtures may output the exact same total light volume, measured in lumens. The difference lies entirely in how they distribute that volume.

Q: How do I stop my flood light from blinding neighbors?

A: You have several reliable options to prevent light trespass. First, specify a fixture with a narrower beam angle. Second, lower the mounting angle to aim the beam directly at the ground. Finally, install physical glare shields, baffles, or visors to block the light from spilling across the property line.
