Selecting the wrong outdoor lighting creates instant headaches for any property owner. You might accidentally flood a neighbor's bedroom or leave critical walkways in dangerous shadows. Lighting mistakes frequently happen when buyers guess instead of calculate. Choosing the right specifications prevents blinding glare, wasted energy, and severe light trespass into adjacent spaces.
A poorly sized fixture compromises security camera footage by washing out the lenses. Precision ensures you illuminate exactly what you need without causing unnecessary neighborhood friction. In this article, we will break down the exact math needed to evaluate outdoor lighting correctly.
You will learn how to navigate modern lumen metrics, beam angles, and variable mounting heights. This guide provides a straightforward, calculation-based framework to confidently shortlist your ideal lighting solution. We will help you select the exact fixture required for specific outdoor, commercial, or portable applications.
Lumens over Watts: Modern evaluation relies on lumens required per square foot (foot-candles), not legacy wattage metrics.
Height Dictates Output: Mounting height changes the required beam angle and lumen count; higher mounts require narrower angles or higher outputs to maintain ground illumination.
Application Context is Crucial: A fixed security light requires different specifications (e.g., IP65+, wide spread) compared to a highly directional outdoor LED work light.
Right-Sizing Prevents Light Pollution: Over-illuminating creates camera glare and neighbor disputes; precise sizing ensures compliance with basic dark-sky principles.
When professionals discuss lighting size, they rarely mean just the physical box. They evaluate three distinct metrics. These include physical dimensions, lumen output, and beam angle. Understanding this distinction prevents frustrating purchase errors.
Physical size matters most when you replace existing bulbs in permanent housings. Industry-standard bulb nomenclature often confuses consumers. You will frequently see codes like PAR (Parabolic Aluminized Reflector) and BR (Bulged Reflector). These letters describe the bulb shape and reflective properties.
The numbers following these letters indicate the bulb diameter. Industry standards dictate a simple 1/8-inch rule here. You simply divide the number by eight to find the diameter in inches. A standard PAR38 bulb measures 38 eighths of an inch across. This equates to 4.75 inches. Knowing this rule ensures your new bulb physically fits into older security housings.
Modern LED technology changed how we measure lighting power. Output capacity serves as the primary decision driver today. We measure this output in lumens. Lumens tell you exactly how much visible light a fixture produces. If you want a brighter space, you need more lumens. When you size a Flood Light, you must match the lumen capacity to your specific coverage area.
Many people still buy lights based on wattage. This habit causes significant issues. Wattage measures electrical power consumption, not actual brightness. Decades ago, wattage directly correlated to brightness. Today, LEDs produce massive amounts of light using very little power.
A modern 50W LED fixture easily replaces a legacy 400W metal halide unit. Both produce roughly the same lumen output. If you buy a 400W LED expecting a one-to-one replacement, you will face severe problems. The resulting glare will blind everyone nearby. You must abandon old wattage assumptions. Always size new purchases based strictly on lumen ratings.
Guessing leads to poor lighting layouts. Optimal illumination requires a simple mathematical approach. You can determine the exact lumen requirement using a proven four-step framework. This method relies on industry-standard foot-candle targets.
You must first measure the target illumination zone accurately. Grab a measuring tape or use a laser distance tool. Measure the length and width of the specific area you want to light. Multiply the length by the width. This gives you the total square footage. Be realistic about your boundaries. Do not include spaces beyond your property line or areas needing total darkness.
A foot-candle measures light intensity. It represents the amount of light hitting a surface exactly one foot away from a standard candle. Different applications require different foot-candle levels. Industry guidelines provide reliable baseline recommendations for various spaces.
Table 1: Industry Recommended Foot-Candle Targets
Application Area | Recommended Foot-Candles | Primary Goal |
|---|---|---|
Residential Backyard | 1 – 2 FC | General visibility and safety |
Driveways & Walkways | 2 – 4 FC | Navigation and trip prevention |
Commercial Parking Lots | 5 – 10 FC | Security and vehicle identification |
Active Work Zones | 15 – 30+ FC | Detailed task execution and hazard avoidance |
Once you have your measurements and target intensity, apply the sizing formula. This equation forms the core of your purchasing decision.
Total Area (sq ft) × Target Foot-Candles = Total Required Lumens
Let us look at a practical example. Imagine a residential driveway measuring 20 feet by 30 feet. This gives you a 600 square foot area. You want adequate navigation lighting, so you select a target of 3 foot-candles. You multiply 600 by 3. You need a fixture producing approximately 1,800 lumens to light this driveway properly.
Mounting height drastically alters how light behaves. The Inverse Square Law dictates light dissipation. As light travels further from the source, it spreads out and loses intensity. You must adjust your fixture selection based on where you install it.
Under 10 feet: Low mounts require wider beam angles. You should look for fixtures offering 100° spreads or wider. Standard lumen outputs work perfectly here. High-lumen fixtures mounted this low will cause severe glare.
15–20 feet: Higher installations require focused beam angles. Look for spreads around 60° to 90°. This tighter angle prevents light from scattering into the atmosphere before it hits the ground. You will generally need higher total lumens to push the light down effectively.
Lumens tell you how much light you have. Beam angles tell you where that light goes. The combination of both factors defines the overall effectiveness of your lighting plan.
Wide-angle fixtures disperse light across a broad horizontal plane. They excel at close-range illumination. You should deploy them for driveways, patios, and residential walkways. Wide beams eliminate harsh shadows in immediate areas. However, they lack the focused punch to illuminate distant objects.
Narrow-angle fixtures concentrate light into a tight, intense beam. They act more like spotlights. You need narrow angles for architectural highlighting or tall flagpoles. They also serve perfectly for high-mast commercial installations. The concentrated beam ensures light reaches the ground from extreme heights.
Different tasks demand completely different fixture designs. You cannot use a residential wall fixture for a commercial construction site. Match the physical fixture type to your operational needs.
Permanent Fixtures: Wall packs and knuckle-mount designs serve fixed locations. Wall packs sit flush against buildings. They push light downward and outward. Knuckle mounts allow you to adjust the precise aiming angle post-installation. They handle permanent security roles perfectly.

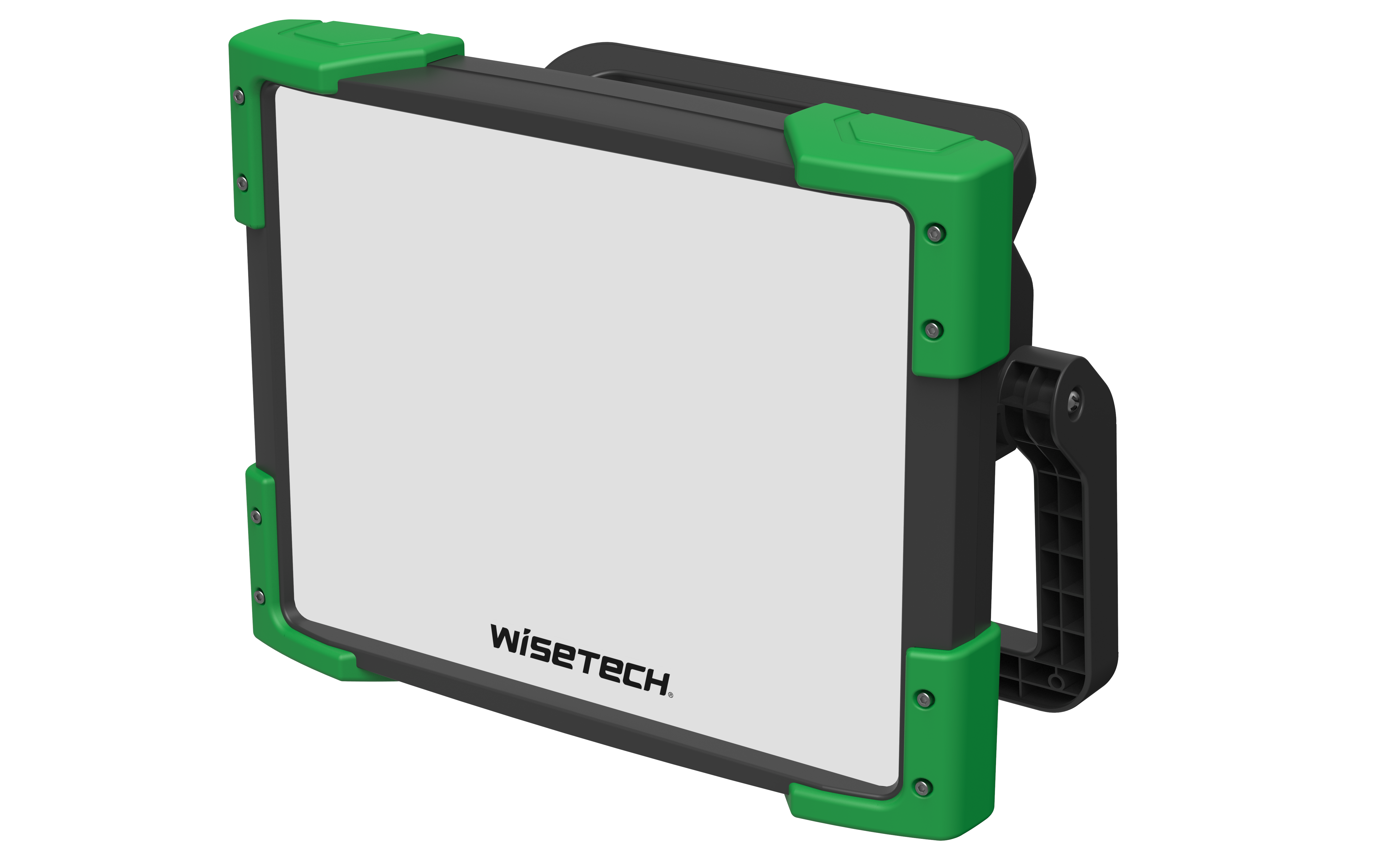

Task-Specific: Portable jobs require flexibility. Sizing an Outdoor LED Work Light focuses heavily on adjustable stands and localized high-lumen density. These units require rugged casings. They provide temporary daytime-level visibility without the constraints of permanent wiring.
Selecting the right size goes beyond raw brightness. You must ensure the fixture survives its environment. You also have a responsibility to avoid creating public nuisances.
Outdoor lighting faces brutal environmental conditions. Rain, dust, and temperature swings quickly destroy cheap components. You must evaluate Ingress Protection (IP) ratings carefully. Any exposed outdoor area requires a minimum rating of IP65. This ensures the casing fully blocks dust and withstands low-pressure water jets.
Heat dissipation represents another critical durability factor. High-lumen LEDs generate significant internal heat. If they cannot shed this heat, the internal diodes degrade rapidly. Look for fixtures featuring robust aluminum heat sinks. Good thermal management ensures scalability and long-term reliability.
Bigger is rarely better in outdoor lighting. Over-illuminating creates serious implementation risks. The most common issue involves light trespass. This happens when your fixture shines directly into a neighbor's window. It creates immediate disputes and potential legal headaches.
Many municipalities strictly enforce Dark Sky ordinances. These laws require fully shielded fixtures. They prevent upward light scatter and reduce urban skyglow. Precise sizing ensures local compliance automatically. Furthermore, oversized lumen outputs routinely wash out security cameras. Excessive glare blinds the camera sensor. This renders your security footage completely useless during nighttime events.
Many users add Passive Infrared (PIR) motion sensors or photocells. These additions improve efficiency. However, they impact the physical footprint of your setup. Integrated sensors require a minimum electrical load to function properly. Ensure your chosen LED fixture meets this minimum requirement. Additionally, protruding sensors might limit how far you can angle a knuckle-mount fixture upwards.
You now understand the variables. The final step involves filtering the market options. Using a structured decision matrix speeds up this process. It prevents emotional purchasing.
Define your primary objective clearly. Are you simply replacing a burnt-out bulb in an old housing? Are you lighting a brand-new commercial parking lot? Or do you need temporary, aggressive illumination for a nighttime repair job? Your core requirement dictates everything else.
Run your square-footage and height calculations. Trust the math. Do not buy a 10,000-lumen fixture for a space that only requires 2,000 lumens based on the formula.
Once you know the required lumens, filter your options by environment. Ensure the IP rating matches your climate. Select the appropriate Correlated Color Temperature (CCT). CCT dictates the visual warmth of the light.
3000K: Produces a warm, yellowish light. Best for residential ambiance and patio relaxation.
4000K-5000K: Produces a crisp, bright white light. Ideal for security zones, parking lots, and task areas.
Decision Matrix Chart: Fixture Selection Guide
Application Type | Primary Sizing Metric | Ideal CCT | Recommended Beam |
|---|---|---|---|
Residential Security | Moderate Lumens, Wide Coverage | 4000K | 100° - 120° |
Commercial High-Mast | High Lumens, Downward Punch | 5000K | 60° - 90° |
Portable Jobsite Work | High Lumens, Portability | 5000K | Adjustable / 120° |
Landscape Highlighting | Low Lumens, High Precision | 3000K | Spot (Below 45°) |
For commercial or large-scale rollouts, do not guess. Request formal photometric plans from the manufacturer. These digital models map exactly how the light will behave on your specific property. Photometric plans validate your math before you execute bulk purchases. They provide complete peace of mind.
Optimal lighting sizing is a strict mathematical equation. It is never a guessing game. You must evaluate lumen output, beam angles, and mounting heights collectively. Relying on outdated wattage metrics leads directly to poor performance and excessive glare.
Take action today. Measure your target space carefully. Check your intended mounting heights. Determine your required foot-candles based on the application. Finally, compare your calculated numbers against the technical specifications of your shortlisted fixtures. This evidence-based approach guarantees excellent visibility, maintains neighborhood harmony, and ensures complete regulatory compliance.
A: It depends on your total square footage and desired foot-candles. First, calculate your total required lumens (Area × Target Foot-Candles). Then, divide that total number by the lumen output of your chosen fixture. This simple calculation gives you the exact total number of lights required.
A: A modern LED equivalent typically ranges between 50W and 70W. These fixtures produce roughly 5,000 to 7,000 lumens. This output matches the legacy halogen brightness while consuming significantly less electrical power.
A: Yes. Light dissipates rapidly over distance due to the Inverse Square Law. Higher mounts require higher total lumens or much tighter beam angles. This adjustment is necessary to deliver the exact same brightness level down at ground level.
A: For portable task lighting, look for a 30W to 50W fixture. This typically produces 3,000 to 5,000 lumens. This sizing provides adequate intensity for a 10 to 15-foot working radius without causing severe eye strain during close-proximity tasks.
