You need more than basic definitions to understand how broad-beam illumination solves specific site, security, and operational challenges. A simple wattage swap is no longer enough for modern facilities. We define a Flood Light as an artificial, high-intensity, broad-beamed luminaire designed to bathe large areas in uniform illumination. Choosing the wrong fixture often leads to severe financial and operational consequences. You might experience light trespass, local compliance violations, poor thermal management, or heavily inflated energy costs over time. We designed this guide to help you avoid those common pitfalls. This article provides an objective framework for evaluating, shortlisting, and implementing commercial and high-end residential flood lighting. You will learn the core mechanics of broad-beam optics, discover critical evaluation dimensions, and understand exactly how to specify the right luminaire for your unique environmental conditions.
Defining Characteristic: Flood lights are defined by their wide beam angle (typically 45° to 120°+), not just their brightness.
The Modern Standard: LED technology has entirely phased out halogen and metal halide options due to a 70–80% reduction in energy consumption and superior thermal management.
Critical Procurement Metrics: Decision-makers must evaluate Lumens per Watt (efficacy), Ingress Protection (IP) ratings, and mounting heights before shortlisting.
Use-Case Alignment: Fixture selection must map directly to the application—from permanent architectural lighting to portable LED work lights for dynamic job sites.
Buyers often confuse brightness and optical design. We must separate these concepts. A true broad-beam luminaire relies on specific internal geometry to disperse light across a wide axis. This optical dispersion eliminates harsh shadows and creates uniform visibility across large zones.
Light dispersion follows fundamental physics. Specialized reflectors and precision lenses control how photons exit the fixture. A narrow beam concentrates photons into an intense, targeted spot. Conversely, a broad-beam fixture diffuses those same photons across a much wider footprint. Manufacturers typically engineer these optics to achieve beam angles between 45 degrees and 120 degrees. This wide spread provides the seamless coverage necessary for parking lots, building facades, and sports arenas.
Modern fixtures rely on three integrated components to maintain performance.
Diode/Chip Array: High-output LED arrays serve as the primary light engine. Engineers design these arrays for maximum lumen distribution across the target area.
Heat Sink: Thermal management remains critical for longevity. High-wattage components generate intense heat. A robust heat sink draws this thermal energy away from the diodes. This prevents premature failure and lumen depreciation.
Housing: Manufacturers typically use die-cast aluminum. This rugged material withstands severe environmental stress. It resists corrosion, impacts, and intense UV exposure over decades of continuous use.
Understanding these core mechanics transforms your procurement strategy. Novice buyers often overpay for raw wattage. They mistakenly believe higher wattage guarantees better visibility. Experienced professionals look closely at optical design and efficacy. Efficacy measures how many lumens a fixture produces per watt of consumed electricity. High-efficacy chips paired and superior lenses deliver more usable light. They achieve this while drawing significantly less power from the grid.
Overlapping lighting categories frequently cause specification errors. Facility managers sometimes install the wrong fixture type for their required application. We must clarify these categories objectively. This helps you select the exact optical profile your project demands.
Comparison of Directional Lighting Categories
Lighting Category | Beam Angle | Primary Setup | Best Application Use Cases |
|---|---|---|---|
Broad-Beam Fixtures | Wide (45°–120°) | Hardwired, permanent mounting | Broad area coverage, parking lots, exterior building security, sports arenas. |
Spotlights | Narrow (Under 45°) | Hardwired, precision-aimed | Highlighting architectural details, signage, or specific landscape features. |
Work Luminaires | Variable, often hybrid | Portable, plug-in or battery | Temporary job sites, mechanic shops, and emergency repair areas. |
These permanent fixtures excel at illuminating expansive outdoor spaces. They push light across wide areas to ensure public safety and operational visibility. Installers hardwire them into the local electrical grid. You will find them mounted on tall poles, building exteriors, or dedicated stanchions. They serve as the backbone of exterior commercial lighting design.
Spotlights deliver precision. They utilize narrow beam angles under 45 degrees. Designers use them to draw attention to specific focal points. You might use them to illuminate a corporate logo, a flagpole, or a unique architectural column. Like their broad-beam counterparts, they require hardwired permanent installation. However, you must aim them precisely to maximize their visual impact.

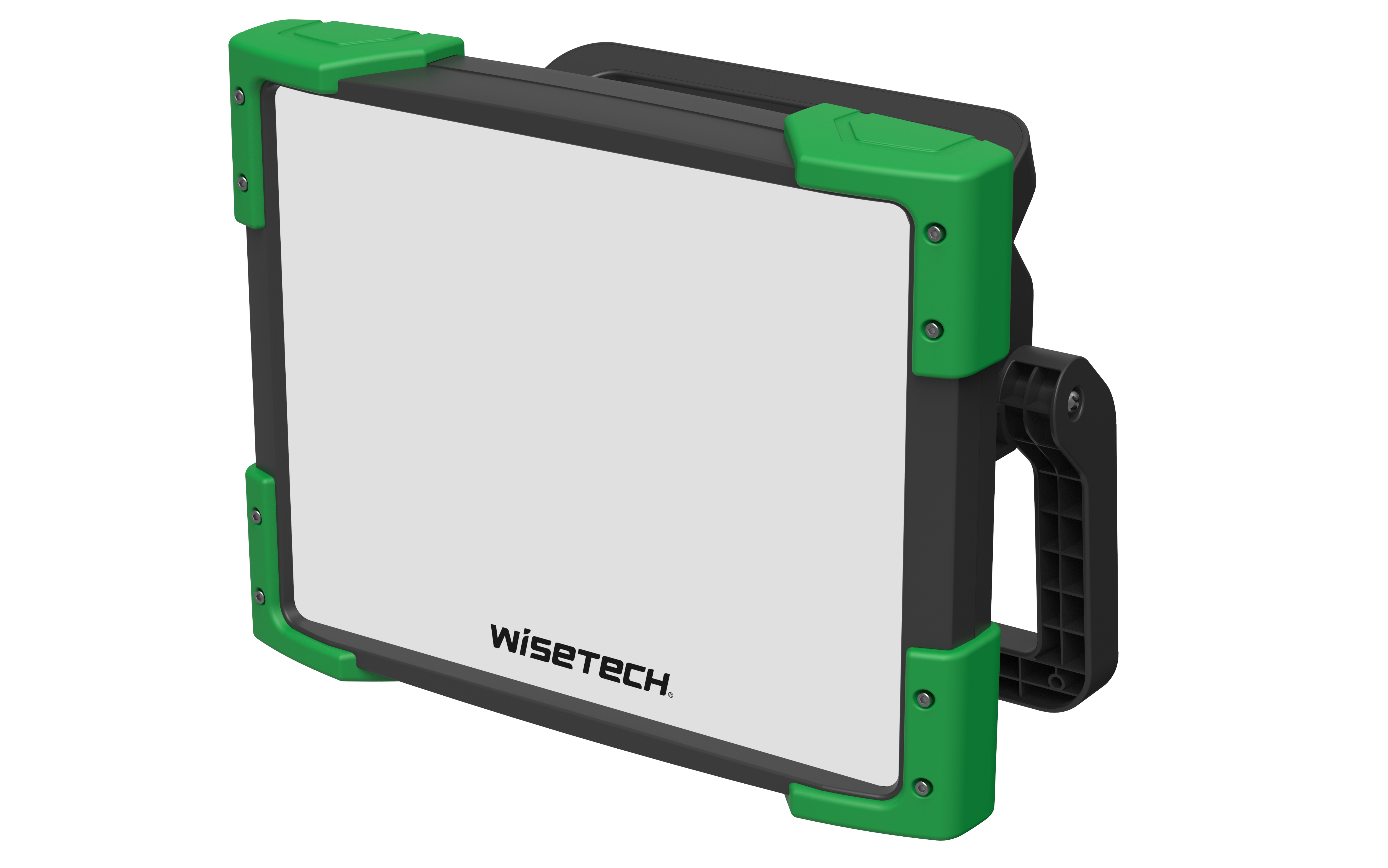

Dynamic environments require a completely different approach. An LED Work Light provides intense, portable illumination for temporary applications. Construction crews, mechanics, and emergency responders rely heavily on these units. They feature variable or hybrid beam angles. Manufacturers build them to endure repeated transit, drops, and harsh job site conditions. They utilize plug-in cords or high-capacity batteries for maximum deployment flexibility.
Choosing the right fixture requires rigorous technical evaluation. You must analyze specific performance metrics to guarantee long-term reliability. We outline the four most critical dimensions buyers must assess.
The industry has completely abandoned wattage as a measure of brightness. We now measure actual light output in lumens. Different applications require vastly different lumen packages.
Residential/Security: Home exteriors and small pathways generally need 1,000 to 5,000 lumens.
Commercial/Industrial: Large parking lots and industrial yards demand 10,000 to over 50,000 lumens.
Expert Tip: Always evaluate fixture efficacy. Target at least 120 lumens per watt. High efficacy guarantees operational efficiency. You get the brightness you need while minimizing electrical consumption.
Outdoor fixtures face constant environmental assaults. Ingress Protection (IP) and Impact Protection (IK) ratings quantify a fixture's durability objectively. You must verify these ratings before purchasing.
IP Ratings: Look for a minimum of IP65 for general outdoor use. This ensures the unit resists rain and dust. Heavy industrial or marine environments require IP67 ratings. This higher standard protects against temporary water immersion.
IK Ratings: Assess mechanical impact resistance using the IK scale. Public areas prone to vandalism require IK08 to IK10 ratings. These fixtures feature reinforced lenses and ruggedized housings to survive direct strikes.
Correlated Color Temperature (CCT) dictates the visual tone of the light. We measure it in Kelvin (K). The right CCT improves contrast and visual comfort.
3000K (Warm): Creates an inviting atmosphere. Best for architectural facades and hospitality venues.
4000K (Neutral): Offers clear, balanced visibility. Ideal for general commercial pathways and retail exteriors.
5000K (Daylight): Maximizes contrast and sharpness. Security cameras perform best under this spectrum. Use it for high-security zones, industrial yards, and sports facilities.
Modern lighting networks require intelligent controls. Static fixtures waste electricity by burning at full intensity all night. You should evaluate compatibility with advanced control systems. Passive Infrared (PIR) motion sensors trigger illumination only upon detecting movement. Dusk-to-dawn photocells automatically activate the array when ambient light drops. Large facilities should ensure compatibility with their smart Building Management Systems (BMS).
Procuring excellent hardware represents only half the battle. Poor installation ruins even the best commercial fixtures. You must navigate zoning laws, geometric planning, and thermal physics to ensure project success.
Over-illuminating property lines carries severe risks. Stray light bleeding into residential windows causes neighbor complaints. Many municipalities impose strict fines for ordinance violations. You must actively control where your light lands.
Solution: Utilize fixtures featuring precision optical arrays. Install physical glare shields or visors to block stray beams. Adjustable trunnion mounts allow installers to angle the light strictly where intended. This proactive approach keeps you fully compliant.
Geometry dictates lighting performance. Incorrect mounting heights destroy visibility and waste money.
Reality: Mounting a high-lumen fixture too low creates blinding glare for pedestrians and drivers. Conversely, mounting it too high dilutes the foot-candle density. The light dissipates before reaching the ground.
Best Practice: Never guess fixture placement. Require detailed photometric lighting plans for all commercial spaces before finalizing fixture counts. These computer-generated models prove exactly how light will hit the pavement.
Heat degrades electronic components rapidly. High ambient temperatures pose a major threat to outdoor installations. Enclosed fixtures trap internal heat. When deployed in high-heat geographical areas, they experience faster diode degradation.
You must verify the operating temperature ranges listed in manufacturer spec sheets. Ensure the fixture features adequate external heat sinking. Proper thermal shedding guarantees the unit will reach its promised lifespan without dimming prematurely.
A structured procurement methodology eliminates guesswork. Follow these systematic steps to specify commercial-grade illumination correctly.
Define the Required Illuminance: Do not rely on visual estimates. Measure your exact target area. Determine the required foot-candles based on OSHA guidelines or local safety standards. Precision here prevents costly under-lighting or over-lighting.
Establish the Power Infrastructure: Inspect your existing electrical backbone. Confirm the available voltage at the installation site. Common commercial voltages include 120V and 277V. You must also verify if existing wiring can safely support the intended electrical load.
Request Documentation: Never accept marketing claims at face value. Always demand certified LM-79 and LM-80 test reports from the manufacturer. LM-79 reports verify the stated lumen output and electrical characteristics. LM-80 reports prove the long-term lifespan and lumen maintenance claims of the LED chips.
Understanding these fixtures ultimately requires matching broad-beam optical design to your specific environmental challenge. You cannot treat high-output illumination as a generic commodity. Proper specification demands careful attention to technical metrics and physical constraints.
Your procurement sequence should follow a strict protocol. First, assess the physical space and outline your safety requirements. Second, define the exact beam angle and lumen package required for the job. Third, strictly enforce IP and IK durability standards to protect your investment. Finally, plan a highly controlled, compliant installation to avoid local zoning penalties.
We recommend taking immediate action on your next project:
Consult a certified lighting specialist to request a formal photometric analysis.
Audit your existing property for light trespass and glare violations.
Browse a vetted catalog of commercial-grade fixtures engineered for your exact voltage and mounting requirements.
A: All security lights are typically flood lights due to their wide coverage. However, not all flood lights serve security purposes. Many illuminate stadium events or wash architectural facades.
A: It heavily depends on your mounting height and total area size. A standard 20-foot commercial pole typically requires 15,000 to 20,000 lumens to achieve adequate ground-level foot-candles.
A: Yes, you can dim them, but only if you specify 0-10V dimmable drivers. Not all standard LED fixtures include dimming capabilities right out of the box.
A: High-quality fixtures usually feature L70 ratings of 50,000 to 100,000 hours. This specification means they will retain at least 70% of their original brightness after reaching that duration.
