A small lamp can change how efficiently a difficult task gets done. Yet labels like COB often confuse buyers choosing a work light. COB describes how LED chips are packaged, not overall lamp quality. In this article, you will learn what COB means, where it performs well, and how to choose correctly.
● A COB work light uses Chip-on-Board LED technology. Multiple LED chips sit closely together on one board, creating a compact light-emitting area.
● COB describes the LED package, not the complete work light. Beam design, power source, runtime, heat control, durability, and mounting still matter.
● COB technology fits compact hand lamps, inspection lights, and portable flood lights because useful output can come from a small source.
● A COB work light is often practical for repairs, detailing, equipment maintenance, workshops, and other close-range tasks.
● COB does not automatically mean a narrow beam. Lenses, reflectors, and diffusers shape the final illumination.
● COB and SMD serve different design goals. Neither technology is automatically better for every application.
● Large spaces may need a wider flood, tripod, AC, hybrid, or multi-battery work light instead.
COB means Chip-on-Board. Several small LED chips are mounted closely together on one board. They operate as one compact light-emitting area instead of appearing as many separate LED points. This construction allows designers to place significant light output inside relatively compact work-light bodies.
For buyers, the important point is simple. COB identifies the structure of the LED source. It does not describe the lamp's battery, housing, beam angle, waterproofing, or mounting system.
A traditional LED arrangement may show several visible light points. A COB source places many chips much closer together. The illuminated surface can therefore appear more unified.
This design is useful when a manufacturer needs a compact lighting area. However, the finished beam still depends heavily on the optical system surrounding the LEDs. A well-designed lens can control the beam and reduce unwanted visual effects.
COB technology can appear in many lighting products. It becomes a work light when the complete lamp is designed for practical tasks.
That usually means users can position, carry, adjust, or mount it near a working area. Rechargeable batteries, magnets, hooks, rotating stands, dimming controls, and separate torch functions can make the lamp easier to use during repairs or inspections. Current product designs demonstrate several of these features.
No. COB does not define one fixed beam pattern.
A strip-style COB source can support broad flood illumination. Another COB lamp can use optics to create more controlled light. Some designs also combine a wide main light and a narrower top torch.
That distinction matters when comparing specifications. Buyers should check the actual beam angle and optical design instead of assuming every COB work light behaves alike.
COB technology works well in compact inspection lamps, magnetic hand lamps, rechargeable portable lights, and small flood lights. It can also support specialized lighting where accurate surface inspection matters.
Their designs may differ greatly. One lamp may prioritize portability and close inspection. Another may provide higher output for a larger working zone.
The COB label does not tell you everything needed for a purchasing decision. It does not guarantee long runtime, good thermal control, strong impact protection, suitable color quality, or useful mounting features.
Treat COB as one specification among several. The complete work light should match the environment, task distance, expected operating time, and required positioning.
Tip：Compare the whole lighting system, not the COB label alone.
Closely packed chips allow designers to create a relatively dense light source. This characteristic makes COB useful in lamps intended for mobile repair and close inspection.
Compact size can be especially valuable around machines or vehicles. Large lighting equipment may be difficult to position near components, while a smaller lamp can sit closer to the actual task.
A useful work light needs more than raw brightness. The beam should help users see details without creating distracting glare or unwanted light patterns.
Optical design makes a major difference here. Current COB products use lenses, adjustable brightness, and controlled beam designs to make illumination more practical.
Maximum output is not always the best setting. A powerful lamp placed close to a reflective panel can become uncomfortable.
Adjustable output lets users match the light level to each task. Existing COB designs include stepped brightness and stepless dimming, supporting both stronger illumination and lower close-range output.
COB chips occupy a concentrated area, so thermal design deserves attention. Heat must move away from the LED assembly effectively.
Some compact work lights use internal aluminum components to support heat dissipation. Battery protection can also help manage charging and operating risks.
Note：High lumen output has limited value when heat control or beam quality is poor.
COB places multiple chips together within one compact source. SMD designs use separate surface-mounted LED packages.
The difference affects how manufacturers arrange the lighting surface. However, buyers should avoid assuming the LED package alone determines final performance.
COB often suits compact inspection and task-lighting designs. SMD arrays can be useful when manufacturers want light distributed across a larger panel or around a wider area.
The manufacturer's current portfolio reflects this variety. Its range includes compact COB lamps alongside larger flood and 360-degree work-light designs using other LED arrangements.
A technician inspecting a narrow machine compartment has different needs from a team illuminating an entire renovation area.
COB may provide a convenient compact source for the first task. A large diffused or 360-degree work light may fit the second task better.
Comparison | COB Work Light | SMD Work Light |
LED arrangement | Chips grouped closely together | Separate LED packages |
Typical design strength | Compact task lighting | Broad panel lighting |
Common applications | Inspection, repair, hand lamps | Flood and area lighting |
Beam result | Depends on optics | Depends on optics |
Best choice | Close or mobile tasks | Wider working areas |
The best comparison starts with the task rather than the LED acronym.
Vehicle work often creates deep shadows. Engine parts can also block overhead lighting.
A compact work light can be positioned closer to the repair area. Magnetic surfaces, hooks, adjustable bodies, and a separate spotlight can support hands-free inspection around engines and narrow spaces.
COB lamps can support machine maintenance, control-cabinet inspection, workbench tasks, and localized repairs.
Portability matters because technicians rarely work from one fixed position. They may move from a bench to equipment, then into a narrow service area. A compact rechargeable lamp can follow them easily.
Some inspection work depends on more than brightness. Surface defects and color differences require suitable color rendering.
Specialized COB work lights can use high color-rendering performance, adjustable brightness, focused optics, magnets, and rotating positioning systems for detailing and paint inspection.
Rechargeable operation is valuable where mains power is inconvenient or unavailable. Battery indicators also help users estimate remaining operating capacity.
Compact lighting is therefore practical for field service, temporary repairs, and maintenance work away from fixed power.
Tip：For inspection work, specify beam quality and positioning needs before selecting lumen output.
Lumens measure total light output, but they do not explain where the light goes.
A smaller work light can still be useful when its beam matches the task. For example, compact COB designs can combine different output levels, adjustable positioning, and controlled optics.
Always evaluate brightness together with beam shape and working distance.
Power requirements vary widely. Rechargeable lamps provide mobility. AC lights support extended use near mains power. Hybrid systems can combine battery operation and corded power.
The broader work-light range includes DC, AC, hybrid, multi-battery, and tripod categories. This variety shows why power architecture should follow the working environment.
CRI becomes important when workers must judge colors, finishes, paint defects, or surface differences.
Specialized COB inspection lighting can provide high color-rendering performance alongside adjustable output. This combination is useful for tasks where accurate visual judgment matters more than maximum brightness.
A lamp may encounter dust, moisture, impacts, or unstable surfaces. Check relevant IP and impact-protection information for the intended environment.
Also examine magnets, hooks, brackets, stands, and adjustment angles. Current portable designs combine several of these features because usable positioning directly affects real working value.
A compact COB lamp may handle close work well. It may not be the most efficient choice for lighting an entire construction area.
Larger flood lights and tripod designs can provide substantially broader, higher-output illumination. The current work-light range includes options intended for workshops, construction sites, garages, and larger work areas.
Rechargeable lights support mobility, but batteries always create runtime limits.
For stationary work lasting many hours, an AC work light may make more sense. Current AC designs focus on consistent illumination for workshops, construction environments, and larger projects.

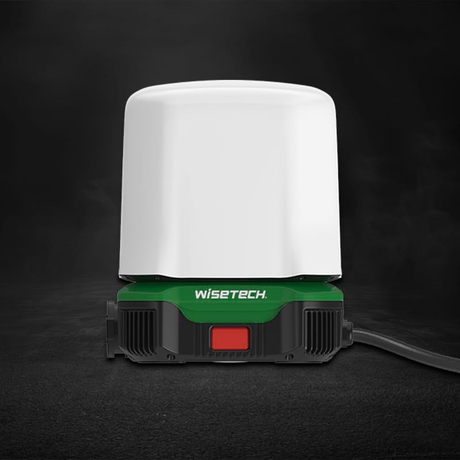

Some jobs require workers to illuminate several directions from one central point. A dedicated 360-degree area light may serve this requirement better than a compact inspection lamp.
The key lesson remains consistent: select the lighting format around the task, not simply around COB technology.
COB technology is not limited to one product shape.
It appears in slim hand lamps, inspection lighting, compact rechargeable flood lights, and specialized color-inspection lamps. These examples show how manufacturers can adapt one LED technology to different working conditions.
A work light must function as a complete tool. Brightness cannot compensate for poor positioning, weak housing, inconvenient controls, or an unsuitable power source.
The manufacturer's broader range reflects this system-level approach through portable, AC, DC, hybrid, multi-battery, and tripod solutions.
A work light delivers the most value when users can aim it correctly.
Magnets can hold a lamp on metal equipment. Hooks can suspend it nearby. Rotating stands let users change direction. These features free both hands for the actual task.
The best purchasing approach considers six factors together: beam, brightness, runtime, durability, mounting, and power.
COB may be a strong fit after those requirements are understood. It should not be the only reason for selecting a lamp.
A COB work light uses closely grouped LED chips for compact task illumination. Its value depends on beam control, power, durability, and positioning. WISETECH develops portable work lights across rechargeable, AC, hybrid, multi-battery, and tripod formats. Its practical designs combine flexible positioning, controlled illumination, durable construction, and adaptable power options to help users match lighting to real working conditions.
A: It means Chip-on-Board, where multiple LED chips form one compact source.
A: A COB work light suits compact tasks, while SMD often suits broader area lighting.
A: Check beam angle, lumens, runtime, mounting, protection, and power source.
A: Its compact source can appear intense. Dimming or better optics can improve comfort.
A: Yes, but batteries, housing, optics, controls, and protection also influence pricing.
A: It provides useful output from a compact LED area.
