Installing powerful auxiliary lighting transforms nighttime operations across construction sites, agricultural fields, and off-road trails. You need maximum visibility to operate machinery safely after dark. However, mounting these fixtures requires much more than simply driving a few screws into metal.
Improperly mounted lighting routinely causes structural fatigue, dangerous electrical faults, and reduced equipment lifespan. Vibration and harsh weather exposure can easily destroy a poorly secured Work Light. You must follow strict structural and electrical guidelines to prevent premature failures.
This guide details the end-to-end process of securing lighting to vehicles, heavy machinery, or stationary structural points. We provide an evidence-based, step-by-step framework to guarantee long-lasting performance. You will learn exactly how to achieve physical security, weatherproof integrity, and safe electrical integration.
Mounting Style Dictates Prep: Flush mounts require structural cutting; bracket mounts require vibration-resistant hardware.
Vibration is the Enemy: Relying on standard hardware without locking mechanisms (nyloc nuts, loctite) guarantees failure in high-movement environments.
Electrical Safety is Non-Negotiable: Proper wire sizing, inline fuses, and relays are mandatory to prevent harness meltdowns.
Portability vs. Permanence: Assessing when a magnetic or clamp-based portable work light is more cost-effective than a permanent hardwired installation.
Frame the business problem carefully before purchasing hardware. Determine if your operational environment requires fixed structural alterations or a temporary lighting solution. Assessing the physical demands of your workspace represents the crucial first step in any lighting project.
Mounting Style | Primary Advantages | Notable Drawbacks |
|---|---|---|
Bracket Mounting (Surface Mount) | Offers high adjustability and requires minimal vehicle or structure alteration. | Susceptible to snagging on debris; leaves the fixture exposed to direct physical impacts. |
Flush Mounting (Recessed) | Aerodynamic, highly secure, and protected from physical shear forces. | Requires permanent cutting; higher risk of moisture ingress if improperly sealed. |
Surface brackets give you immense flexibility for angling the beam. You can easily adjust the fixture as job site conditions change. However, surface-mounted fixtures remain vulnerable on tight forest trails or crowded construction sites.
Flush mounts solve this vulnerability by recessing the unit directly into the vehicle body. They deliver a clean, factory-installed appearance. Unfortunately, they demand permanent metal cutting. You must commit entirely to the placement location once you begin cutting.

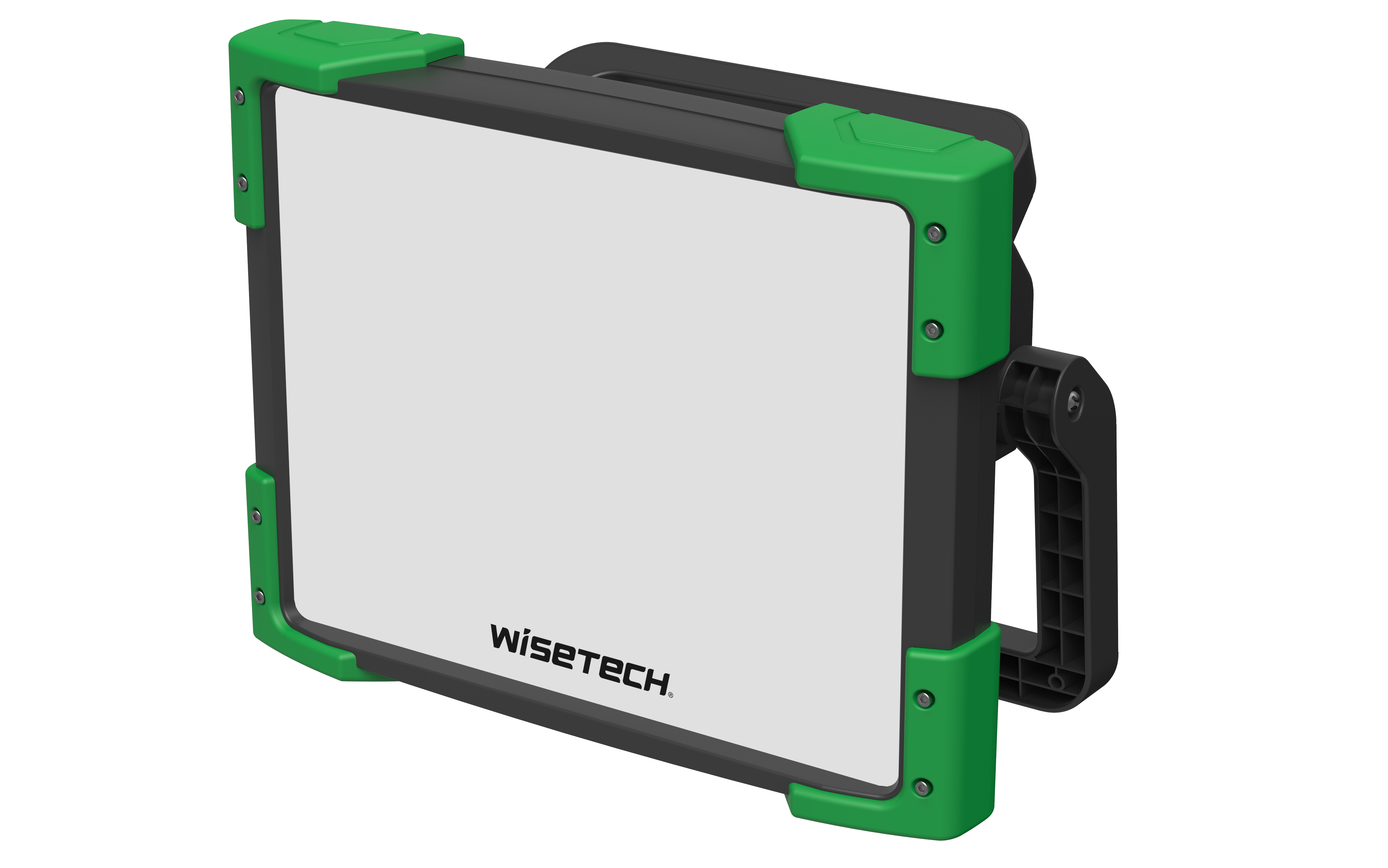

Consider portable alternatives before permanently altering expensive machinery. Assess magnetic bases or heavy-duty clamping systems for temporary deployments. A Portable Work Light provides reliable illumination exactly where you need it most. Evaluate your specific use cases to guide this decision. Choose this temporary route if you lease your equipment. It also makes sense if your lighting needs frequently shift between different machines across a large fleet.
Verify the load-bearing capacity of your intended mounting surface. You must check the underlying panel thickness carefully before drilling. Avoid mounting heavy LED arrays directly onto thin sheet metal. Install robust backing plates behind the panel to distribute the load evenly and prevent metal tearing.
Identify high-vibration and shock zones across your equipment. Mounting directly on engine cowlings introduces severe high-frequency vibration to the internal electronics. Attaching fixtures to roll cages, headache racks, or heavy structural bumpers generally provides a significantly more stable foundation. Less vibration directly translates to a longer operational lifespan.
Glare and obstruction avoidance remain critical safety factors during placement. You must evaluate the operational field of view.
Ensure your chosen beam pattern clears the vehicle hood completely. Hood glare reflects light back into the cabin and can temporarily blind operators during nighttime shifts.
Verify your placement does not obstruct factory airflow. Blocked radiators or intercoolers cause dangerous engine overheating.
Confirm the new fixture does not obscure factory headlights, turn signals, or DOT-regulated marker lighting.
Respect local regulatory compliance for public roads. Note specific legal restrictions regarding mounting heights and beam angles. Forward-facing and rear-facing auxiliary lights often fall under strict Department of Transportation guidelines. You must cover or disable off-road specific lighting before entering public highways.
Standard hardware will inevitably fail in harsh industrial environments. You must specify appropriate fasteners to secure your equipment safely.
Always source 304 or 316 stainless steel hardware. These premium alloys actively prevent galvanic corrosion when exposed to harsh elements. Never use standard zinc-plated bolts in exterior applications. Zinc plating degrades quickly, leading to rust streaks and eventual structural failure.
Vibration mitigation requires deliberate hardware choices. Standardize your use of nylon-insert lock nuts (nylocs) across all exterior mounts. Install rubber vibration dampeners between the bracket and the vehicle body. These pads absorb kinetic shock energy before it reaches the fragile light housing. Always apply a medium-strength threadlocker to secure critical threaded connections firmly.
Proper sealing agents keep destructive moisture out of your electrical systems. Require automotive-grade silicone or specialized marine sealants for all drilled holes. This weatherproofing step proves especially crucial when utilizing flush-mount templates on exterior body panels.
Gather your core tools before beginning the installation process:
Step drill bits (for clean, incremental hole sizing)
A steel center punch (to prevent drill bit wandering)
Deburring tools or metal files (to smooth sharp metal edges)
Masking tape (for surrounding surface protection)
A calibrated torque wrench (for accurate bolt tightening)
Following a strict operational sequence ensures a secure and professional result. Do not rush the preparation phase.
Templating and Marking: Apply wide masking tape over the target area to protect the surrounding paint. Use the factory-provided paper templates for flush mounts. Mark your exact drill points using a sharp center punch. This dimple prevents the drill bit from skipping across the metal.
Drilling and Deburring: Start with a small pilot drill bit first. Step up incrementally to the final required diameter using a step bit. Always deburr the bare metal edges immediately after drilling. Apply a dedicated rust-inhibiting primer to the exposed metal to prevent accelerated oxidation.
Physical Installation: Carefully align the bracket or flush housing over the prepared holes. Install your rubber backing pads between the metal surfaces. Insert your stainless steel bolts and hand-tighten the nyloc nuts. Finally, use a torque wrench to tighten bolts to manufacturer specifications. Proper torque avoids crushing the housing or leaving dangerous play in the bracket.
Weatherproofing: Apply an even bead of automotive sealant around all wire egress points. Seal the bolt holes comprehensively from the inside to guarantee an IP67 or IP68 watertight barrier. Wipe away any excess silicone before it cures.
Treat every drilled hole as a potential entry point for water and rust. Taking extra time during the deburring and sealing steps saves you from expensive repairs later.
Physical security means nothing without safe and robust electrical integration. Modern high-output lighting pulls significant amperage, requiring specific wiring protocols.
Mandate the installation of an inline fuse for adequate circuit protection. Place this fuse as close to the battery or primary power source as physically possible. Size the fuse strictly based on the specific amperage draw of your new fixture. A properly sized fuse stops a short circuit from starting an engine bay fire.
High-draw auxiliary lights absolutely require a dedicated relay. You must understand the crucial role of relays. Running heavy-gauge wire directly through the cabin switch creates intense heat. This poor practice routinely causes switch burnout and massive voltage drop. A relay handles the heavy current load externally, allowing your cabin switch to safely handle a tiny trigger signal.
Follow strict wire routing standards throughout the vehicle:
Run all new wiring securely along existing factory harnesses.
Protect exposed wires entirely with split-loom tubing or durable braided sleeving.
Use tight-fitting rubber grommets whenever wires pass through metal bulkheads or firewalls.
Secure the wiring harness with heavy-duty zip ties every few inches to prevent sagging.
Never use household wire nuts or standard electrical tape for automotive connections. They will shake loose and cause dangerous arcing. Specify high-quality heat-shrink crimp connectors instead. Alternatively, use fully soldered joints thickly coated in dielectric grease and sealed with marine heat shrink. These methods guarantee a waterproof, vibration-proof electrical connection.
Successful installation seamlessly combines physical rigidity with strict electrical safety. You cannot have one without the other. Following structured mounting procedures ensures your lighting investments survive harsh operational conditions without vibrating loose or suffering moisture damage.
Before initiating your project, verify your vehicle's alternator capacity. Adding multiple high-wattage arrays can overwhelm a stock charging system. Always source lighting equipment featuring certified IP ratings and included heavy-duty wiring harnesses. These premium features simplify integration and drastically improve reliability.
Ready to upgrade your visibility? Browse our extensive catalog of professional-grade fixtures and rugged mounting accessories to find the perfect solution for your fleet today.
A: Yes. You can securely attach fixtures using clamp-on mounts designed for roll bars and tubular bumpers. Magnetic bases offer an excellent solution for a portable work light. You can also utilize existing factory mounting points, hood hinges, or aftermarket roof racks to avoid permanent modifications.
A: Wire gauge depends entirely on the total wattage of the fixture and the length of the wire run. Consult standard automotive AWG charts before buying supplies. We strongly advise over-sizing the wire slightly to reduce voltage drop and keep operating temperatures low.
A: Flickering usually indicates a common installation error. Check for poor grounding first. Ensure you mounted the ground wire directly to a clean, unpainted chassis point rather than rusted metal or plastic. An undersized relay or loose crimp connection can also cause erratic power delivery.
