Upgrading your home’s exterior security and visibility demands more than just buying a new fixture. You need a reliable, weather-tight installation to ensure long-term performance and peace of mind. However, working around household electrical systems while balancing on ladders presents significant safety risks. Navigating local compliance hurdles also complicates the process. Improper installations easily lead to severe electrical hazards, water damage, or code violations. Why take that risk? This guide provides a realistic, standard-compliant walkthrough for installing your exterior lighting. We carefully separate manageable DIY replacement tasks from complex scenarios requiring a licensed electrician. You will learn how to safely verify dead circuits. We also cover how to properly weatherproof your hardware. Finally, you will discover how to optimize sensor placement for maximum nighttime effectiveness.
Safety dictates the workflow: Never bypass the breaker panel; always verify zero power with a non-contact voltage tester before touching wires.
Weatherproofing is non-negotiable: Failing to use the proper EVA foam gasket or exterior-grade silicone sealant will lead to fixture failure and potential electrical hazards.
Preparation prevents delays: Staging the right tools—including hands-free illumination—ensures you aren't left on a ladder with missing components.
Placement drives performance: Mounting height and angle determine motion sensor accuracy and lumen distribution.
Before grabbing any tools, you must evaluate your current electrical setup. Not all exterior lighting projects qualify as simple weekend DIY tasks. Recognizing your limits prevents dangerous mistakes.
Upgrading an existing fixture usually falls within typical DIY capabilities. You need an exterior-rated junction box already embedded in the wall. The existing standard 120V wiring should appear modern. It must meet current local codes. If the box looks clean and sturdy, swapping the hardware remains straightforward. You simply match colors and secure the physical unit.
Starting from scratch introduces much higher physical risk. Running new Romex cable through exterior walls creates complex challenges. You must drill through studs and navigate insulation safely. Tapping into an existing circuit requires precise load calculations. Overloading a circuit breaker causes frequent tripping. Strict adherence to local building codes dictates every wire pull. We highly recommend hiring a licensed electrician for any net-new setup.
Here are clear signs you need a professional electrician:
You cannot locate an existing exterior junction box.
The target circuit trips the breaker constantly.
You want to add multiple fixtures on a single switch.
Local building codes require permits for new exterior circuits.
You must also select the right power source for your property. We break down the implementation realities below.
Table: Power Source Comparison
Power Type | Reliability Level | Installation Difficulty | Performance Constraints |
|---|---|---|---|
Hardwired | Highest | Complex (requires wiring) | Fixed location, requires active grid power. |
Plug-in | Medium | Easy (if outlet exists) | Cord visibility, outlet proximity limits reach. |
Solar | Variable | Easiest (no wiring) | Relies heavily on direct sunlight exposure. |
Hardwired models offer the absolute highest reliability. They deliver consistent lumen output regardless of passing storms. However, complex installation limits your placement flexibility. Solar models allow much easier mounting across fences. Unfortunately, they suffer variable performance constraints during long winter months. Plug-in models offer a decent middle ground. They install easily but require proximity to covered exterior outlets.

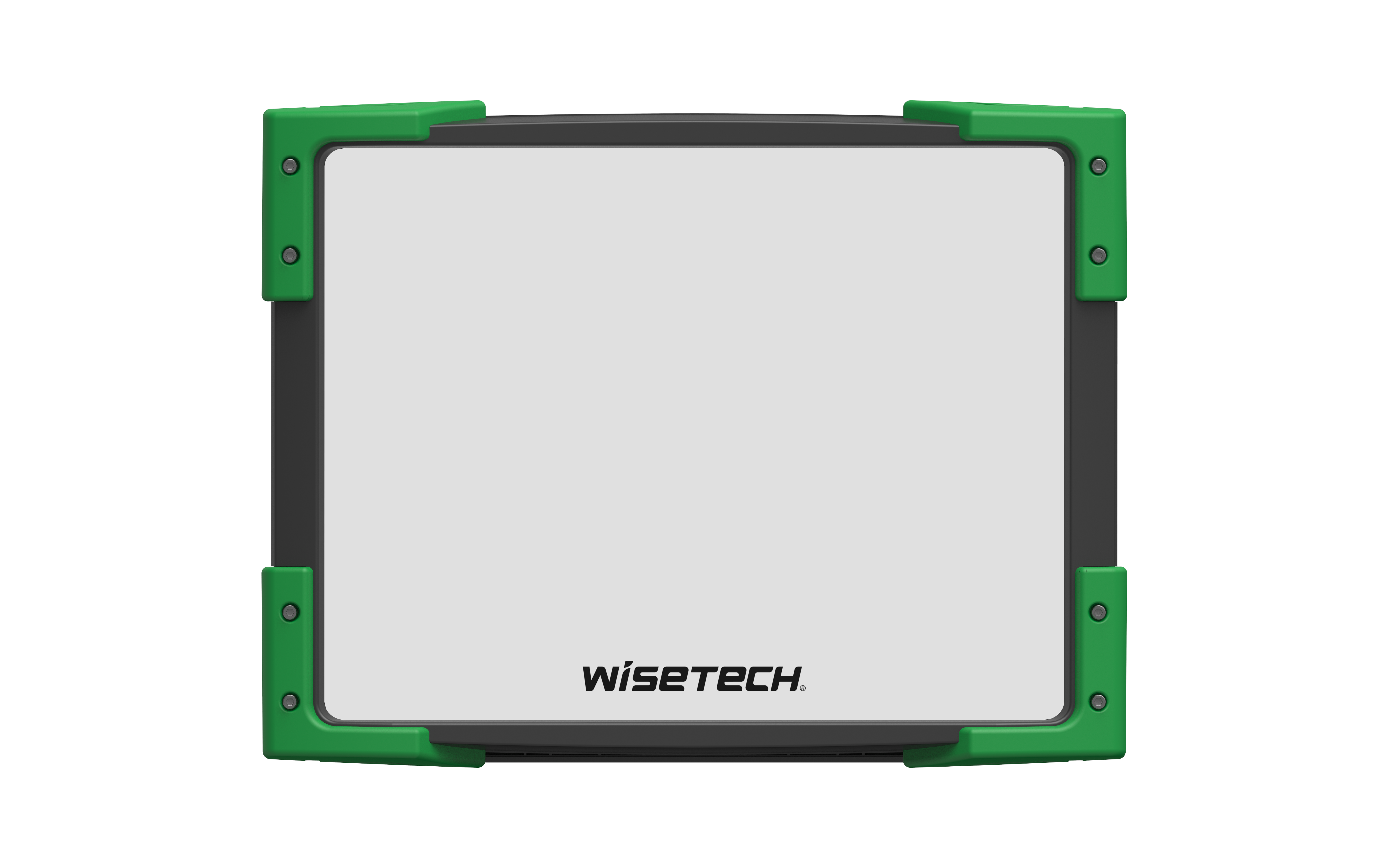

Proper staging prevents frustrating delays while you balance on a ladder. Gathering the exact equipment ensures a smooth workflow. You will not find yourself stuck holding a heavy fixture empty-handed.
You cannot compromise on personal safety equipment. Always keep a non-contact voltage tester in your pocket. Wear high-impact safety glasses. They protect your eyes against falling debris and drywall dust. Use an insulated fiberglass ladder instead of highly conductive aluminum models. Fiberglass prevents stray electrical currents from reaching the ground through your body.
Precision tools make hardware connections much more secure. Keep quality wire strippers handy. You need them for clean copper jacket exposures. You will need both Phillips and flathead screwdrivers for minor bracket adjustments. Buy fresh exterior-grade silicone caulk for the final weatherproofing phase. Ensure you have properly sized wire nuts for secure electrical joins.

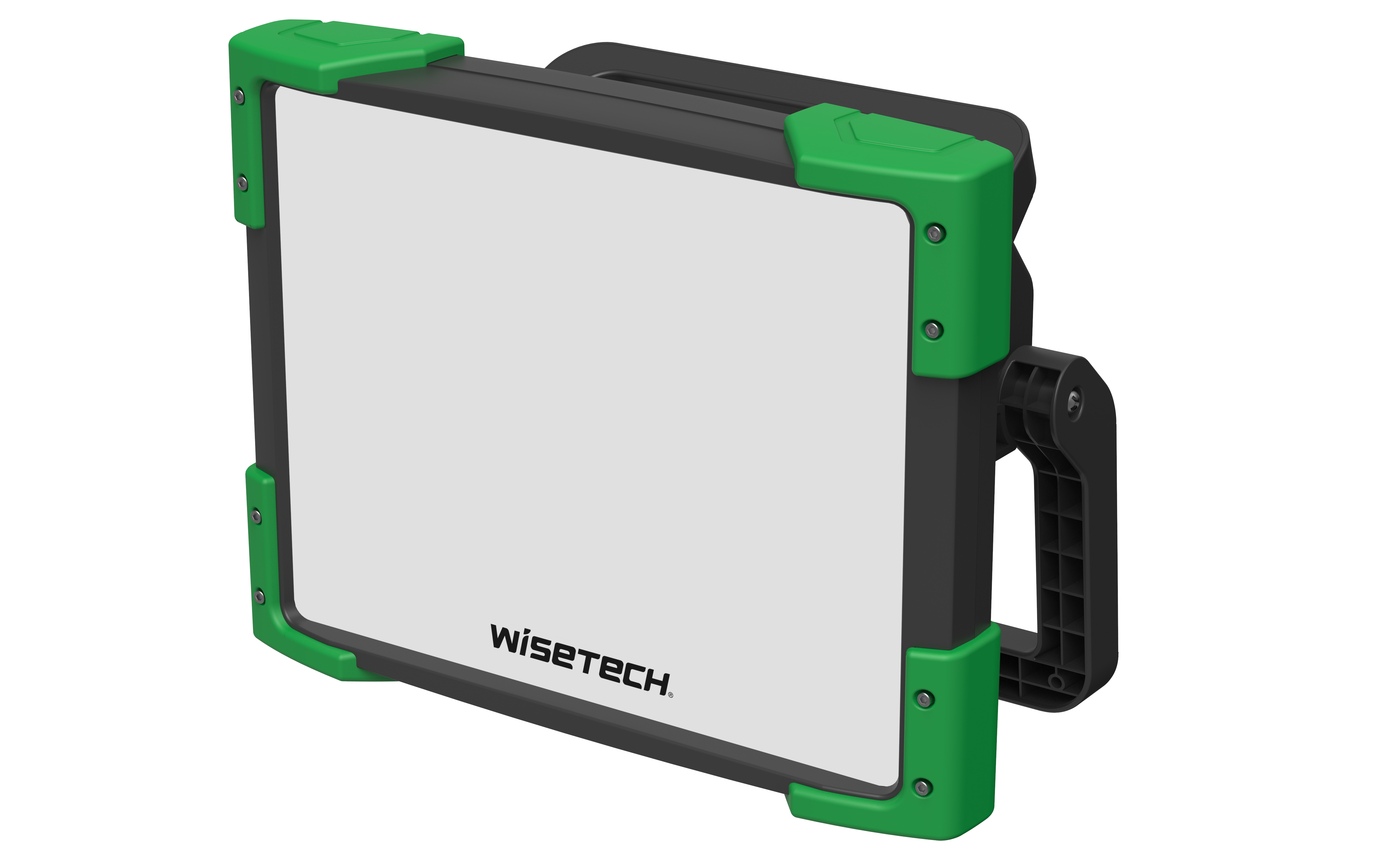

Working on electrical circuits means you must kill the power first. This action instantly plunges your work area into deep shadows. Dark eaves and unlit garages become dangerous environments quickly. Therefore, deploying a battery-operated Portable Work Light is absolutely critical. It safely illuminates your hands and the junction box. It also lights up the main breaker panel during the initial shutdown. Do not rely on a weak smartphone flashlight. Hands-free illumination keeps you perfectly stable and focused.
Never trust labeled breaker switches blindly. Old panel labels frequently contain errors. Previous homeowners often mislabel breakers during renovations. Always verify the specific wire at the junction box is completely dead. Use your voltage tester before stripping any insulation. Check the wires before touching bare copper.
Replacing an exterior fixture involves precise sequence execution. Follow these exact steps carefully. They ensure a durable, safe upgrade for your home.
Electrical safety begins far away from the actual installation site. You must visit your main service panel first.
Locate the main electrical panel in your garage or basement.
Identify and switch off the specific breaker controlling your target outdoor circuit.
Place a warning tape over the breaker so nobody turns it back on.
Return to the exterior location.
Use your non-contact voltage tester on the existing fixture's wiring.
Check every exposed wire closely. You must confirm absolute zero voltage exists. Do not proceed until the tester remains silent and unlit.
Carefully unscrew the existing light base from the wall. Support the hardware securely. It must not hang loosely by the old wires. Untwist the old wire nuts completely. Disconnect the ground, neutral, and hot wires one by one. Set the old unit aside.
Now, thoroughly inspect the existing junction box embedded in the wall. It must sit flush. It also needs to be securely fastened to a wooden stud. The box must carry a distinct rating for exterior weight loads. Look closely for signs of past water ingress. Check the corners for rust or mold. Examine the wiring insulation for brittle cracks. If you find crumbling wire jackets, stop your work immediately. Call a professional electrician to replace the damaged lines.
Unpack your new hardware kit on a flat surface. Pick up the new metal mounting strap. Attach this bracket directly to the junction box. Tighten the provided screws until the bracket sits perfectly flat against the box.
Next, prepare the crucial weatherproofing layer. Pick up the manufacturer-provided weatherproof gasket. This piece typically uses thick EVA foam. Thread the house wiring carefully through the center hole of the gasket. Push the gasket flush against the wall. It ensures a tight, protective seal against your exterior mounting surface.
Electrical connections require strict adherence to standard color codes. Always check the manufacturer schematics first. Variations do exist among different brands.
Follow this standard connection sequence:
Connect the ground wire (green or bare copper) directly to the grounding screw. Alternatively, connect it to the house ground wire.
Connect the neutral wires together. These are typically white to white.
Connect the hot wires together. These are typically black to black.
Twist the exposed copper ends firmly together clockwise. Secure all connections using properly sized wire nuts. Twist the nuts until they grip tightly. Give each nut a gentle tug to verify mechanical tightness. Finally, gently fold the newly joined wires back inside the junction box. Arrange them carefully. You want to avoid pinching them when attaching the heavy base.
Bring your new Flood Light base up to the prepared wall. Align the base holes exactly with the metal mounting bracket studs. Secure the unit firmly. Use the provided central mounting screw or cap nuts. Ensure the EVA foam gasket compresses slightly against the wall surface. This compression creates the primary waterproof barrier.
Next, grab your caulking gun. Apply a continuous, thick bead of exterior silicone caulk. Route this caulk around the top edge of the fixture base. Continue down both side edges. Stop applying caulk when you reach the bottom edge. You absolutely must leave the bottom uncaulked. This critical open gap acts as a designated weep hole. It allows any trapped internal condensation to safely drain out over time.
Even perfect wiring cannot save a poorly positioned fixture. Optimal placement directly dictates nighttime performance. It also maximizes your overall security coverage.
You should mount the fixture between 8 and 10 feet off the ground. This specific height range offers the best balance of coverage. Lower installations risk easy tampering by intruders or vandals. Conversely, higher installations severely degrade motion sensor sensitivity. Excessive height also dilutes light pooling. It leaves ground areas too dim for security cameras to record clearly.
Directional aiming requires careful thought. Point the motion sensors slightly downward toward the target zone. Ensure they never point directly at nearby busy roads. Passing cars will constantly trigger false alarms all night long. You must also avoid aiming sensors at localized heat sources. HVAC exhaust vents or dryer vents will trick the infrared detection easily. The warm air plumes mimic human body heat.
Once the silicone caulk dries, restore power at the main breaker. Wait for dusk, or use the fixture's designated "Test" mode immediately. This mode allows you to simulate nighttime conditions during daylight hours. Dial in the lux settings first. This adjusts the daylight sensitivity threshold. Next, adjust the time-delay settings. This controls how long illumination lasts after motion stops in the zone. Make these vital tweaks before the sun goes down to save frustration.
Many homeowners rush exterior upgrades. They skip vital steps to finish faster. Avoiding these frequent errors prevents premature hardware failure.
Some people screw hardware directly onto wood siding without using a box. Mounting a fixture this way violates building codes completely. It exposes bare wire connections to combustible wall materials. This creates a severe, immediate fire hazard. A tiny electrical spark can ignite dry wood instantly. Always use a proper exterior-rated electrical box.
Power drills make driving screws entirely too easy. Over-tightening the central mounting screw often cracks the plastic base. It can also snap cast-metal housings. A cracked base instantly compromises the weather-tight seal. Water will seep into the sensitive electronics during the very next rainstorm. Always use a standard hand screwdriver. It ensures a snug, damage-free tension level.
EVA foam gaskets work extremely well on perfectly flat surfaces. However, failing to add silicone caulking on textured siding guarantees failure. Surfaces like brick, stucco, or rough-sawn cedar have deep crevices. Flat gaskets cannot fill these uneven gaps. Wind-driven rain will blow right past the foam. Caulk creates the necessary flexible barrier against severe water intrusion.
Successfully upgrading your exterior illumination comes down to strict procedural discipline. Always verify power is completely off before touching anything. Secure your electrical wiring using strong mechanical joins. Finally, seal the exterior hardware relentlessly against the elements. This prevents catastrophic water damage down the line.
Remember to evaluate your existing infrastructure honestly before beginning. If you discover frayed wire jackets, you must stop immediately. If you see silver-colored aluminum wires instead of standard copper, pause your work. If your junction box lacks a dedicated ground wire, do not proceed. These specific scenarios require professional evaluation. A licensed electrical contractor must repair them for your safety.
Once properly installed, your work is not quite finished yet. Take time over the first few nights to test your newly mounted hardware. Walk through your yard to check the motion sensor's detection range. Tweak the physical angle adjustments carefully. This ensures optimal illumination coverage across driveways and dark blind spots. A well-aimed security system offers vastly superior peace of mind.
A: No, if you are replacing an existing fixture and understand basic electrical safety. Swapping hardware on a modern, up-to-code circuit is a straightforward DIY task. Yes, you need an electrician if you are running new wire. You also need a pro when dealing with old aluminum wiring or installing a net-new junction box.
A: Most standard residential 120V exterior fixtures run safely on 14 AWG Romex wire. This assumes a standard 15-amp circuit. If your exterior lighting runs on a dedicated 20-amp circuit, you must use thicker 12 AWG wire. Always verify your circuit breaker rating before selecting replacement wiring.
A: Yes, provided the specific model is explicitly rated for eave-mounting. Some fixtures feature rigid articulating arms. They only function correctly when wall-mounted. Installing a wall-only unit under an eave forces sensors and bulbs into awkward angles. Always check the manufacturer's spec sheet prior to purchase.
