Motion sensors provide excellent security by illuminating only when someone walks past them. However, this intermittent behavior quickly becomes annoying when you require continuous light. Outdoor tasks, evening events, and reliable overnight visibility all demand steady illumination. Many homeowners and professionals face immense frustration when trying to bypass these automatic settings. It often feels impossible to force these fixtures into a steady state. Manufacturers rarely document the hidden factory overrides. Their internal logic strictly dictates shutting off to save energy.
This guide reveals evidence-based methods for manually overriding standard sensors so they stay on. You will learn how to diagnose unintended constant-on states and apply hardware workarounds safely. We also establish clear criteria for upgrading to purpose-built, switch-controlled fixtures. By understanding the core mechanics of your lighting system, you can regain complete control over your outdoor environment without compromising safety.
The Switch-Cycle Method: Most standard fixtures allow a temporary manual override via a specific sequence of wall-switch flips (usually OFF-ON within 2 seconds).
Physical Bypasses: Masking the PIR (Passive Infrared) sensor or hardwiring the fixture can force continuous operation, but introduces safety and compliance risks.
Diagnostics: A light that refuses to turn off may not be in "override" mode; it often indicates a fused relay, power surge damage, or water intrusion.
The Permanent Fix: For reliable, on-demand continuous lighting, replacing aging hardware with a dedicated Motion Sensor Work Light featuring built-in dual-mode toggles is the most secure and scalable solution.
A fundamental conflict exists between PIR sensor energy-saving logic and user needs. Passive Infrared (PIR) sensors detect heat signatures moving across their field of view. They trigger the light when they sense a sudden temperature shift. This logic excels at deterring trespassers and reducing electricity bills. Yet, it fails entirely when you need sustained task lighting for a backyard barbecue or driveway repair. The sensor logic actively fights your need for continuous visibility.
To understand how to beat the sensor, you must understand its internal relay. The fixture uses a small electronic relay to open and close the circuit. Capacitors on the circuit board store tiny amounts of electrical charge. They govern the timing mechanism. When you abruptly cut power at the wall switch, these capacitors experience a sudden voltage drop. Manufacturers program many models to recognize this specific voltage drop as an override command. This abrupt change forces the relay to stay in the closed position, keeping the light on.
However, we must apply a safety and compliance reality check. Standard security lights are not always built for continuous operation. They utilize smaller heat sinks designed for short bursts of illumination. Forcing a standard Flood Light beyond its thermal design limits traps heat around the LED diodes. This trapped heat degrades the components over time. It can significantly reduce the overall lifespan of your LED array. You must weigh this thermal reality before relying on overrides permanently.
The easiest method requires no tools and relies entirely on the factory-programmed switch sequence. Most major lighting manufacturers build a manual override function directly into the sensor firmware. You execute this command using your standard indoor wall switch.
Follow these specific steps to trigger the manual override mode:
Turn the switch ON. Allow the fixture to power up and complete its initial warm-up cycle.
Wait for auto-off. Step out of the sensor's detection zone. Wait until the light automatically turns off.
Flip the switch OFF. Quickly turn the wall switch to the off position.
Pause briefly. Wait exactly 1 to 2 seconds. Do not exceed 3 seconds, or the internal capacitor will fully discharge.
Flip the switch ON. Turn the power back on immediately.
If you execute this timing correctly, the light will flash briefly or turn on and stay on. It should remain illuminated indefinitely. It will only turn off when you manually power it down at the switch. If your fixture includes a built-in photocell, the dawn-to-dusk feature might eventually shut it off when the sun rises. You can reset the unit to standard motion-detection mode by turning the switch off for at least 30 seconds before turning it back on.
This method carries inherent limitations. Power interruptions completely reset the system. If a brief grid fluctuation occurs, the light reverts to its default motion-sensing state. Furthermore, not all legacy or budget models support this feature. Older analog sensors lack the programmable microchips required to recognize the switch-toggle command. If you try the sequence multiple times without success, your fixture likely lacks this capability entirely.
When software overrides fail, many users turn to physical modifications. These range from simple, non-invasive tricks to complex electrical rewiring. You must approach these methods cautiously. They often introduce reliability issues or safety concerns.
You can force continuous operation by blinding the PIR sensor. Homeowners frequently use electrical tape to cover the sensor lens entirely. This trick relies on deceiving both the photocell and the motion detector. By blocking all ambient light and thermal input, you essentially blind the unit. If the unit believes it is permanently nighttime and cannot detect motion boundaries, some models default to a constant-on state.
However, this hack carries significant risks. It proves highly unreliable in extreme weather. Summer heat can melt the tape adhesive, causing it to fall off. Winter moisture can seep under the tape, shorting out the external lens. More importantly, it leaves the internal relay vulnerable. The relay still attempts to process conflicting signals, which can cause premature hardware failure.
A more permanent DIY solution involves bypassing the sensor module entirely inside the junction box. This forces the light to rely solely on the wall switch.
The Process: You must open the housing and identify the sensor load wire. You disconnect this wire and connect the main LED power wire directly to your incoming house switch wire.
Code Considerations: This method violates the National Electrical Code (NEC) if performed incorrectly. You must ensure proper grounding to prevent shock hazards.
Safety Risks: Modifying internal wiring immediately voids UL and ETL safety certifications. It also nullifies any manufacturer warranties. If an electrical fire occurs due to a modified fixture, your insurance provider may deny the claim.
Method Type | Implementation Difficulty | Reliability Level | Safety & Compliance Risks |
|---|---|---|---|
Tape Trick | Low (Takes 2 minutes) | Poor (Fails in weather) | Low risk, but leaves relay active |
Hardwired Bypass | High (Requires electrical skills) | High (Permanent connection) | High risk, voids UL/ETL certification |
Sometimes a light stays on when you never intended it to. You need a reliable evaluation lens to determine whether the light is successfully overridden or structurally broken. Confusing a broken sensor for an active override leads to wasted electricity and eventual fixture failure.
A light that refuses to turn off usually suffers from one of three primary hardware malfunctions. You should check for these common failure points before attempting any further overrides.
Power Surges: Nearby lightning strikes or grid fluctuations send excess voltage through the circuitry. This often fuses the microscopic contacts inside the sensor relay. Once those contacts melt together, they create a permanent closed circuit. The light can no longer turn off.
Environmental Degradation: Cheap plastic housings crack over time under UV exposure. Water ingress inevitably follows. Moisture inside the sensor housing creates short circuits across the printed circuit board. This completely scrambles the logic controller.
Sensitivity Errors: The sensor might be functioning perfectly, but its environment is flawed. High winds moving large branches trigger PIR sensors continuously. Similarly, hot exhaust air blowing from a nearby HVAC unit creates thermal motion. The sensor interprets this as a constant human presence.
Before condemning the fixture to the trash bin, you should perform a "Hard Reset" protocol. Turn off the power completely at your main breaker panel. Leave it off for 5 to 10 full minutes. This extended power cut drains all residual power from the internal capacitors. It clears the internal memory entirely. Restore power at the breaker. If the light still refuses to turn off after its initial warm-up cycle, the internal relay is permanently damaged. You must replace the unit.
When DIY overrides fail repeatedly or require too much daily maintenance, you need a solution shift. The financially sound decision involves upgrading to hardware designed explicitly for dual-functionality. Stop fighting aging, single-purpose technology. Invest in fixtures built to handle both temporary security and sustained task lighting.
When shopping for a replacement, ignore standard security models. You must evaluate new fixtures based on specific technical dimensions that guarantee reliability.

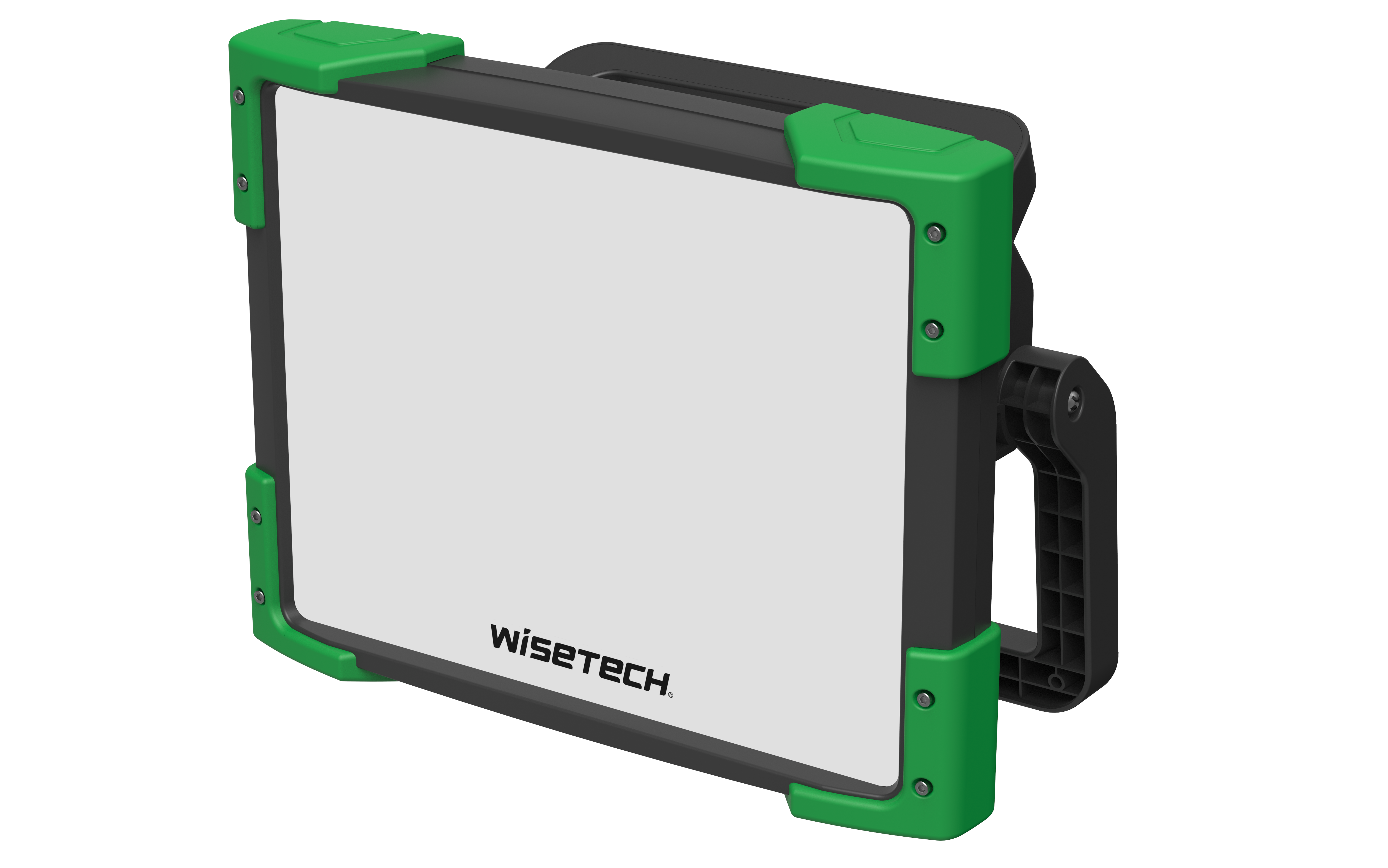

Built-in Physical Controls: Look for a dedicated Motion Sensor Work Light. These units feature distinct manual switches or included remote controls. This eliminates the need for frustrating toggle-hacking at the wall switch. You can switch modes instantly.
Smart Integrations: Consider app-controlled fixtures using Wi-Fi or Bluetooth protocols. These modern platforms allow precise scheduling. You can program the light to stay on during a party and revert to motion-sensing at midnight via a one-tap smartphone command.
Thermal Management & Durability: Heat destroys LEDs. Ensure your new fixture features a minimum IP65 weather-resistance rating. More importantly, verify it has adequate aluminum heat sinks. The fixture must be rated for a 100% duty cycle. This means it can safely operate constantly without thermal degradation.
You must weigh the true cost of your lighting strategy. Hiring a licensed electrician to safely bypass the wiring on a cheap, aging security light often costs more than the fixture itself. Instead, allocate those funds toward investing in a commercial-grade, override-ready fixture. Purpose-built hardware provides immediate peace of mind, code compliance, and guaranteed longevity. It effectively solves the problem permanently.
Standard switch-toggling offers a clever, temporary fix for immediate lighting needs. However, manipulating switch sequences or applying tape over sensors does not provide a permanent structural solution. Forcing incompatible hardware to operate beyond its intended design compromises both electrical safety and component longevity. If you find yourself constantly battling your outdoor lighting, it is time to reassess your setup.
We highly recommend evaluating your current fixtures against the criteria outlined above. Stop relying on undocumented hacks. Instead, transition to dedicated, dual-mode flood lights designed for continuous operation. Upgrading your hardware ensures reliable performance, eliminates daily frustration, and keeps your property safely illuminated exactly when you need it.
A: Smart logic boards and sensor relays rely on internal memory powered by tiny capacitors. When primary voltage drops during a power outage, these capacitors drain completely. The system automatically resets to its default, factory-programmed energy-saving mode to prevent accidental power waste once the grid restores.
A: No, you generally cannot. Smart switches only control the delivery of electrical power to the fixture. They cannot bypass the fixture's internal sensor relay. Unless the light is physically hardwired to ignore its own motion detector, the internal sensor still dictates whether the bulb illuminates.
A: It depends heavily on the fixture's thermal dissipation capabilities. Purpose-built work lights feature robust heat sinks rated for continuous, 100% duty cycle use. Conversely, budget security lights possess minimal cooling components. Leaving budget models on permanently traps heat, which degrades LED diodes and drastically shortens their lifespan.
