Upgrading your exterior security starts by installing proper outdoor illumination. Better visibility deters intruders effectively. It also keeps pathways safe for your family at night. However, tackling electrical work carries inherent risks. You must approach this project carefully. Careless mistakes easily cause severe shocks or hidden fire hazards. This guide focuses on replacing an existing fixture. It also covers mounting a new unit where an approved junction box already exists. You will learn how to safely disconnect power. We will show you how to connect wires correctly. You will also learn how to weatherproof the final assembly. We assume you possess a baseline understanding of home circuitry. Remember, all electrical work must strictly comply with local building codes. You should consult the National Electrical Code (NEC) guidelines. Taking shortcuts endangers your property. Doing it right brings peace of mind.
Safety is absolute: Never begin without verifying power is cut at the breaker using a non-contact voltage tester.
Assessment matters: Replacing an existing fixture is a straightforward DIY task; running new conduit or wiring requires a licensed electrician.
Weatherproofing is non-negotiable: Proper use of gaskets and silicone sealant prevents water ingress and catastrophic shorts.
Preparation prevents errors: Having the right tools—including a reliable temporary light source—ensures safe, compliant wire connections.
Deciding between doing the work yourself and hiring an electrician is a critical first step. You likely want to save money on installation fees. However, you cannot compromise personal safety to reduce costs. Assess your mechanical skill level honestly before touching any wall switches. Building codes exist specifically to protect you. Local codes vary significantly by municipality. Some cities require permits even for simple fixture swaps. Check your local city hall website before starting. Fines for unpermitted electrical work add up quickly.
You can usually handle the installation yourself under a few specific conditions.
You are replacing an existing, functioning fixture.
The existing junction box is properly anchored to the wall framing.
The box remains completely weatherproof and up to modern electrical code.
You feel comfortable climbing and standing on a tall ladder.
You know how to properly twist wire nuts securely.
You possess a firm grasp of basic electrical grounding protocols.
Some situations demand a licensed professional immediately. Do not hesitate to call an expert if you encounter these red flags.
Running completely new electrical lines from your main breaker panel.
Upgrading a standard switch to a complex smart switch.
Installing a motion sensor relay requiring a neutral wire you do not have.
Discovering old wiring showing clear signs of scorch marks or severe fraying.
Noticing the electrical box lacks a proper ground connection entirely.
Ignoring these warning signs leads to severe electrical hazards. Professionals possess the training to navigate these complex implementation risks safely.
A successful installation requires careful preparation. You must evaluate your workspace thoroughly. Keep all essential components within easy arm's reach before cutting the power. Scrambling for dropped tools while standing on a tall ladder invites serious accidents.
Gather these essential materials before beginning the project.
A UL-listed outdoor fixture. Ensure it includes a strong mounting bracket. Verify it contains a weatherproof gasket and properly sized wire nuts.
Exterior-grade silicone caulk. This specific caulk handles harsh temperature swings. It ensures a durable, watertight seal against the exterior wall.
Having reliable hand tools prevents damaged wires. They also guarantee tight, secure electrical connections.
Non-contact voltage tester. This remains absolutely crucial for your personal safety verification.
High-quality wire strippers and sharp cutters. Wire strippers must match the gauge of your home's wiring. Using the wrong size cuts into the copper core. A nicked copper wire breaks easily under tension.
A comprehensive screwdriver set containing both Phillips and flathead options.
A sturdy fiberglass ladder. Never use aluminum ladders near live electricity. Fiberglass remains entirely non-conductive.

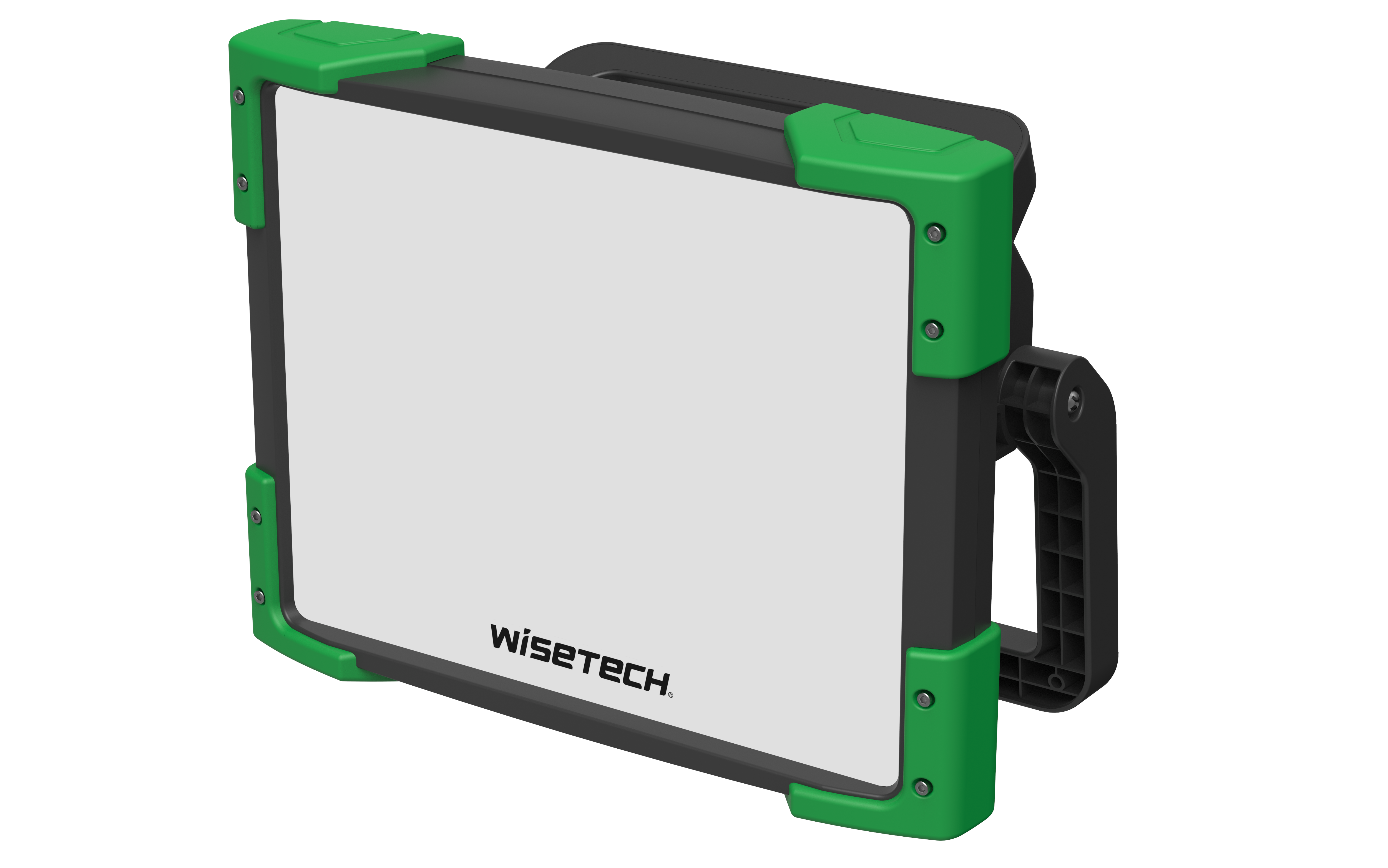

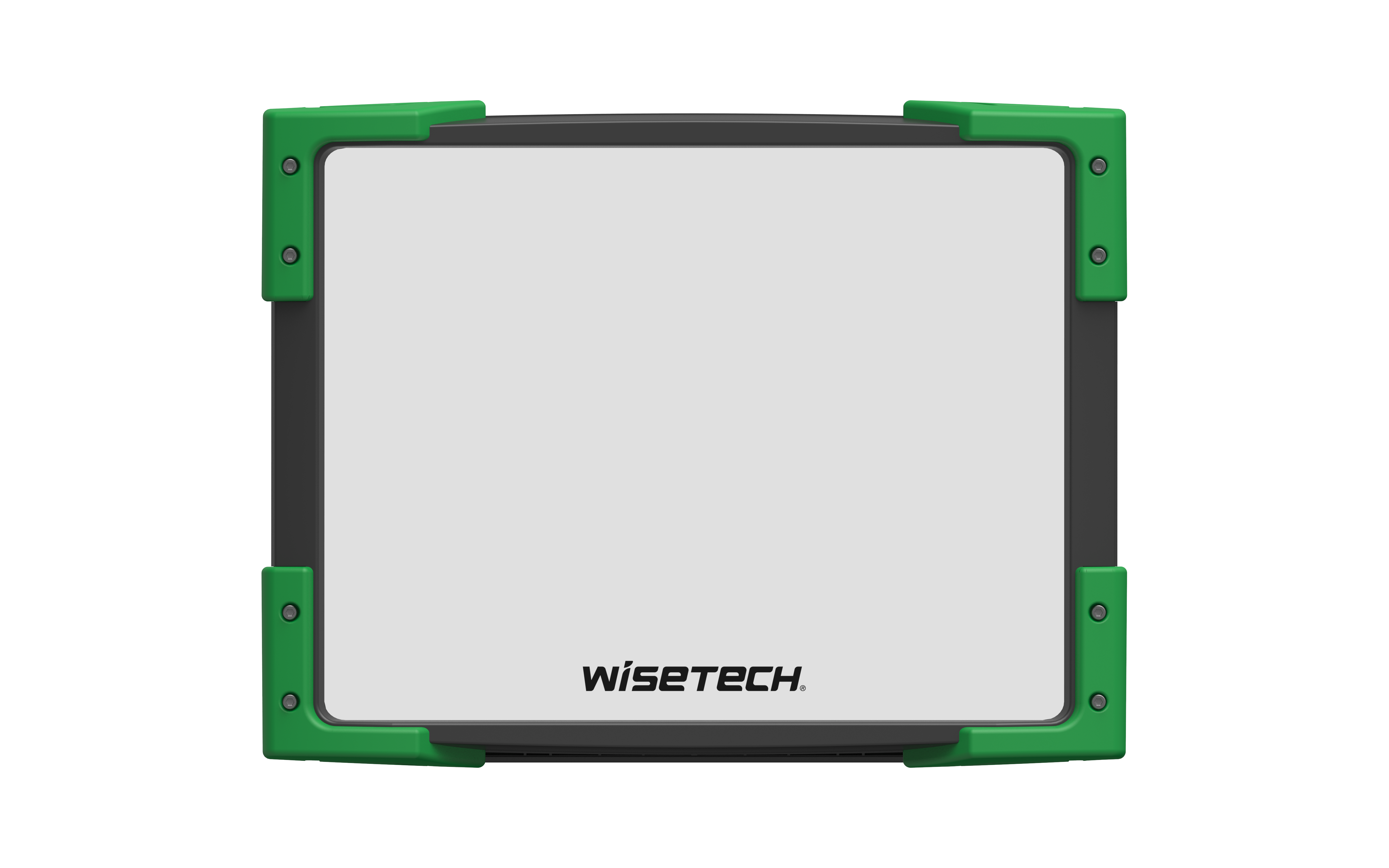

Turning off the circuit breaker obviously compromises your ambient lighting. Working in deep shadows increases the risk of wiring mistakes. We highly recommend using a battery-powered Outdoor LED Work Light. Position it securely at the ladder base. Alternatively, mount it nearby to illuminate the dark junction box. This maintains clear visibility of specific wire colors. Proper lighting keeps you completely safe during the entire process.
Safety always starts at the main breaker box. Never skip this fundamental verification step. Assuming the power is off often leads to tragic results.
Locate your home's main electrical panel. Find the specific breaker controlling the exterior light circuit. Switch it firmly to the "off" position. Place a piece of highly visible tape over the breaker handle. This tape prevents others from accidentally turning the power back on while you work outside.
Do not trust the handwritten breaker label blindly. Remove the old fixture housing slightly from the wall. Bring your non-contact voltage tester near the internal wires. The tester will beep loudly or flash red if alternating current remains present. You must confirm absolute zero voltage before touching any exposed copper inside the box.
Once you confirm the power is truly off, proceed to remove the old unit.
Carefully untwist and disconnect the old wire nuts from the existing splices.
Separate the wire bundles gently. Lower the old fixture safely to the ground.
Inspect the junction box inside the wall thoroughly. Look closely for moisture damage, heavy rust, or loose mounting screws.
Ensure three standard wires are present. You need the black hot wire. You need the white neutral wire. You also need the bare copper or green ground wire.
The internal wires must look clean and physically intact. Trim the ends and re-strip the insulation if the copper appears brittle or heavily oxidized.
Modern exterior fixtures follow standardized wiring protocols across the industry. Understanding these core connections ensures a safe and functional upgrade. You must secure every connection tightly.
Start by securing the new mounting strap or bracket. Attach it directly to the existing junction box using the provided machine screws. Ensure the bracket sits completely flush against your exterior wall. A crooked bracket creates gaps. Gaps lead to a poorly sealed fixture later.
Connecting the wires correctly is the core task of this project. Always hold the stripped wire ends parallel to each other. Twist the appropriate wire nut clockwise until it feels very tight. Give each wire a gentle tug. This confirms a solid mechanical grip. When twisting wire nuts, ensure no bare copper remains exposed below the plastic cap. Wrap the base of each completed wire nut connection using professional-grade electrical tape. This extra layer provides additional protection against vibrations caused by strong winds.
Ground to Ground: Connect the house ground wire to the fixture's green or bare copper wire. Secure them together securely. Proper grounding prevents deadly electrical shocks.
Neutral to Neutral: Connect your house white wire directly to the fixture's white wire. This completes the vital electrical circuit pathway.
Hot to Hot: Connect the house black wire to the fixture's black wire. This specific wire carries the active voltage to the bulbs.
Note on Switches/Sensors: Wiring a unit containing an independent motion sensor requires extra care. Verify the total load limits first. Ensure you route the sensor's red load wire correctly. Always follow the manufacturer's specific printed schematic for advanced sensors.
If your house wiring features older colors, pause the installation immediately. Stop working if you see red or blue wires without clear labels. Use a multimeter to identify the hot line accurately. Guessing wire functions creates immense fire risks.
Carefully fold all wired connections back inside the junction box cavity. Push them in gently. Do not pinch the wires against sharp metal edges. Align the fixture base over your newly installed mounting bracket. Slide the weatherproof EVA foam gasket directly between the base and the exterior wall. Secure the entire assembly tightly using the decorative mounting screws.
Protecting your electrical work from the elements prevents catastrophic shorts. Rain and humidity ruin improperly sealed outdoor electronics very quickly. Weatherproofing requires careful attention to detail.
You must apply a continuous bead of exterior-grade silicone caulk. Route the caulk precisely around the top and sides of the fixture canopy. Seal exactly where the metal edge meets the siding or brick wall. Wait for a dry day to apply the silicone caulk. Wet walls prevent the silicone from adhering properly. Smooth the caulk bead using a gloved finger dipped slightly in water. This creates a clean, professional finish.
You must deliberately leave the bottom edge un-caulked. This small gap allows any trapped internal condensation to weep out naturally over time. Sealing the bottom traps moisture inside, destroying the internal components quickly.
Clear your ladder and tools away from the wall immediately. Return to your main breaker panel. Restore power to the circuit by flipping the breaker on. Go back inside and turn on the wall switch. When testing a motion sensor during daylight hours, cover the photocell sensor completely with black electrical tape. This simulates nighttime conditions. It allows you to verify the motion detection range accurately without waiting for the sun to set.
Sometimes things do not work perfectly on the very first try. Do not panic. Use these common fixes before assuming the newly purchased unit is defective.
Common Installation Issues and Solutions
Problem | Likely Cause | Actionable Solution |
|---|---|---|
Light won't turn on | Loose wire nut or switch is off | Re-check all wire connections closely. Verify the physical wall switch is set to the "On" position. |
Sensor acts erratically | Environmental interference | Adjust lux and time-delay dials. Ensure no reflective surfaces (like car windows or HVAC units) trigger the passive infrared (PIR) sensor. |
Light stays on continuously | Manual override engaged | Flip the wall switch off and on rapidly. Do this twice within two seconds. This resets the sensor to "Auto" mode. |
Choosing the appropriate hardware impacts both your security and your home's curb appeal. You must evaluate several specific criteria before making a final purchase. Not all fixtures suit every environment.
If you are currently evaluating which Flood Light to buy prior to installation, assess the following elements closely.
Lumens vs. Wattage: Focus strictly on the lumen output rather than the wattage. Wattage only measures energy consumption. Lumens measure actual brightness. A 2000 to 3000 lumen LED works perfectly for large driveways. Alternatively, 1000 to 1500 lumens are typically sufficient for smaller entryways.
Color Temperature (Kelvin): The Kelvin scale dictates the light's color appearance. Choose 3000K for a warmer, welcoming residential aesthetic. Select 5000K if you need stark, high-contrast visibility for critical security zones.
Feature Integration: You must decide between simple dusk-to-dawn photocells, highly adjustable motion sensors, or smart-home integrated cameras. Base this crucial decision on your home network stability. Also, consider your specific daily security needs before buying complex smart units.
LED longevity depends heavily on thermal management. Look for fixtures featuring cast aluminum housings. Aluminum dissipates heat far better than cheap plastic alternatives. Better heat dissipation means your LEDs will last significantly longer under continuous operation.
Installing new exterior lighting is a highly rewarding project. It remains a manageable task for most homeowners. You can achieve excellent results if your junction box is pre-existing. You must follow strict safety protocols at all times. Thorough preparation guarantees a smoother process overall. Correct weatherproofing protects your investment against harsh elements. Re-read the wiring schematics carefully before making your final connections.
However, never guess when dealing with home electricity. If you doubt the wiring integrity, stop working immediately. If local code requirements confuse you, ask for help. Defaulting to a licensed professional remains the only correct choice in uncertain situations. Ready to upgrade your home security? Browse a curated selection of UL-listed fixtures today. Alternatively, schedule a quick consultation with a certified installation partner to get started safely.
A: No. Building codes mandate that all electrical splices must be contained within an approved, fire-rated junction box to prevent fire hazards.
A: Optimal height is typically between 8 to 10 feet off the ground. This prevents tampering while allowing the PIR sensor to cast an effective detection net.
A: Yes. Nearly all smart fixtures and advanced motion sensors require a continuous power draw, necessitating a neutral (white) wire connection.
