Selecting the perfect illumination for your property requires walking a very fine line. You need adequate security to deter intruders effectively. However, you also must avoid creating aggressive, blinding light pollution. Unfortunately, manufacturer spec sheets often push unnecessarily high lumen counts just to drive up sales. This persistent over-illumination frequently leads to severe security camera washout. It also sparks endless complaints from frustrated neighbors. You end up paying for excessive brightness you simply do not need. This guide provides an evidence-based framework to fix this problem. We will break down exactly how to size your lighting correctly. You will learn how to calculate your precise lumen requirements based on driveway dimensions, mounting heights, and specific use cases. Proper sizing ensures reliable safety while respecting the surrounding night environment.
**Standard Driveways (1-2 cars):** 1,500 to 3,000 lumens is the optimal baseline for safety and general visibility.
**Large/Rural Driveways:** 3,000 to 5,000+ lumens are required, often best achieved through multiple fixtures rather than a single blinding source.
**Utility & Maintenance:** If using the space for vehicle repairs, supplementing with an outdoor LED work light is more effective than permanently over-illuminating the driveway.
**The Over-Illumination Risk:** Exceeding 5,000 lumens on a standard suburban driveway can trigger light trespass issues and ruin night-vision security camera sensors.
Homeowners often confuse lumens and foot-candles when shopping for exterior fixtures. Understanding the difference forms the foundation of proper lighting design. Lumens measure the total light output directly at the source. It simply tells you how much raw light the LED diode produces. Foot-candles measure the actual, useful light hitting your driveway surface. Ten thousand lumens mean nothing if the light scatters into the night sky. You must convert raw output into functional surface illumination.
Industry standards provide clear recommendations for residential outdoor safety. Experts suggest targeting one to two foot-candles for secure, navigable driveways. Achieving this target requires a simple square footage calculation. First, measure the length and width of your parking area. Multiply these numbers together to find your total square footage. Next, multiply your total square footage by your desired foot-candles. This basic calculation yields your exact target lumen requirement.
For example, a typical 20-by-20 foot parking pad equals 400 square feet. Multiplying 400 square feet by two foot-candles equals 800 useful lumens. However, exterior fixtures lose some light to scatter and lens diffusion. Therefore, you should purchase a fixture rated slightly higher to guarantee adequate coverage.
Different property sizes require distinct baseline approaches. Following standardized size categories prevents costly purchasing mistakes. We have broken these down into three primary classifications.
Single-Car / Short Driveways: These areas fall under 400 square feet. Target 1,000 to 1,500 lumens. This output fully illuminates the space without spilling into adjacent yards.
Double-Car / Standard Suburban: These spaces range from 400 to 800 square feet. Target 1,500 to 3,000 lumens. A Flood Light equipped with dual adjustable heads works perfectly here.
Long / Multi-Vehicle: These expansive areas exceed 800 square feet. Target 3,000 to 5,000 lumens overall. You must use multi-head fixtures or install multiple distinct light units to cover this distance evenly.
Driveway Type | Square Footage | Recommended Lumens | Ideal Fixture Style |
|---|---|---|---|
Single-Car / Short | Under 400 sq ft | 1,000 – 1,500 | Single-head integrated LED |
Double-Car / Suburban | 400 – 800 sq ft | 1,500 – 3,000 | Dual-head adjustable fixture |
Long / Multi-Vehicle | 800+ sq ft | 3,000 – 5,000+ | Triple-head or multiple fixtures |
Every lighting installation serves a specific primary purpose. Identifying your main objective dictates exactly how much power you actually need. Installing a single, ultra-bright fixture rarely solves multiple problems simultaneously. You must match the output level directly to the intended activity.
Active deterrence represents the most common security objective. Intruders prefer working in complete darkness. A sudden burst of bright light startles trespassers immediately. For active security, target 2,000 to 3,000 lumens. This setup requires instant-on capability paired tightly with Passive Infrared (PIR) motion sensors. The PIR sensor detects body heat signatures. It triggers the high-lumen burst only when necessary. This targeted approach surprises intruders while keeping the area dark during normal hours.
General navigation requires a much gentler approach. Coming home late at night demands ambient safety. You just need to see the pavement clearly while walking to your front door. Target 1,000 to 1,500 lumens for this objective. Utilize dusk-to-dawn sensors for this application. These sensors keep the light glowing softly all night long. You must ensure a softer light spread here. Intense, focused beams will blind drivers pulling into the garage.
Task lighting presents a completely different challenge. Many homeowners use their driveways for vehicle maintenance or evening DIY projects. Mechanical tasks demand extreme visibility. You often need 5,000 lumens or more to see intricate engine components safely. However, this level of brightness creates severe problems if installed permanently. A massive 6,000-lumen commercial fixture mounted on your garage will undoubtedly create neighbor friction.

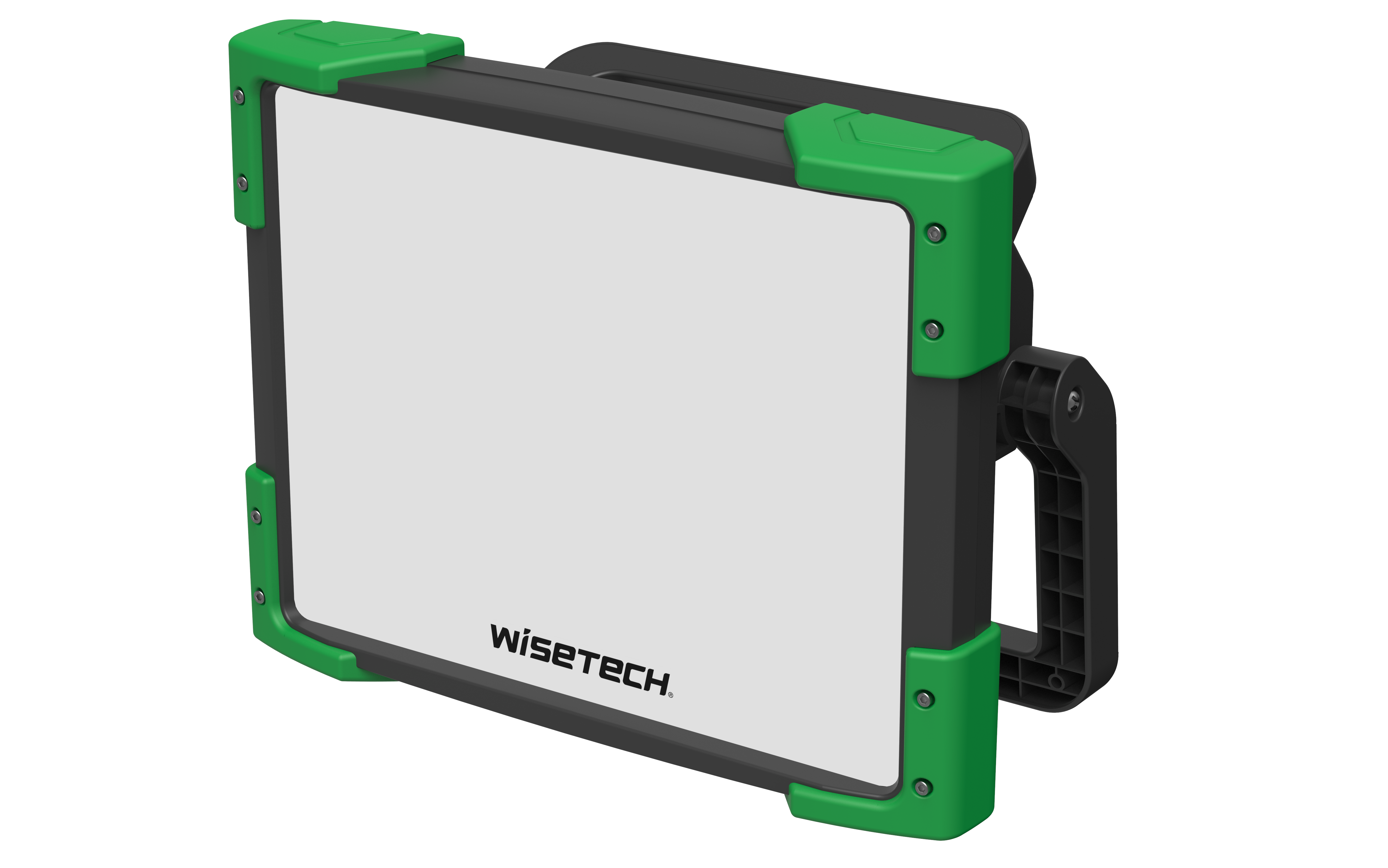

You must apply a strategic decision lens here. Do not ruin your daily residential lighting setup for occasional mechanical tasks. Instead, install a standard 2,000-lumen permanent fixture for daily security. When you need to change your oil or rotate tires, deploy a portable Outdoor LED Work Light. This temporary solution puts massive illumination right on your tools. It protects your neighbors from permanent glare while giving you the exact task lighting you require.
Shoppers often assume maximum brightness equals maximum security. This dangerous misconception ruins many residential lighting layouts. Blasting your property with excessive brightness creates severe operational hazards. Over-illumination actively works against your property's safety mechanisms.
Security camera washout ranks as the most critical risk. Homeowners frequently mount high-lumen fixtures directly next to their surveillance cameras. The intense light reflects violently off concrete driveways. It bounces harshly off parked car windshields. This intense reflection disables the camera’s dynamic range completely. The image sensor becomes overwhelmed by the bouncing light. Your expensive 4K security camera suddenly records nothing but a glowing white blur. Intruders' faces become completely obscured. To prevent this, keep lumen counts moderate near lenses.
Light trespass causes severe compliance headaches. Most local municipal ordinances heavily restrict light spillage onto adjacent properties. Your local zoning board actively regulates how many foot-candles can cross your property line. Exceeding 5,000 lumens on a standard suburban lot almost guarantees a violation. Angry neighbors will report the intrusion. Code enforcement officers can issue citations. You must evaluate fixtures featuring adjustable baffles or mechanical shields. These shields physically block light from traveling sideways into bedroom windows.
The glare factor also undermines physical security. A single, blazing 5,000-lumen source seems secure. However, it creates deep, harsh shadows behind vehicles and bushes. Human eyes struggle to adjust quickly between the blinding glare and the pitch-black shadows. Burglars easily hide inside these artificially created dark spots. Better security relies on even distribution. Two separate 2,500-lumen heads angled apart provide vastly superior coverage. They cross-illuminate the area perfectly. This eliminates dark hiding spots entirely without causing blinding glare.
Smart buyers look past the basic brightness rating. Several critical technical specifications determine how a fixture actually performs in the real world. Ignoring these secondary criteria leads to highly disappointing installations.
Color temperature dictates the entire feel of your exterior space. Manufacturers measure color temperature using the Kelvin (K) scale. Many cheap brands push ultra-cool ratings above 6000K. You must avoid these. They appear extremely harsh. They cast a bluish, unnatural hue resembling a sterile hospital room. Instead, target the 4000K to 5000K range. This sweet spot produces crisp, clear visibility. It renders colors accurately for your security cameras without causing excessive harshness.
Beam angle determines your light spread pattern. You must match the angle to your property shape. A narrow spot angle stays under 45 degrees. Narrow spots push concentrated light deep down long, narrow rural driveways. Conversely, a wide flood angle ranges from 90 to 120 degrees. Wide floods wash standard, square suburban driveways evenly from edge to edge.
Beam Angle Range | Spread Type | Best Driveway Application | Primary Benefit |
|---|---|---|---|
Under 45° | Narrow Spot | Long, narrow rural paths | Pushes light further down the pavement |
45° – 90° | Medium Spread | Standard two-car layouts | Balances distance and width evenly |
90° – 120° | Wide Flood | Short, wide parking pads | Covers maximum width efficiently |
Ingress Protection (IP) ratings matter immensely for exterior electronics. Driveway fixtures face punishing environmental conditions daily. They endure driving rain, freezing snow, and heavy wind-blown dust. You must require at least an IP65 rating for any exposed installation. The "6" guarantees complete dust-tight protection. The "5" ensures resistance against low-pressure water jets from any direction. Installing anything below IP65 risks premature electrical failure during severe storms.
Purchasing the perfect fixture only solves half the equation. Execution determines your final success. Mounting height and aiming angles dramatically alter how lumens perform on the ground. You must adapt your installation strategy to your specific architecture.
The height-to-lumen ratio dictates your purchasing decision. Light naturally dissipates as it travels through the air. Mounting a fixture at eight to ten feet keeps the energy concentrated. At this moderate height, 1,500 to 2,000 lumens is entirely sufficient. The light easily reaches the pavement. However, mounting high on second-story eaves changes the math completely. A 15 to 20-foot mounting height introduces massive light dissipation. You must push 3,000+ lumens from this elevation just to achieve the same ground-level foot-candles.
Angling requires strict discipline. Amateurs often point exterior heads straight out horizontally. This mistake shoots valuable illumination directly into the street. It wastes energy and blinds passing drivers. You must implement strict angling best practices. Always tilt fixtures downward at a crisp 45-degree angle. This geometry directs the output precisely onto your pavement where you actually need it. It creates a defined pool of safety. Proper tilting prevents obnoxious light from invading neighboring windows while maximizing your functional surface visibility.
Successful driveway lighting relies entirely on precise sizing and strategic placement. Simply buying the highest lumen capacity available rarely solves security issues. In most cases, excessive brightness creates far more problems than it solves. It ruins camera footage and angers your neighbors. You must take a measured, calculated approach to illuminating your property.
Before purchasing your next fixture, take five minutes to measure your driveway square footage. Determine exactly how high you plan to mount the unit. Use these two variables to calculate your precise target baseline. Always choose a fixture featuring adjustable dual or triple heads. This allows you to dial in the exact coverage needed while eliminating dark hiding spots. By matching your output to your specific daily needs, you will achieve professional-grade security without compromising your neighborhood's nighttime environment.
A: Target 2,000 to 3,000 lumens paired with a sudden motion-sensor trigger. This sudden burst is highly effective for startling and deterring trespassers. Going beyond 4,000 lumens for standard residential homes causes more harm than good, often causing severe glare and washing out your own security cameras.
A: This is heavily discouraged for residential areas. Commercial fixtures produce excessive output causing severe light trespass onto neighboring properties. They create blinding glare for street traffic and frequently violate local residential zoning codes regarding acceptable exterior foot-candle limits.
A: High-end solar units can successfully reach 1,500 to 2,000 lumens on a full charge. However, battery output drops significantly in winter or after consecutive cloudy days. Hardwired fixtures are strictly recommended if you require guaranteed, consistent security illumination year-round.
A: Generally yes, higher output demands more power. However, modern LEDs are exceptionally efficient compared to old halogens. Focus on the lumens-per-watt ratio (efficacy) when evaluating spec sheets. A highly efficient fixture delivers massive brightness while drawing minimal wattage from your electrical panel.
