Upgrading your outdoor illumination requires precise electrical planning. You cannot afford to guess the added electrical load. Upgrading to high-output lighting requires knowing exactly how much load you add to your system. Installing a multi-fixture array demands the same rigorous mathematical calculation. Overloading a circuit frequently leads to tripped breakers. It also introduces severe compliance failures and creates potential safety hazards. Installers face these issues when they skip baseline load evaluations.
We will provide a clear, dependable framework. You will learn to calculate the exact amperage draw of commercial and residential fixtures. You will factor in voltage variables and apply standard safety margins. You will also learn to navigate real-world installation constraints safely. This guide gives you the precise tools needed for a reliable, compliant setup.
The Baseline Formula: Amperage is determined by dividing Wattage by Voltage ($A = W / V$).
The 80% Safety Rule: National Electrical Code (NEC) standards dictate that circuits should not exceed 80% of their maximum capacity for continuous loads (e.g., lighting running for 3+ hours).
LED Efficiency: A modern LED Flood Light draws up to 80% fewer amps than legacy halogen or metal halide fixtures of equivalent brightness.
Hidden Variables: Inrush current (startup spikes) and Power Factor (PF) must be factored into commercial installation planning to avoid nuisance tripping.
Electricians rely on a fundamental formula to determine lighting loads. They use an application of Ohm’s Law. For power calculations, the equation is remarkably simple. You divide Watts by Volts to find Amps. The basic equation always looks like this: Watts / Volts = Amps. This gives you the precise current pulling through the wires.
Your facility's power supply directly changes the total amperage draw. A standard residential circuit runs on standard 120V power. Commercial buildings often use robust 240V or 277V systems. Landscape layouts frequently rely on safer 12V low-voltage systems. Higher voltage means lower amperage for the exact same wattage. You must identify your system voltage before buying any fixtures.
Let us look at a standard calculation example. Imagine you install a 150-watt fixture. You wire it to a typical 120-volt residential circuit. You divide 150 by 120. The fixture draws exactly 1.25 amps. This straightforward math gives you a solid baseline for single-unit installations. You repeat this process for every light you add.
We must note a transparent assumption regarding this math. This basic calculation assumes a perfect power factor of 1.0. A perfect power factor means the fixture uses electrical power efficiently. It serves as a safe baseline for initial load estimates. We will explore how varying power factors affect actual loads later in this guide.
Best Practice: Always verify the incoming line voltage with a digital multimeter. Do not assume your commercial panel supplies exactly 240V. Small voltage drops affect your final amperage calculations.
Modern lighting technologies drastically alter your circuit demands. We compare the current draw of traditional halogen lighting against modern alternatives. High-intensity discharge (HID) lamps consume massive amounts of power. Upgrading these legacy fixtures highlights immense energy savings. It also reveals significant circuit-freeing potential for your panel. A modern LED Flood Light draws drastically fewer amps while producing superior lumens.
Below is a quick-reference matrix. It compares different wattages across common voltage scenarios. Use this data to estimate your system limits quickly.
Amperage Draw Quick-Reference Matrix
Fixture Wattage & Type | Voltage System | Estimated Amperage Draw | Application Notes |
|---|---|---|---|
50W LED | 120V (Standard) | 0.42 Amps | Ideal for residential driveways. |
50W LED | 12V (Low-Voltage) | 4.16 Amps | Common in landscape architecture. |
200W LED | 120V (Standard) | 1.66 Amps | High-output commercial facade lighting. |
200W LED | 240V (Commercial) | 0.83 Amps | Efficient high-mast or stadium use. |
300W LED | 120V (Standard) | 2.50 Amps | Maximum output for standard panels. |
300W LED | 240V (Commercial) | 1.25 Amps | Ideal for large-scale parking lots. |

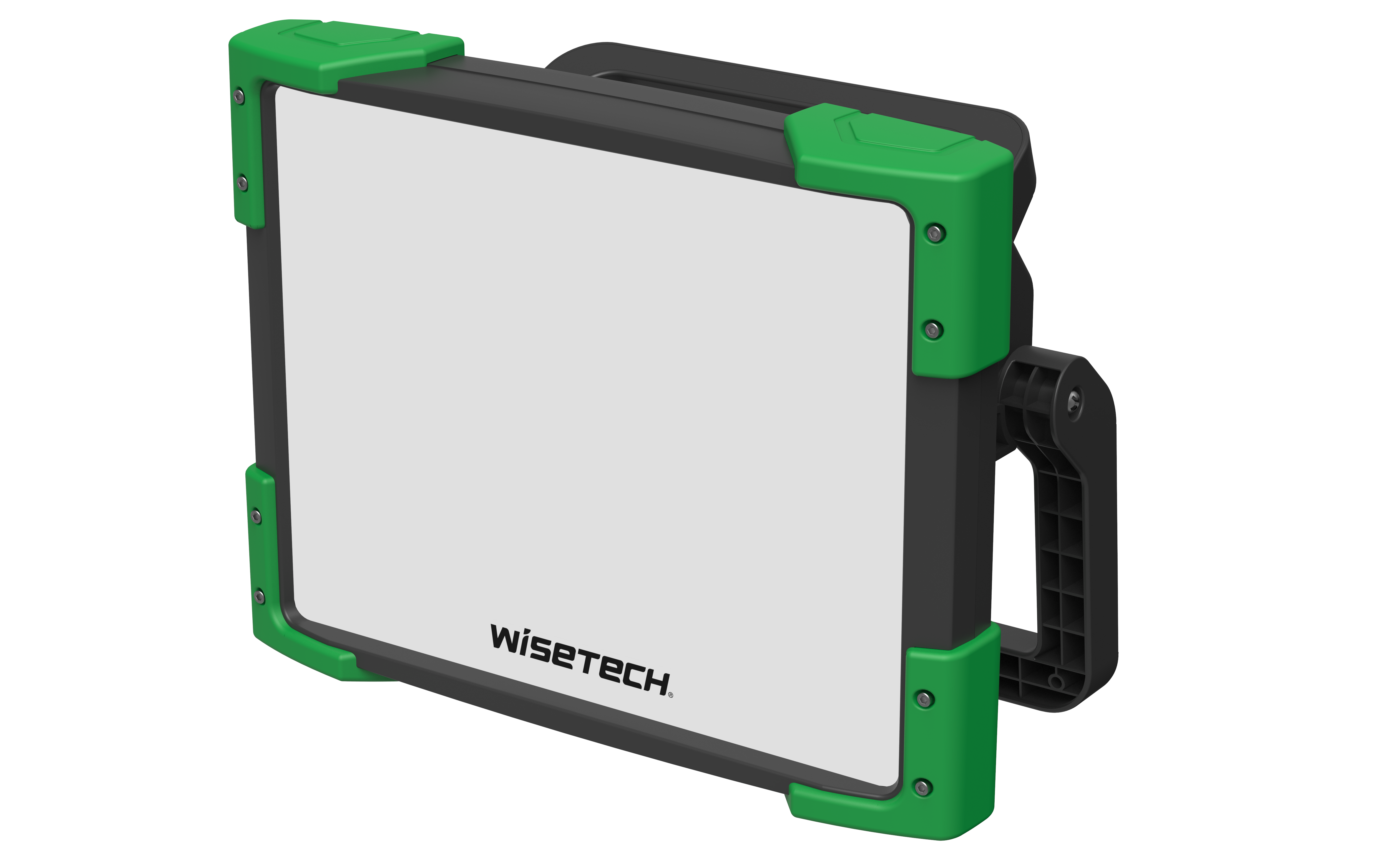

You must also differentiate between installation types. Portable setups differ from permanent installations. A plug-and-play LED Work Light connects to standard temporary receptacles. You manage these loads dynamically on busy job sites. Hardwired outdoor architectural fixtures require dedicated circuits. You wire these permanently into the main building panel. They demand stricter continuous load planning to remain compliant.
Facility managers frequently ask a specific business question. "How many lights can I safely daisy-chain to a single breaker?" You must solve this business problem systematically. You cannot simply divide the total breaker size by the fixture amperage. That approach leads to immediate code violations and safety risks.
The National Electrical Code (NEC) mandates a specific safety standard. We call this the continuous load compliance rule. Any load running for three or more consecutive hours is continuous. Lighting arrays almost always fall directly into this category. The 80% rule states you cannot exceed 80% of the breaker's maximum capacity.
This rule strictly limits your usable amperage. Consider a standard 15-Amp breaker. It yields exactly 12 Amps of usable capacity. Now consider a standard 20-Amp breaker. It yields exactly 16 Amps of usable capacity. You must plan your entire array within these reduced thresholds.
Here is a step-by-step evaluation framework for your system calculations:
Count the exact number of fixtures you plan to install on the run.
Multiply this number by the wattage per fixture to find total wattage.
Divide your total wattage by the circuit voltage to find total continuous amps.
Calculate 80% of your chosen breaker's maximum rating.
Verify your total continuous amps remain strictly below the 80% breaker threshold.
Common Mistake: Installers often forget other devices sharing the circuit. Always verify if security cameras or sensors draw power from the same breaker before finalizing your light count.
Electricians frequently report specific pitfalls during commercial rollouts. You must address these implementation realities early in your planning. Paper calculations sometimes fail spectacularly in the field. Hidden variables disrupt seemingly perfect load plans.
The most severe hidden risk is the inrush current threat. LED drivers cause a microsecond spike in current upon startup. This brief surge can reach ten to fifty times the normal operating current. Calculating only steady-state amps creates dangerous false confidence. It frequently leads to tripped breakers when a whole array powers on simultaneously. The steady-state formula simply ignores this instantaneous startup demand.
Power Factor (PF) quality represents the second major hidden risk. Power Factor measures how effectively a device uses incoming alternating current. Low-quality fixtures often feature a PF below 0.7. These inefficient drivers require more apparent power (VA) than actual power (Watts). Consequently, they draw significantly higher actual amps than the basic Watts/Volts formula suggests.
We highly recommend strict evaluation criteria for commercial arrays. Always specify commercial fixtures boasting a PF greater than 0.9. High power factor ratings ensure highly predictable amp loads. They prevent nuisance tripping and maximize your existing circuit capacity. Cheap drivers save money upfront but ruin your electrical load calculations.
Common Mistake: Using standard Type B breakers for large lighting arrays. Commercial installers should specify Type C or Type D breakers. These models handle brief inrush current spikes without tripping.
You must audit your existing infrastructure before purchasing any new equipment. Your facility limits dictate your scalability. Let us assume your current 120V circuit is nearly maxed out. You can often shift to a 240V or 277V fixture instead. If your panel supports it, this shift instantly halves the amperage draw per fixture. This strategy completely bypasses expensive electrical panel upgrades.
You should link specific fixture features to your desired operational outcomes.
Select dimmable drivers if you require load shaving during peak facility hours.
Select low-voltage 12V options for landscape applications. These address safety concerns and minimize required trenching depths.
Choose fixtures offering selectable wattage features. This allows field adjustments if circuit limitations arise unexpectedly.
Use this shortlisting logic checklist before finalizing your buyer decisions. First, verify your existing breaker size and panel capacity. Second, check your existing wire gauge limits. Third, confirm the fixture voltage matches your supply exactly. Next, calculate the total continuous load across all planned fixtures. Finally, buffer your final calculation to accommodate startup inrush spikes.
Knowing exactly how to calculate lighting amperage guarantees a safe installation. It ensures a highly compliant and uninterrupted lighting setup. We explored the baseline mathematical formulas and the critical NEC safety rules. You now understand how voltage directly impacts your overall circuit draw.
Risk mitigation remains your top priority during any electrical project. Emphasize the crucial importance of leaving a 20% safety buffer on all circuit calculations. Always verify your final equipment specifications closely. Consult licensed electrical contractors before hardwiring new high-output arrays.
Your next step is simple and action-oriented. Review the detailed product specification sheets for your desired fixtures. You can also contact a specialized sales engineer today. They will help calculate the exact load requirements tailored to your facility's specific layout.
A: A 50-watt fixture on a 12-volt system draws approximately 4.16 amps. You calculate this by dividing 50 watts by 12 volts. Low-voltage landscape lighting pulls higher amperage than standard voltage systems. Ensure your transformer and wiring handle this increased current safely.
A: A 300-watt fixture running on a standard 120-volt residential circuit draws exactly 2.5 amps. You calculate this by dividing 300 by 120. This leaves ample headroom on a typical 15-amp or 20-amp breaker for additional fixtures.
A: Breakers often trip due to inrush current. LED drivers demand a massive, instantaneous power spike during the first microsecond of startup. If multiple fixtures turn on simultaneously, this micro-spike exceeds the breaker's trip curve. Upgrading to Type C or Type D breakers usually resolves this.
A: Yes, but you must calculate shared loads carefully. A standard 20A job site receptacle provides 16 amps of continuous power. If a heavy saw draws 12 amps, you have 4 amps remaining. A typical LED portable fixture draws under 1 amp, making this safe.
