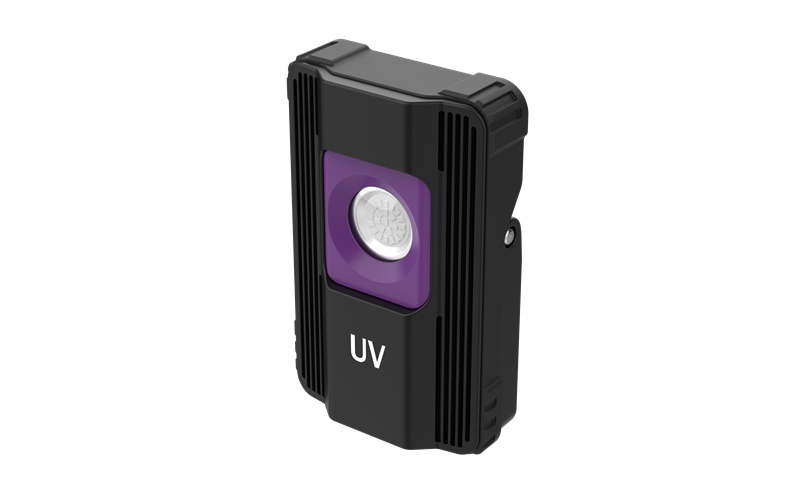

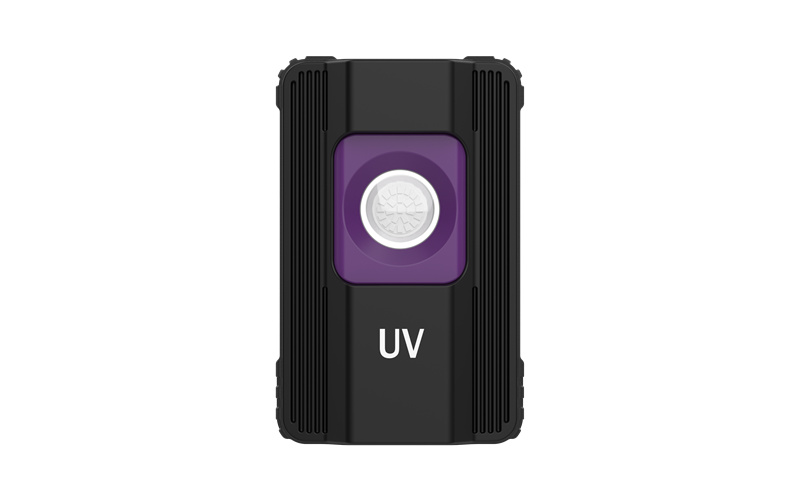

395nm Rechargeable and Flexiable LED UV Light for Curing

Short Description:

The portable flexible UV light is an extremely powerful LED UV curing lamp for fast curing of larger cure areas. It is supplied with 24 UV LEDs in 2 steps with a high resistant solvent lens. High quality lithithum battery allows a 3 hours duration at 100% step. No worry about the charge safety as battery overcharge protection.
The housing is made of sturdy die-casted aluminum and strong plastic, coated with TPR, resistant to strokes, shocks and vibrations. No heat is produced on the panel or the paint during the curing, allowing use on plastic parts and other heat sensitive material. And magnetic standard supports the light to be placed in 6 different positions to obtain the desired UV cure angle, and fix to tripod by the hole built-in.
5V 1A USB output as an additional power bank function for mobile devices. Type-c charging port with cover protection from dust and water. IP65 makes the work light can be used widely indoor and outdoor.

Send email to us

Product Detail

Product Tags

Product Certificate

Product Parameter

Art. number	S20BS-CS01U
Power source	36 SMD
Rated power (W)	17
Luminous flux(±10%)	/
Color temperature	395nm
Color rendering index	/
Bean angle	100°
Battery	18650 11.1V 2600mAh
Operating time(approx.)	2.5H/2000lm
Charging time(approx.)	3H
Charging voltage DC (V)	5V
Charging current (A)	Max. 3A
Charging port	TYPE-C
Charging input voltage (V)	100 ~ 240V AC 50/60Hz
Charger included	No
Charger type	EU/GB
Switch function	50%-100%-off
Protection index	IP65
Impact resistance index	IK08
Service life	25000 h
Operating temperature	-10°C ~ 40°C
Store temperature:	-10°C ~ 50°C

Poduct Details

Art. number	S20BS-CS01U
Product type	UV light
Body casing	ABS+Aluminum+TRP+PC
Length (mm)	124
Width (mm)	52
Height (mm)	194
N.W. per lamp (g)	813
Accessory	Lamp, manual,1m USB -C cable
Packaging	color box
Carton quantity	10 in one

Product Application/Key Feature

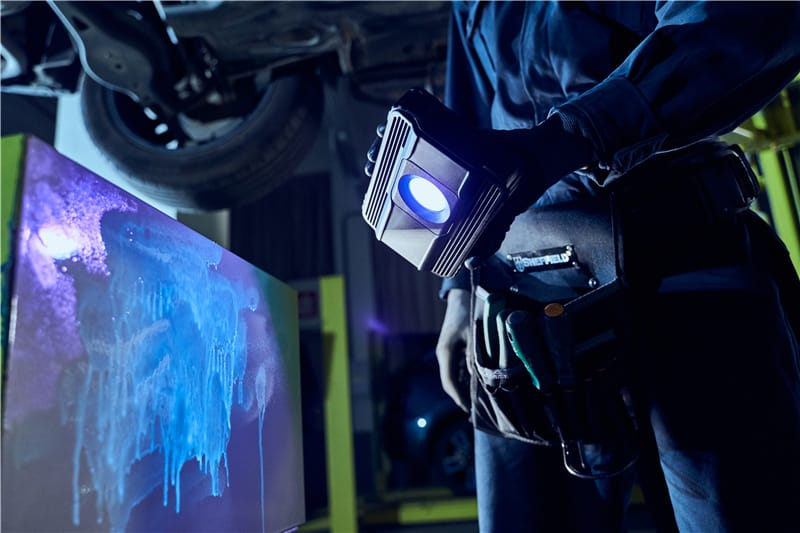

Rechargeable and Flexiable LED UV Light for Curing (1)

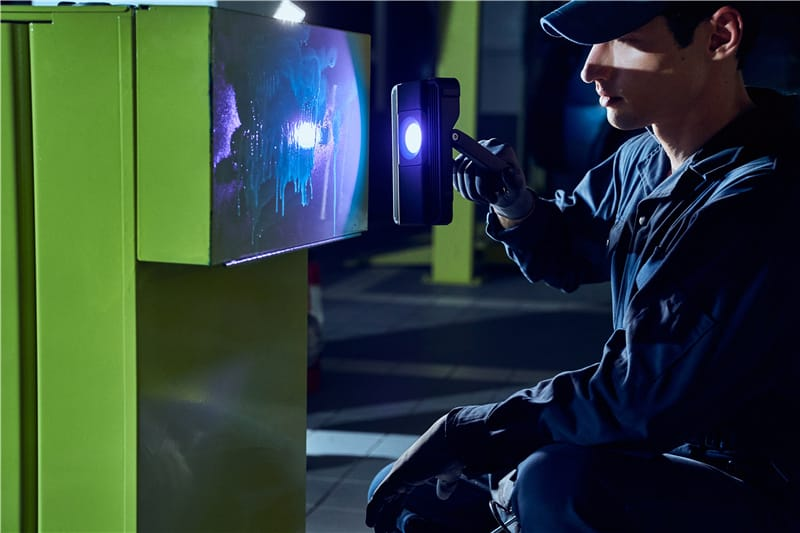

Rechargeable and Flexiable LED UV Light for Curing (2)

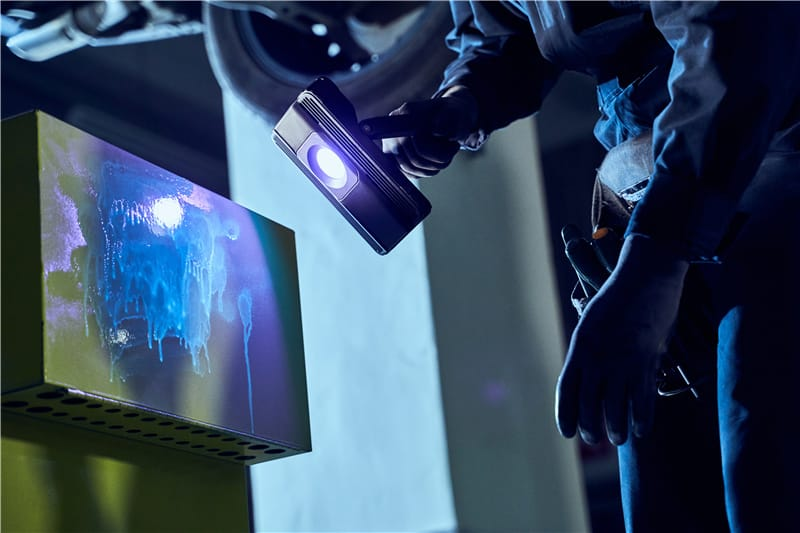

Rechargeable and Flexiable LED UV Light for Curing (3)

Conditions

Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port

Accesorry

2 meter tripod

FAQ

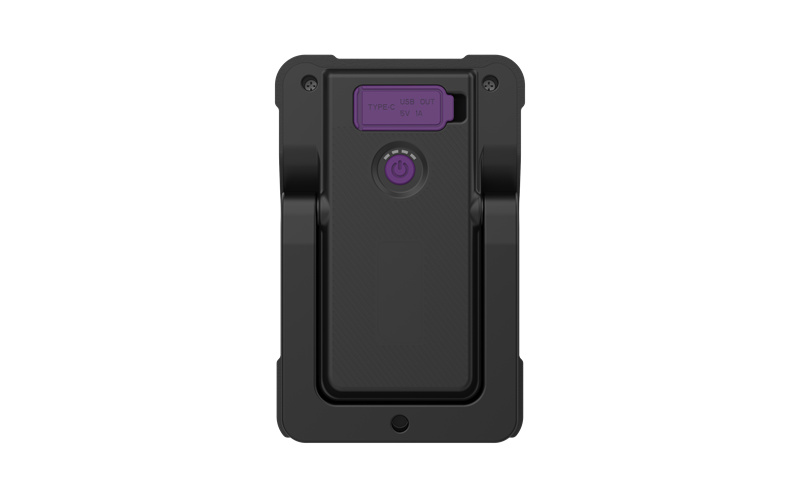

Q: Is there charging indicator built-in?
A: Yes, total 4 LEDs around the back side on/off switch.

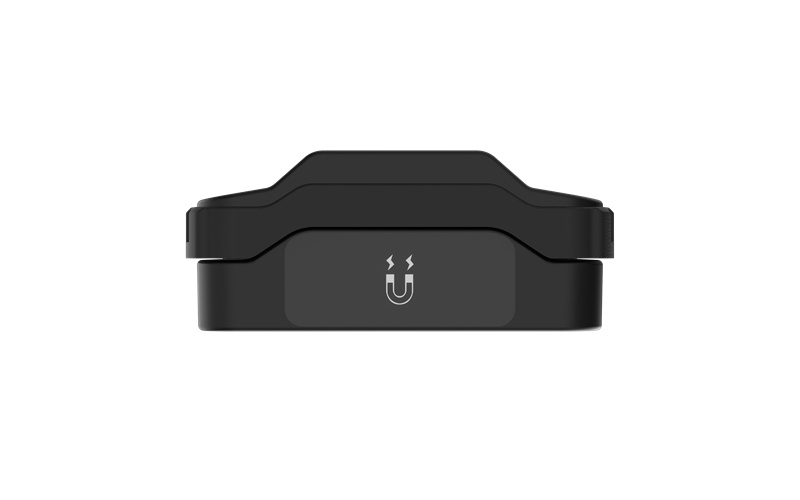

Q: Can we ask to remove the magnets of stand?
A: Yes, the magnets can be removed.

Q: Whether it is OK to use 5V 1A or 5V 2A to charge this work light？
A: Yes, but charging time will be extended.

Q: How to use the power bank function？
A: Press the small round button around the Type-C charging port and then plug the USB cable to socket, then you can connect the mobile devices for charge.
