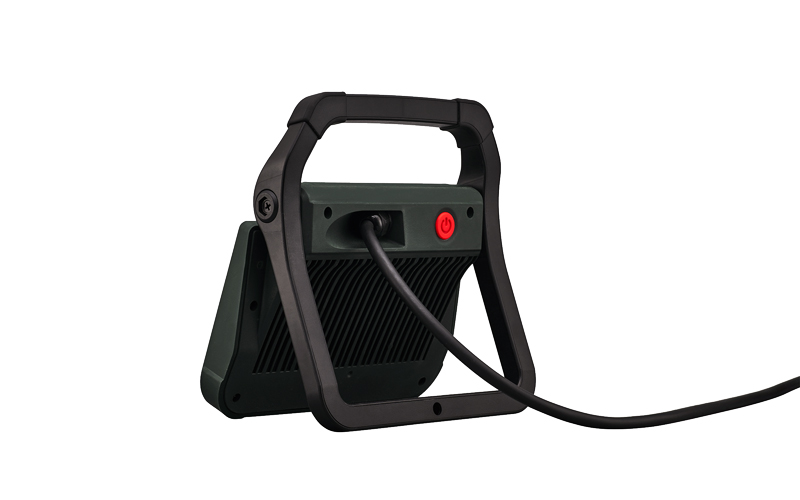

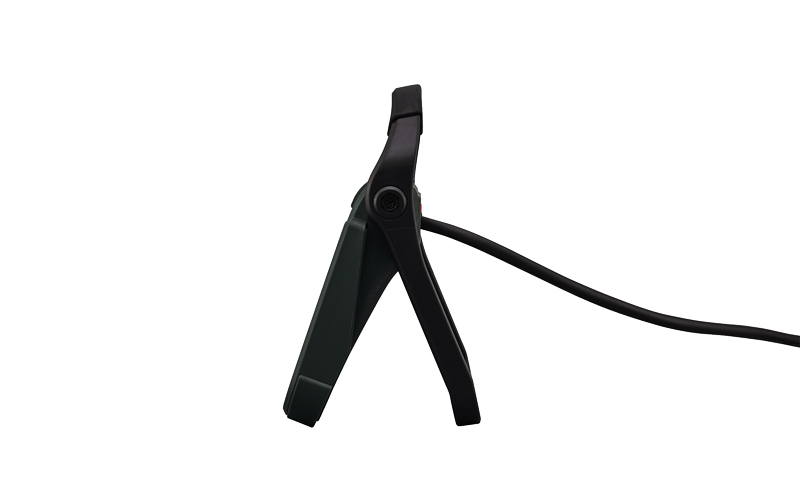

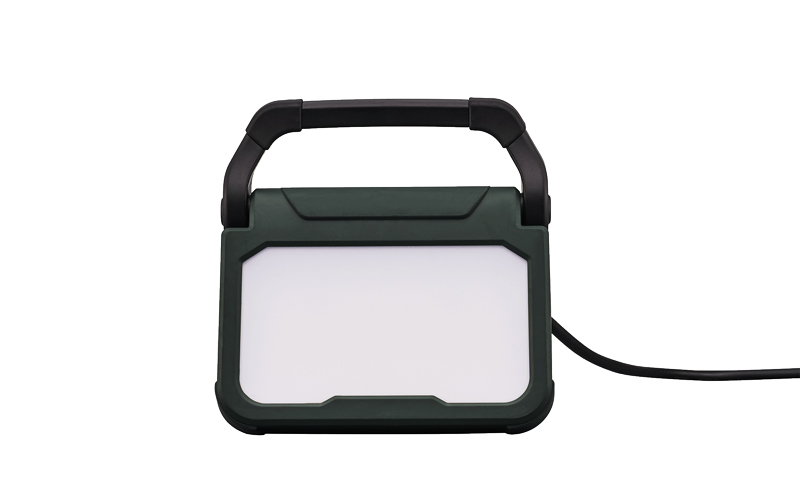

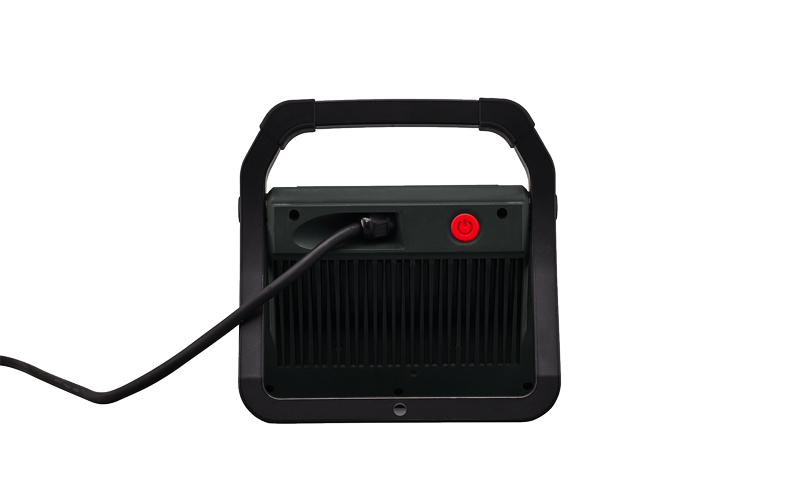

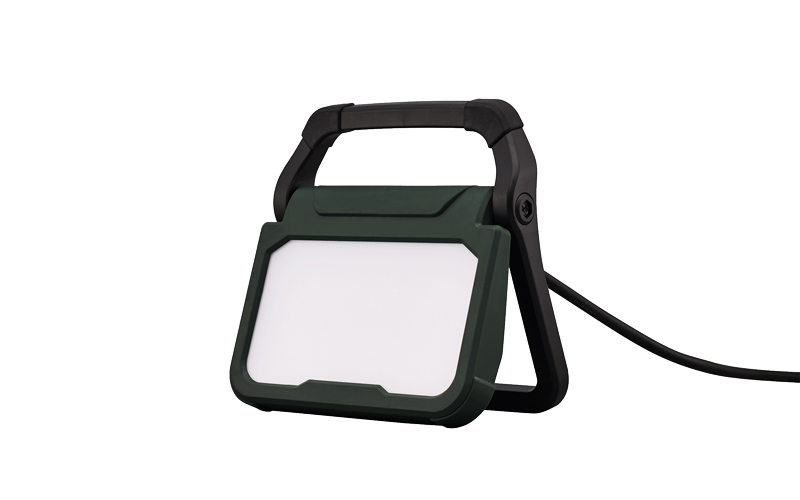

24W AC is a part of frosted flood light ECO, a cost-effective series with lightweight shell design. Simple and slim design coming with the front TPR coating housing, the lamp can be well protect from destroy. One-piece handle and bracket for 30 degrees, 60 degrees, 90 degrees and 116 degrees angles of rotation, which allow this lamp to be used in a curved surface, as its stand can well support this portable work light.
PC plate reflector lets the illumination softer, comfortable for eyes. 24W AC with 2000lm for optimum light distribution and large-area illumination with glare-free, can well support the workers’ daily work.
| Art. number | S25DF-H02A |
| Power source | 44 x SMD2835 |
| Luminous flux | 2000lm |
| Operating voltage | 220- 240V AC 50/60Hz. |
| Rated power (W) | 24W |
| Bean angle | 110° |
| Color temperature | 5700K |
| Cable | 2 meter H07RN-F 2G1.0mm² |
| Plug type | Socket/CH/GB |
| Number of sockets | N/A |
| Socket outlet type | N/A |
| Switch function | On-off |
| Protection index | IP65 |
| Impact resistance index | IK08 |
| Color rendering index | 80 |
| Energy efficiency class | F |
| Service life | 25000 h |
| Operating temperature | -20°C ~ 40°C |
Store temperature: | -20°C ~ 50°C |
| Art. number | S25DF-H02A |
| Product type | Frosted flood light ECO |
| Body casing | ABS+PC+TRP |
| Length (mm) | 204 |
| Width (mm) | 52 |
| Height (mm) | 208 |
| N.W. per lamp (kgs) | 1160 |
| Accessory | Lamp, manual |
| Packaging | color box |
| Carton quantity | 4 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
2 meter tripod
Q: Whether it is waterproof and dust-proof?
A: Yes, it is IP65, can well protect the lamp against low water pressure jet from any angle and it is dust-proof.
Q: Can the light to be fixed on the tripod?
A: Of course it can, easily to fix the ECO series to the tripod through the whole in the bracket, and no doubt it is OK to adjust the light head angle.
Q: Do you have higher power version?
A: Yes, we have 4500 lumen items, with and without socket, you can freely link to the recommendation to see the details.
Q: How long is the cable?
A: 2 meters is our standard, but it depends on your demand, could be 3 meters, 5 meters, even longer.
Q: Can we have sample for test？
A：No doubt, you can just contact with our team for sample details.
Other sizes in the same series: DF, other DC, AC models
