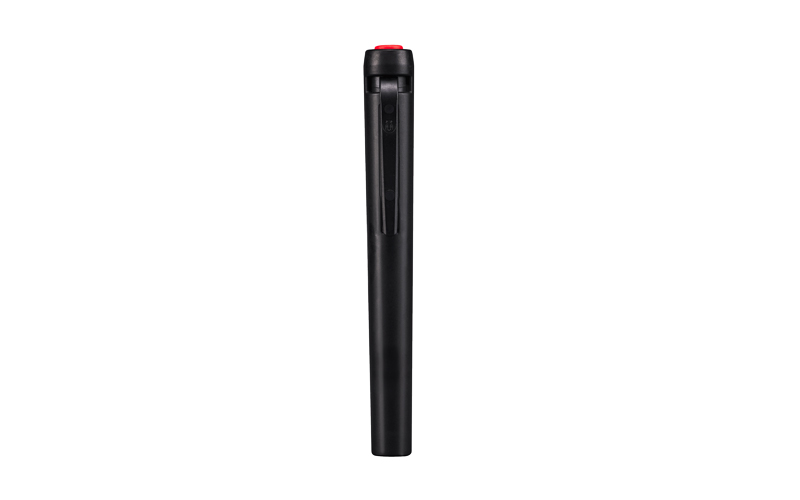

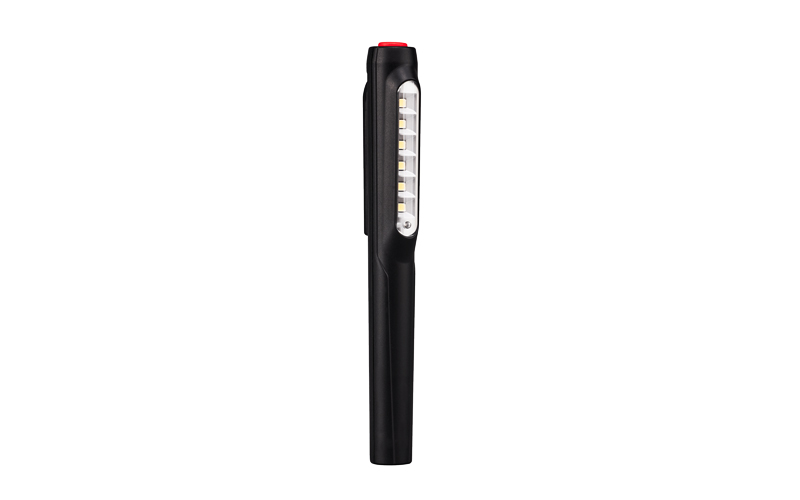

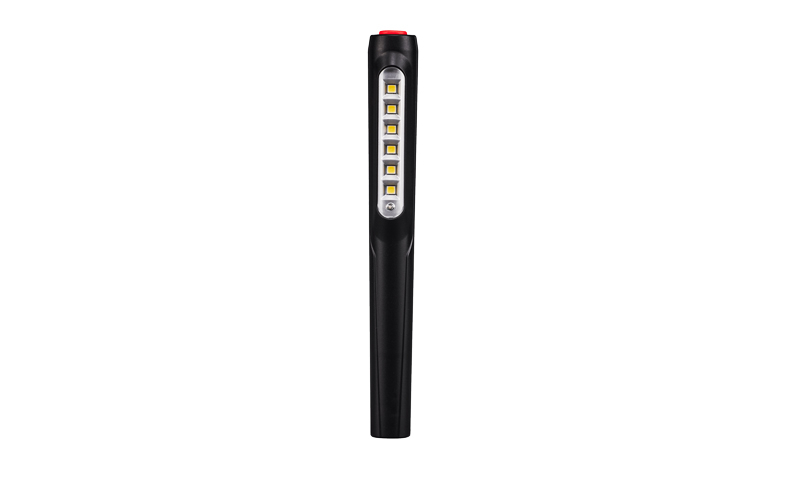

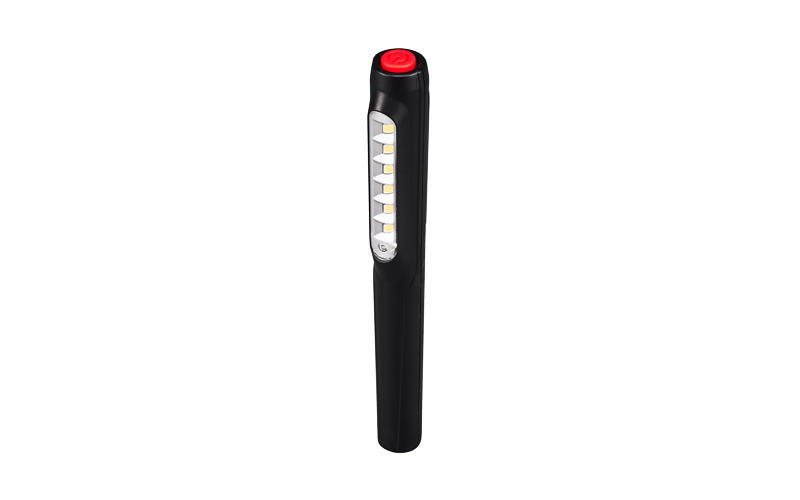

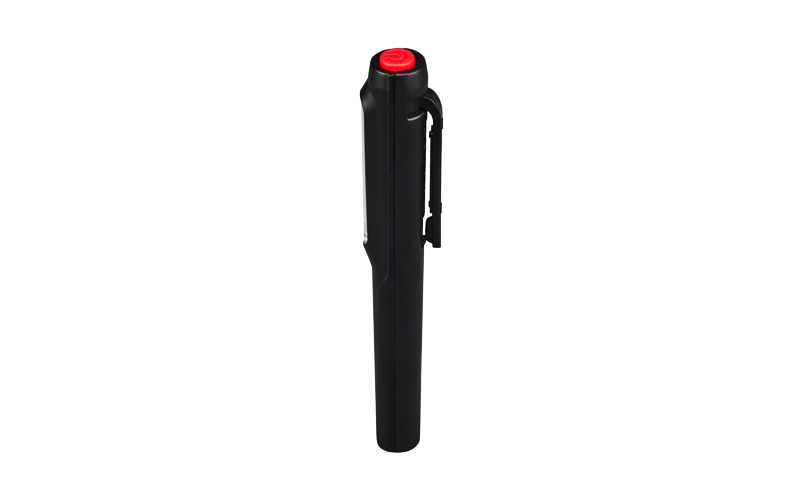

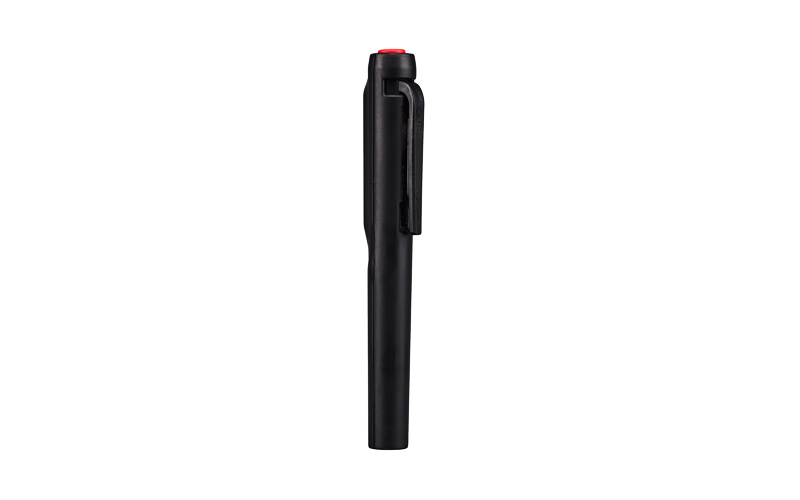

Generation I rechargeable penlight has 2 light modes. Switch the top button to turn on he bottom torch and front main light. Rotatable clip integrated with magnet for more occasions and hands free.
Robust plastic housing is shock-resistant. Push-pull lid can protect the charging port from dust. Charging indicator to display the charging status, it is red when the penlight is charging, and after full charging, the indicator becomes green. The color of the lamp body can be defined according to the brand color.
| Art. number | P02PE-N03 |
| Power source | 6 x SMD (main) 1x SMD(torch) |
| Rated power (W) | 1.2W(main) 1W(torch) |
| Luminous flux(±10%) | 150lm (main), 100m (torch) |
| Color temperature | 5700K |
| Color rendering index | 80 |
| Bean angle | 100°(main) 20°(torch) |
| Battery | 14430 3.7V 650mAh |
| Operating time(approx.) | 2.5H(main) 3H(torch) |
| Charging time(approx.) | 2.5H |
| Charging voltage DC (V) | 5V |
| Charging current (A) | 1A |
| Charging port | Micro USB |
| Charging input voltage (V) | 100 ~ 240V AC 50/60Hz |
| Charger included | No |
| Charger type | EU/GB |
| Switch function | Torch-main-off |
| Protection index | IP20 |
| Impact resistance index | IK07 |
| Service life | 25000 h |
| Operating temperature | -10°C ~ 40°C |
Store temperature: | -10°C ~ 50°C |
| Art. number | P02PE-N03 |
| Product type | Pen light |
| Body casing | ABS+PMMA+PC |
| Length (mm) | 21 |
| Width (mm) | 29 |
| Height (mm) | 170 |
| N.W. per lamp (g) | 50g |
| Accessory | Lamp, manual,1m USB - Micro USB cable |
| Packaging | color box |
| Carton quantity | 50 in one |
Sample leading time: 7 days
Mass production leading time: 45-60 days
MOQ: 1000 pieces
Delivery: by sea/air
Warranty: 1 year upon goods arrive destination port
N/A
Q: Comparing with P01DP-N02, which one is better?
A: P01DP-N02 is slimmer, but P02PE-N03 clip is rotatable. Specs. are almost the same.
Q: Where to put the brand name?
A: We have customer put the brand name in the front casing under LED window, also it is OK to print a small logo besides the clip.
